71-72 GM A-BODY CENTER LINK,IDLER,PITMAN,TIE ROD LINKAGE,BALL JOINT,& MANUAL BOX

Brand New Steering Kit with Manual Steering Box, Tie Rods, and Ball Joints for the applications listed below.  These are brand new items produced by Southwest Speed Inc.  They replace the OEM parts and work perfectly with all connecting components in the correct application.

Applications:

• This kit fits the following cars:
  • 1971-72 Chevy Chevelle, El Camino, Malibu, & Monte Carlo
  • 1971-72 GMC Sprint Trucks
  • 1971-72 Buick Skylark & Special (RWD)
  • 1971-72 Oldsmobile Cutlass, F85, Vista Cruiser, 4-4-2, & Calais (RWD)
  • 1971-72 Pontiac GTO, Lemans, Grand Am, Grand Lemans, Tempest, & T37
  • 1971-72 Pontiac Grand Prix

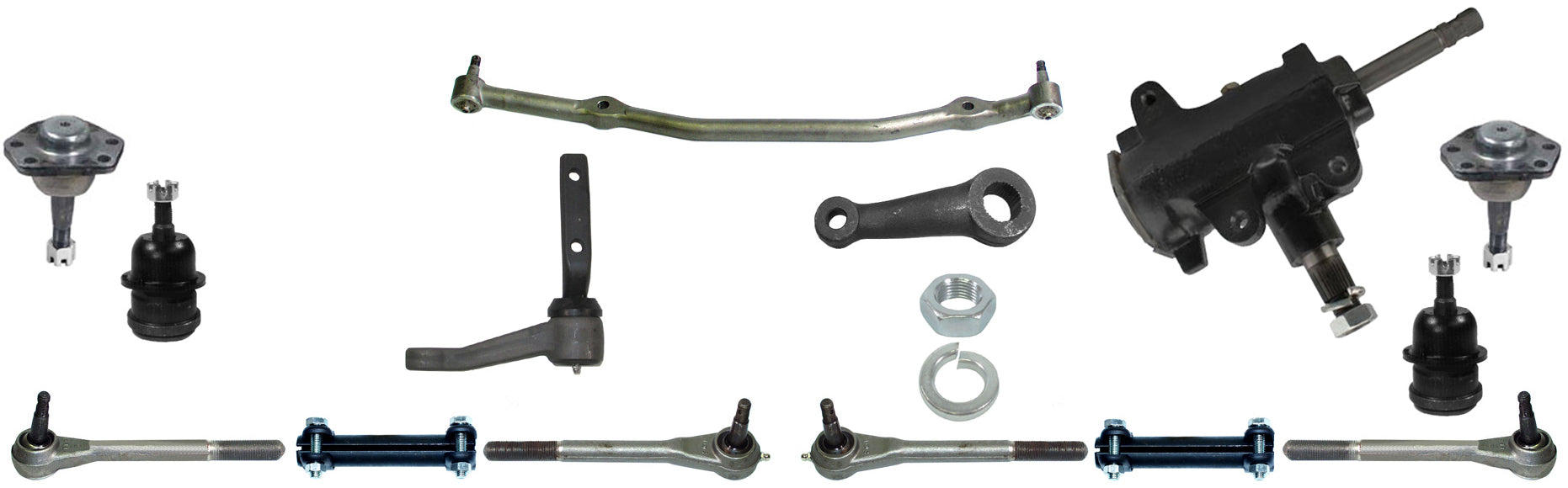

Includes:

• GM 525 Manual Steering Box (Part #105-3013)
  • 25:1 Ratio
  • 6.25 Turns (lock-to-lock)
  • 3/4"-30 Splines
• Drag Link / Center Link (Part #107-227)
  • Includes grease fittings, nuts, and cotter pins
• Idler Arm (Part #107-251)
  • Includes grease fitting
• Pitman Arm (Part #107-164)
• Pitman Arm Nut & Washer Set (Part #107-1400)
• 2 - Inner Tie Rod Ends (Part #105-8501)
  • Includes grease fitting, nut, and boot
• 2 - Outer Tie Rod Ends (Part #105-8511)
  • Includes grease fitting, nut, and boot
• 2 - Tie Rod Adjusting Sleeves (Part #105-890)
  • Includes bolts and nuts
• 2 - Upper Ball Joints (Part #101-0153)
  • Includes grease fitting and nut
• 2 - Lower Ball Joints (Part #101-011)
  • Includes grease fitting and nut
