63-64 IMPALA CENTER LINK,IDLER,PITMAN,TIE ROD LINKAGES,BALL JOINTS,MANUAL & 605

Brand New Steering Kit with Tie Rods, and Ball Joints for a GM Manual and 605 Power Steering Conversion on the applications listed below.  These are brand new items produced by Southwest Speed Inc.

The "Small GM Metric" Power Steering Box is commonly referred to as a 605 series Saginaw box.  It began being used in 1978 and was used from that point forward on about 1/2 of all GM cars. This box is distinct for its round, ring-retained housing cover, as opposed to the square housing cover that other GM Power Steering boxes have.  This Small 605 Power box is a popular addition to these cars.

Applications:

• This kit fits the GM Manual and 605 Small GM Metric Power Steering Box and stock Spindles on the following cars:
• 1963-1964 Chevy Impala
• 1963-1964 Chevy Bel Air
• 1963-1964 Chevy Biscayne

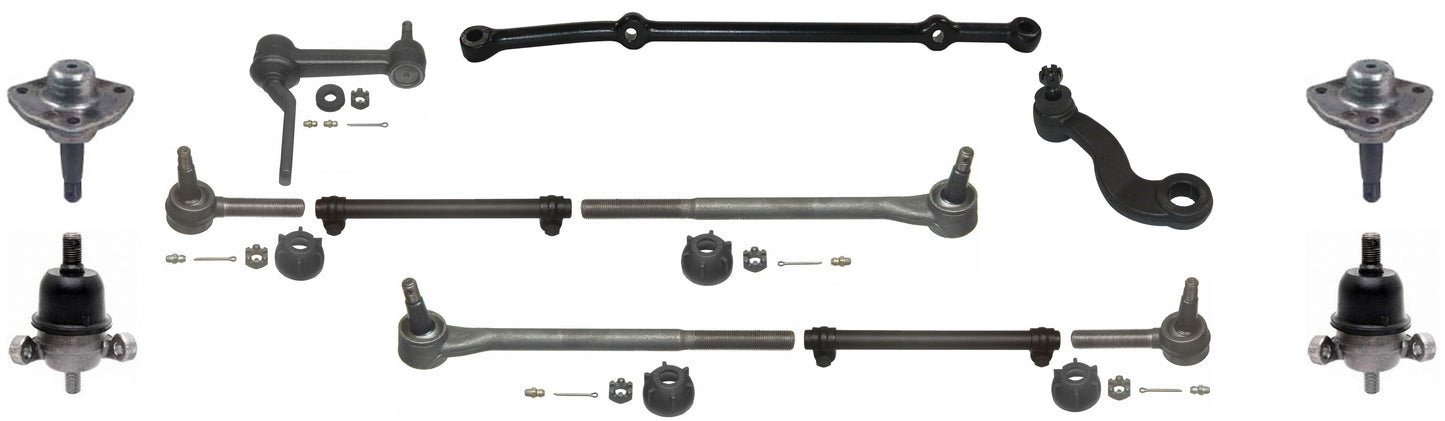

Includes:

• Drag Link / Center Link (Part #107-2237)
• Pitman Arm (Part #107-1450)
  • Fits the 605 Small GM Metric Power Steering boxes
• Idler Arm (Part #107-2480)
  • Includes grease fittings, nut, and boot
• 2 - Inner Tie Rod Ends (Part #105-8514)
  • Includes grease fitting, nut, and boot
• 2 - Outer Tie Rod Ends (Part #105-8515)
  • Includes grease fitting, nut, and boot
• 2 - Tie Rod Adjusting Sleeves (Part #105-8793)
  • Includes bolts and nuts
• 2 - Upper Ball Joints (Part #101-0151)
• 2 - Lower Ball Joints (Part #101-0102)

n our store, we sell these parts individually and in kits; lower ball joints, upper ball joints, center links/drag links, idler arms, pitman arms, and tie rod ends and adjusters.
