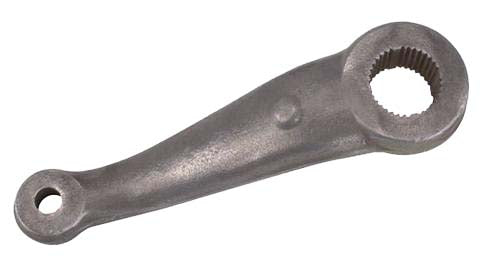

PITMAN ARM,78-88,BIG POWER,6 7/32" C-C

Southwest Speed Large-Spline Power Steering Pitman Arm for Saginaw 700-Series “Big GM Power” & Delphi 600-Series Power Steering Boxes, 1 1/8"-32 Spline (Part #107-176).

This Southwest Speed power steering pitman arm is designed for compatible 1978–1988 GM A-Body and G-Body center links when used with a Saginaw 700-Series “Big GM Power” and Delphi 600-Series power steering box featuring a 1 1/8"-32 spline pitman shaft.

Fits:

• Buick:
  • 1978–1981 Century
  • 1978–1987 Regal
• Chevrolet:
  • 1978–1987 El Camino
  • 1978–1983 Malibu
  • 1978–1988 Monte Carlo
• GMC:
  • 1978–1987 Caballero
• Oldsmobile:
  • 1978–1981, 1985–1987 Cutlass RWD
  • 1978–1984 Cutlass Calais
  • 1980–1983 Cutlass Cruiser
  • 1978–1980, 1985–1987 Cutlass Salon
  • 1978–1988 Cutlass Supreme RWD
• Pontiac:
  • 1982–1986 Bonneville
  • 1978–1980 Grand Am
  • 1978–1983 Grand LeMans
  • 1978–1987 Grand Prix
  • 1978–1981 LeMans

Notes:

• Fits Saginaw 700-series “Big GM Power” and compatible Delphi 600-series power steering boxes with square 4-bolt housing covers and a 1 1/8"-32 spline pitman shaft.
• Does NOT fit Saginaw 605-series small power steering boxes or 525-series manual steering boxes with round, retaining-ring-style housing cover and a 1"-32 spline pitman shaft. Use part #107-175.

Features:

• Brand new replacement arm
• Designed to replace the original pitman arm in compatible applications
• Large spline steering box connection
• Tapered center-link mounting hole

Specs:

• Type: Pitman Arm
• Steering Box Compatibility: GM 700 Series "Big GM Power" & Delphi 600 Series
• Center-to-Center Length: 6.219"
• Pitman Shaft Hole: 1 1/8"-32 spline
• Center Link Hole Major I.D.: 0.550"
• Center Link Hole Minor I.D.: 0.460"
• Center Link Hole Type: Tapered
