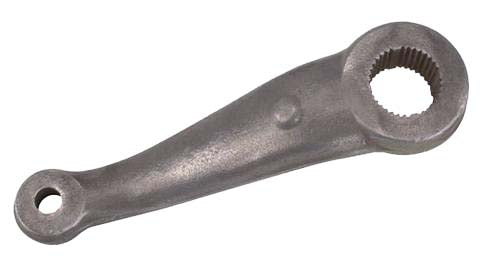

PITMAN ARM,78-88,SMALL POWER,6 7/32" C-C

Brand New Southwest Speed Pitman Arm for GM 525 Series Saginaw Manual & GM 605 Series Saginaw Power Steering Boxes, 1"-32 Small Spline (Part #107-175).

This Southwest Speed pitman arm is an OEM-style replacement designed for compatible GM A-Body and G-Body steering systems. It connects the steering box sector shaft to the center link and is designed for GM steering boxes using the 1"-32 small-spline pitman shaft. The arm measures approximately 6-7/32" center-to-center and features the correct tapered center-link mounting hole on compatible GM steering systems.

Fits:

• Buick:
  • 1978-1981 Century
  • 1978-1987 Regal
• Chevrolet:
  • 1978-1987 El Camino
  • 1978-1983 Malibu
  • 1978-1988 Monte Carlo
• GMC:
  • 1978-1987 Caballero
• Oldsmobile:
  • 1978-1981, 1985–1987 Cutlass RWD
  • 1978-1984 Cutlass Calais
  • 1980-1983 Cutlass Cruiser
  • 1978-1980, 1985-1987 Cutlass Salon
  • 1978-1988 Cutlass Supreme RWD
• Pontiac:
  • 1982-1986 Bonneville
  • 1978-1980 Grand Am
  • 1978-1983 Grand LeMans
  • 1978-1987 Grand Prix
  • 1978-1981 LeMans

Notes:

• Fits Saginaw 605-series small power steering boxes or 525-series manual steering boxes with round, retaining-ring-style housing cover and a 1"-32 spline pitman shaft.
• Does NOT fit Saginaw 700-series “Big GM Power” and compatible Delphi 600-series power steering boxes with square 4-bolt housing covers and a 1 1/8"-32 spline pitman shaft. Use part #107-176.


Features:

• Brand new OEM-style replacement
• Direct replacement design for compatible GM steering systems
• 1"-32 small-spline pitman shaft opening
• Connects the steering box to the center link
• Maintains proper steering linkage geometry when used with the correct steering box and center link
• Precision-sized tapered center-link mounting hole
• Compatible with GM manual and small-power steering configurations

Specs:

• Type: Pitman Arm
• Steering Box Compatibility: GM 525 Series Manual & 605 Series Power
• Pitman Shaft Spline: 1"-32
• Spline Type: Small Spline
• Center-to-Center Length: 6.219"
• Center Link Hole Major I.D.: .550"
• Center Link Hole Minor I.D.: .460"
• Center Link Hole Type: Tapered
