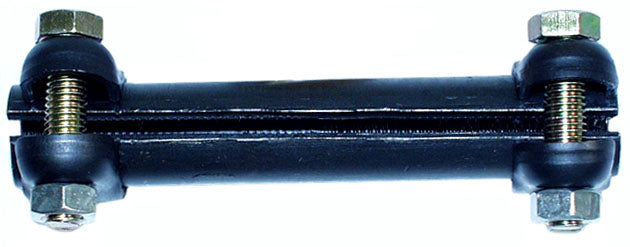

TIE ROD END ADJUSTER SLEEVE

Brand New Southwest Speed Tie Rod End Adjuster Sleeve, 5/8"-18 Threads, 4-1/2" Long (Part #105-892).

This Southwest Speed tie rod adjusting sleeve is an OEM-style replacement designed to connect compatible inner and outer tie rod ends and provide the adjustment necessary to set front wheel toe. The sleeve features 5/8"-18 left- and right-hand internal threads, allowing toe adjustment by rotating the sleeve without removing the tie rod ends.

Fits:

• Buick:
  • 1965-1966 Gran Sport
  • 1968-1969 GS 350
  • 1968-1969 GS 400
  • 1970 GS
  • 1970 GS 455
  • 1964-1970 Skylark
  • 1964-1969 Special
  • 1964-1970 Sportwagon
  • 1978-1981 Century
  • 1978-1987 Regal
• Chevrolet:
  • 1982-1992 Camaro
  • 1964-1970 Chevelle
  • 1962-1967 Chevy II
  • 1964-1970, 1978-1987 El Camino
  • 1964-1970, 1978-1983 Malibu
  • 1970, 1978-1988 Monte Carlo
  • 1962-1967 Nova
  • 1982 S10 Pickup
  • 1983-1995 S10 Pickup 2WD
  • 1983-1994 S10 Blazer 2WD
  • 1995 Blazer 2WD
• GMC:
  • 1978-1987 Caballero
  • 1992-1995 Jimmy 2WD
  • 1982 S15 Pickup
  • 1983-1990 S15 Pickup 2WD
  • 1983-1991 S15 Jimmy 2WD
  • 1991-1995 Sonoma 2WD
• Oldsmobile:
  • 1965-1970 4-4-2
  • 1964-1970, 1978-1981 Cutlass
  • 1978-1984 Cutlass Calais
  • 1980-1983 Cutlass Cruiser
  • 1978-1980, 1985-1987 Cutlass Salon
  • 1967-1970, 1978-1988 Cutlass Supreme
  • 1964-1970 F85
  • 1964-1970 Vista Cruiser
• Pontiac:
  • 1982-1986 Bonneville
  • 1982-1992 Firebird
  • 1978-1980 Grand Am
  • 1978-1981 Grand LeMans
  • 1969-1970, 1978-1987 Grand Prix
  • 1964-1970 GTO
  • 1964-1970, 1978-1981 LeMans
  • 1964-1970 Tempest
  • 1982-1992 Trans Am

Notes:

• Designed to connect compatible inner and outer tie rod ends with 5/8"-18 threads.
• One end of the sleeve accepts a left-hand threaded tie rod end and the opposite end accepts a right-hand threaded tie rod end.
• Rotating the sleeve changes the effective tie rod length to adjust front wheel toe.
• Two sleeves are normally required per vehicle, one for each side of the steering linkage.
• A professional front-end alignment is recommended after replacing or adjusting steering linkage components.
• Additional vehicles may use this sleeve; verify a 4-1/2" sleeve length and 5/8"-18 tie rod threads before installation.

Includes:

• 1 - Tie Rod End Adjuster Sleeve
• Retaining bolts and nuts

Features:

• OEM-style replacement design
• 5/8"-18 tie rod end threads
• Left- and right-hand internal threads allow easy toe adjustment
• Connects compatible inner and outer tie rod ends
• Allows toe adjustment without disconnecting the tie rod ends
• Steel construction
• Direct replacement for many GM steering applications
• Works with Southwest Speed and compatible OEM-style steering components

Specs:

• Type: Tie Rod End Adjuster Sleeve
• Length: 4-1/2"
• Thread Size: 5/8"-18
• Thread Direction: Left-Hand & Right-Hand
• Thread Type: Female
• Position: Front
