POWER RACK UNIT,2.0,MEDIUM,18.25,TAPERED

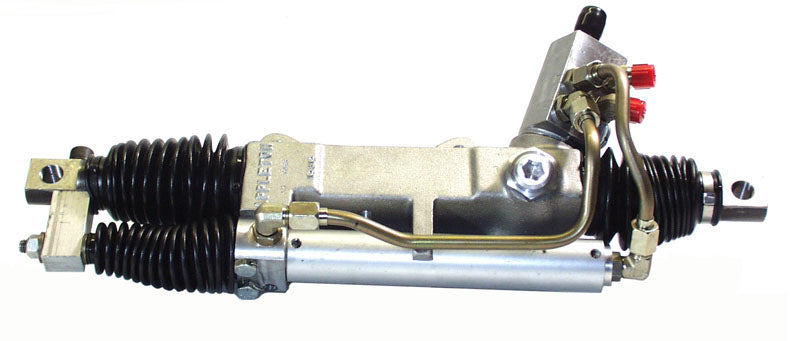

Brand New Appleton Power Rack & Pinion Unit - Tapered Shaft - 2.0" Ratio (Part #105-434).

The Appleton rack and pinion design makes it very compact, because the servo and cylinder are connected to the main unit. With this set up there is no need to run extra hoses and mount the servo and cylinder. 2.0" ratio means with 1 revolution of the pinion, the shaft moves 2 inches. See all of our Appleton Rack & Pinion units here.

Features:

• Tapered Shaft
• 18.25" center of tie rod to center of tie rod
• Medium Servo
• 2.0" Ratio
• Simple Installation
• 3/4" X 30 Spline Pinion
