VEGA 140 MANUAL CHROME STEERING BOX & CHROME PITMAN ARM,DOUBLE TAPERED,20:1

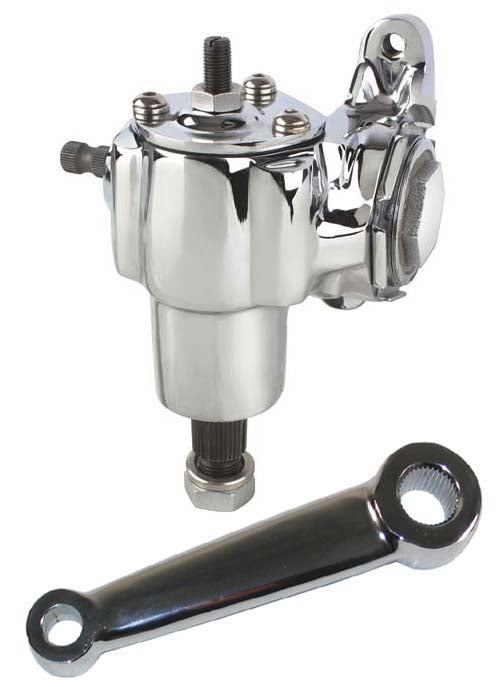

Brand New Chrome Vega 140 GM Manual Steering Box & Chrome Pitman Arm for the applications listed below (Part #105-3010 & #107-1447). These are brand new items produced by Southwest Speed Inc.

Features:

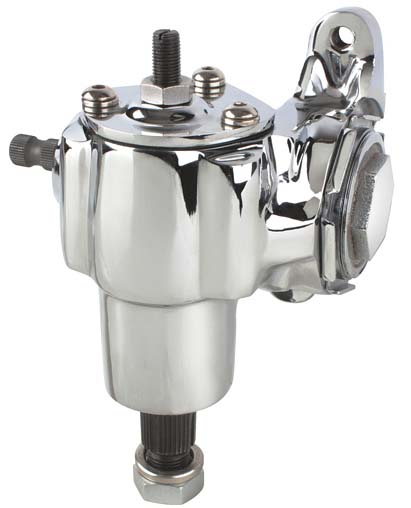

• Vega GM Manual Steering Box:
  • Chrome-plated housing
  • Steering Shaft Spline: 5/8"-36
  • Ratio: 20 : 1
  • 5 1/2" Turns (Lock-to-Lock)
  • Mounting pattern is 2 3/4" and 4 3/8" center-to-center of the three mounting holes
  • This is the stock configuration, meaning when you turn the input shaft clockwise, the output shaft also turns clockwise
  • Recommended for vehicles weighing 2800 lbs or less

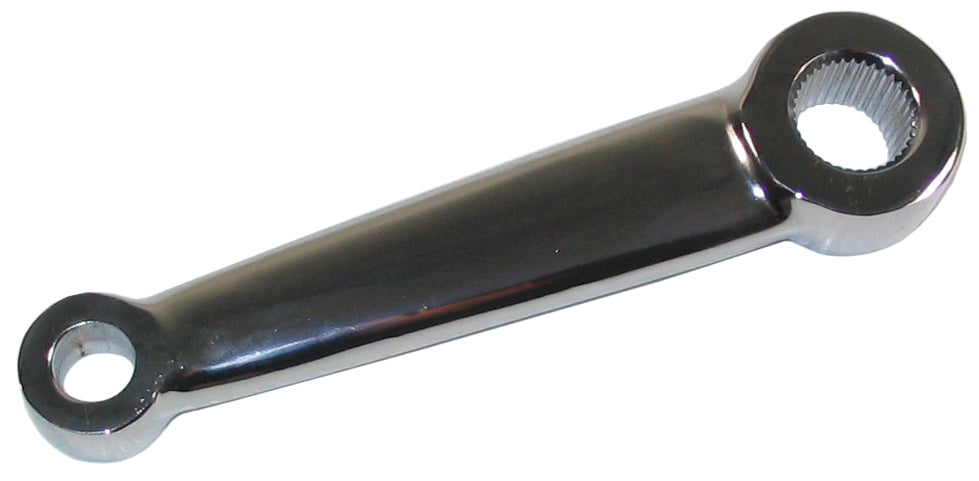

• Pitman Arm:
  • Chrome-plated
  • Non-offset design
  • Double-tapered "Ford" tie rod end hole allows you to attach the drag link on the top or on the bottom
  • Measures:
    • 6 3/8" Center-to-Center
    • 7 7/8" Total length
    • Tapered tie rod hole measures 0.625" on both sides and tapers down to 0.585" in the center of the hole

Fits:

• These boxes are perfect for the cross steering system in hot rod applications with straight axle setups: including Street Rods, Rat Rods, Hot Rods, T-Buckets, Model A's, 1923-1948 Fords, and many other vehicles:

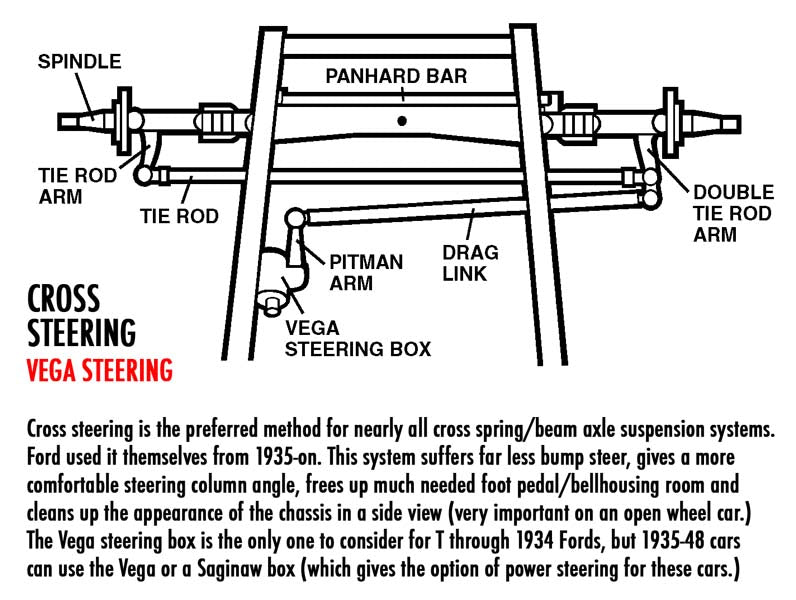

  • You can see a diagram of "Cross-Steering" in the photos provided
  • We do have this box available with a weld-on frame bracket and a bolt-on bracket for the tapered frames on 1935-1941 Ford chassis.

  • We also have this box available in Stock Black Finish, as well as with pitman arms in Cast and Gold.
