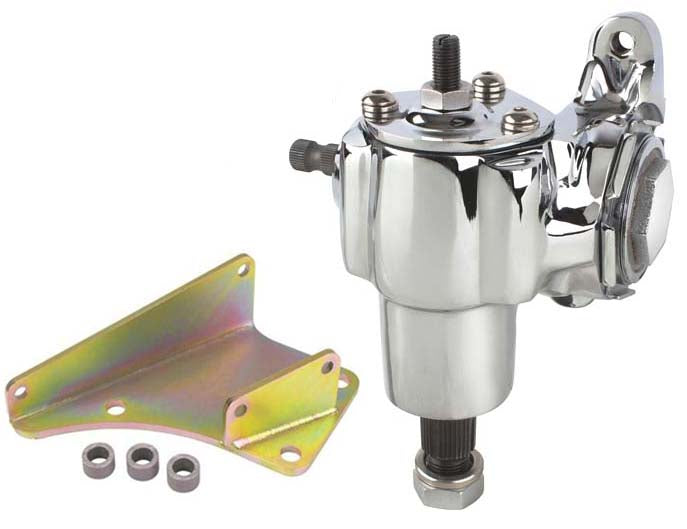

VEGA 140 MANUAL CHROME STEERING BOX & 1935-1941 FORD MOUNTING BRACKET

Brand New Chrome Vega 140 GM Manual Steering Box and Mounting Bracket for 1935-1941 Ford frames (Part #105-3010 & #105-7974).  These are brand new items produced by Southwest Speed Inc.

Features:

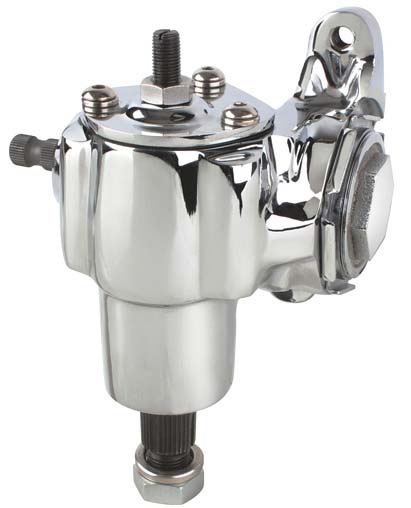

• Vega GM Manual Steering Box:
  • Chrome-plated housing
  • Steering Shaft Spline: 5/8"-36
  • Ratio: 20 : 1
  • 5 1/2" Turns (Lock-to-Lock)
  • Mounting pattern is 2 3/4" and 4 3/8" center-to-center of the three mounting holes
  • This is the stock configuration, meaning when you turn the input shaft clockwise, the output shaft also turns clockwise
  • Recommended for vehicles weighing 2800 lbs or less

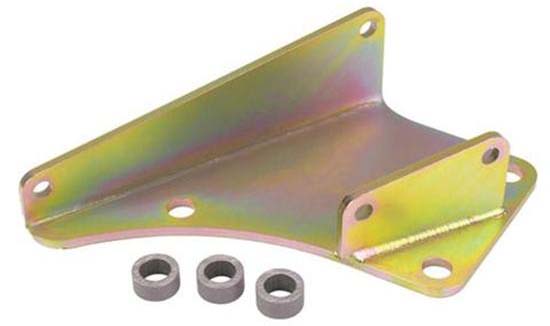

• Mounting Bracket:
  • This bracket is designed to fit the tapered frames of the 1935-1941 Fords
  • It measures 3.155" between the tabs at the front and 3.380" between the tabs at the rear

Fits:

• These boxes are perfect for the cross steering system in hot rod applications with straight axle setups: including Street Rods, Rat Rods, Hot Rods, and many other vehicles
• You can see a diagram of "Cross-Steering" in the photos provided
• We also have this box available in Stock Black Finish, as well as with pitman arms in Cast, Gold, and Chrome
