VEGA 140 MANUAL STEERING BOX,WELD-ON MOUNTING BRACKET & CHROME PITMAN ARM,20:1

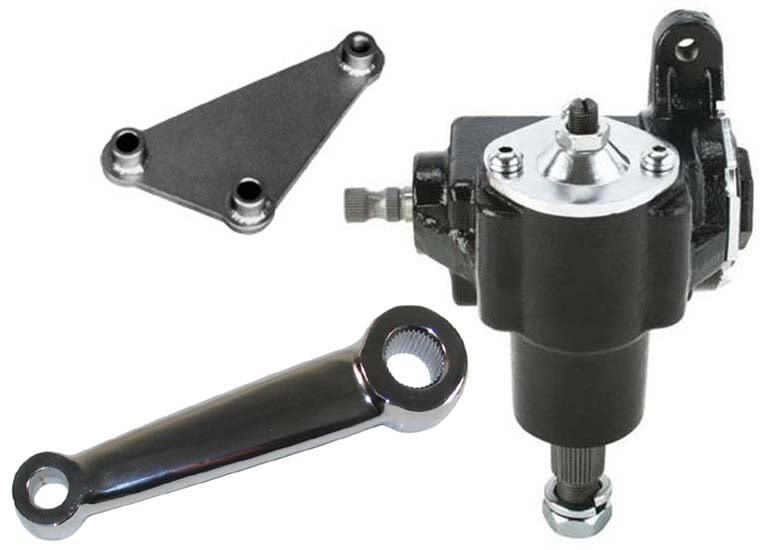

 Brand New Vega 140 GM Manual Steering Box, Chrome Pitman Arm, and Weld-on Mounting Bracket (Part #105-3008, #107-1447, & #105-7970).  These are brand new items produced by Southwest Speed Inc.

Features:

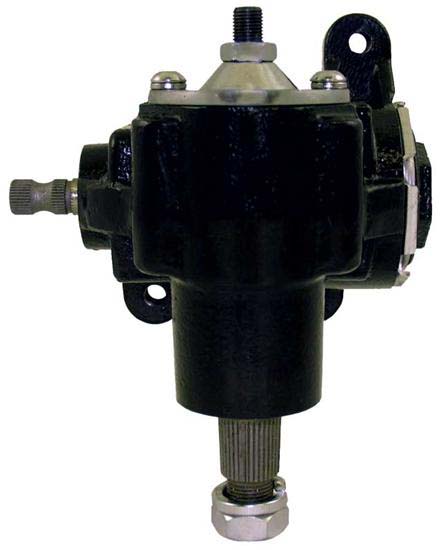

• Vega GM Manual Steering Box:
  • Steering Shaft Spline: 5/8"-36
  • Ratio: 20 : 1
  • 5 1/2" Turns (Lock-to-Lock)
  • Mounting pattern is 2 3/4" and 4 3/8" center-to-center of the three mounting holes
  • This is the stock configuration, meaning when you turn the input shaft clockwise, the output shaft also turns clockwise
  • Recommended for vehicles weighing 2800 lbs or less

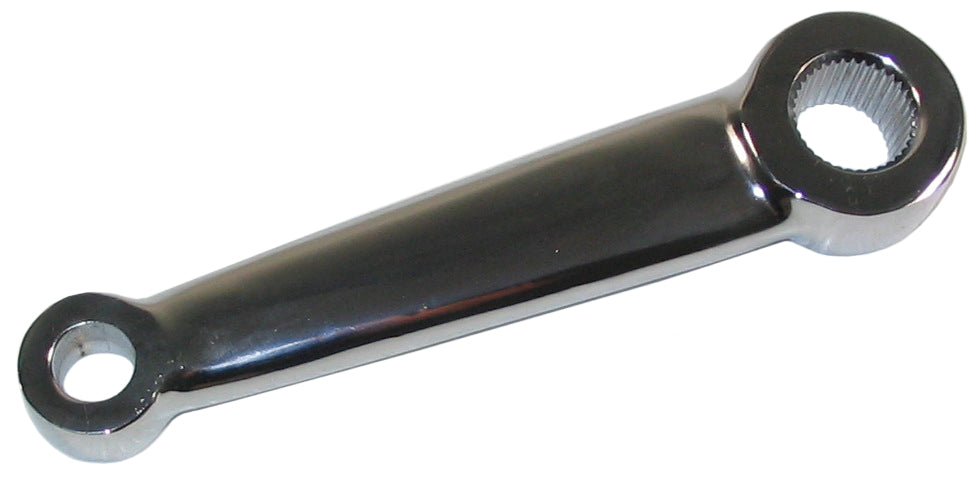

• Pitman Arm:
  • Chrome Plated
  • Non-offset design
  • Double-tapered "Ford" tie rod end hole allows you to attach the drag link on the top or on the bottom
  • Measures:
    • 6 3/8" Center-to-Center
    • 7 7/8" Total length
    • Tapered tie rod hole measures 0.625" on both sides and tapers down to 0.585" in the center of the hole
• Mounting Bracket:
  • This is a weld-on bracket
  • The upper bolt hole is threaded 7/16"-14
  • The two lower bolt holes are drilled straight-through to accept a 7/16" bolt
  • This allows the bracket to be mounted in many different applications

Fits:

• These boxes are perfect for the cross steering system in hot rod applications with straight axle setups: including Street Rods, Rat Rods, Hot Rods, T-Buckets, Model A's, 1923-1948 Fords, and many other vehicles:

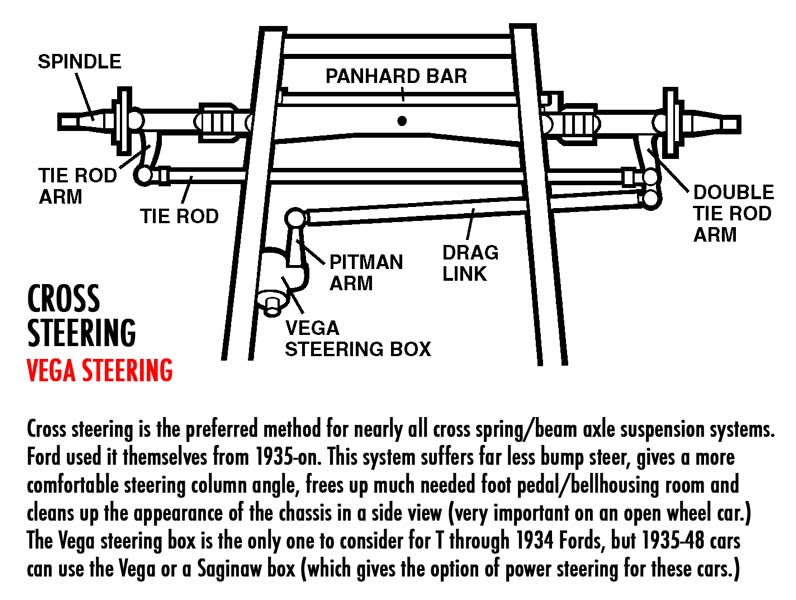

• You can see a diagram of "Cross-Steering" in the photos provided
• We also have this box available in Chrome, as well as with pitman arms in Cast and Gold.
