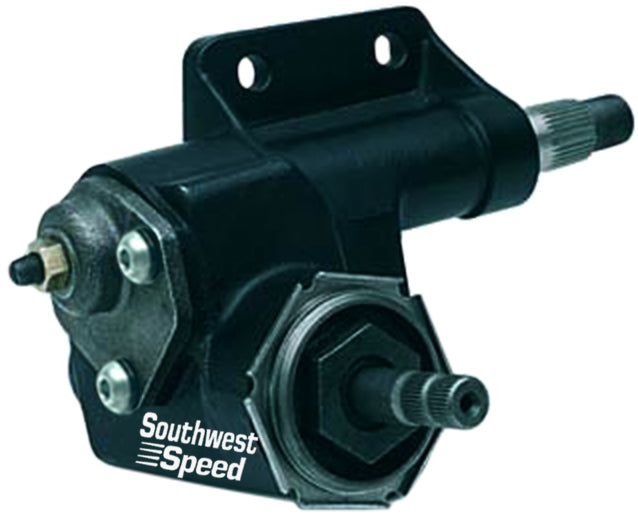

STEERING BOX,66-82 MOPAR,MANUAL,16:1

STEERING BOX,66-82 MOPAR,MANUAL,16:1

105-3532

$499.99
$499.99
View full details
  • BRAND NEW MOPAR MANUAL STEERING GEAR BOX WITH 16:1 STEERING RATIO FOR THE APPLICATIONS LISTED BELOW. THESE ARE BRAND NEW GEAR BOXES PRODUCED BY SOUTHWEST SPEED INC.

  • THESE SOUTHWEST SPEED STEERING MANUAL BOXES ARE GREAT FOR THE MANUAL STEERING SYSTEMS IN 1966-1974 A, B, C & E BODY CARS, AND 1971-1993 VANS. FEATURES AN 3/4"-36 INPUT SHAFT, AND 1"-32 SPLINE WITH 4 MASTER SPLINES PITMAN ARM OUTPUT SHAFT. THESE BOXES ARE CONSTRUCTED OF MODERN HIGH STRENGTH STEEL AND NEEDLE BEARINGS TO ENSURE DURABILITY, WHICH ORIGINAL BOXES JUST CANNOT OFFER. THIS STEERING BOX INCLUDES THE PITMAN ARM NUT & WASHER, AND IS IN STOCK & READY TO SHIP TODAY.

    FEATURES:

    • CONSTRUCTED FROM MODERN HIGH STRENGTH STEEL
    • MANUAL STEERING GEAR BOX
    • INCLUDES PITMAN ARM NUT & WASHER
    • NEEDLE BEARING DESIGN TO ENSURE LONGER LIFE
    • STEERING GEAR INPUT SHAFT SPLINE: 3/4"-36
    • STEERING GEAR OUTPUT SHAFT SPLINE: 1"-32
    • 16:1 STEERING GEAR RATIO

    APPLICATIONS:

    • DODGE:
      • 1976-1979 ASPEN
      • 1970-1974 CHALLENGER
      • 1966-1976 CHARGER
      • 1966-1976 CORONET
      • 1966-1976 DART
      • 1971-1980 B100
      • 1981-1993 B150
      • 1971-1980 B200
      • 1981-1993 B250
      • 1971-1980 B300
      • 1981-1993 B350
      • 1965-1972 MONACO
      • 1965-1972 POLARA
    • CHRYSLER:
      • 1965-1967 300
      • 1965-1967 NEW YORKER
      • 1965-1967 NEWPORT
      • 1965-1967 TOWN & COUNTRY
    • PLYMOUTH:
      • 1966-1974 BARRACUDA
      • 1966-1970 BELVEDERE
      • 1970-1974 CUDA
      • 1970-1976 DUSTER
      • 1966-1978 FURY
      • 1968-1974 FURY I
      • 1968-1974 FURY II
      • 1968-1974 FURY III
      • 1972-1977 GRAND FURY
      • 1967-1971 GTX
      • 1968-1975 ROADRUNNER
      • 1966-1974 SATELLITE
      • 1971-1976 SCAMP
      • 1970 SUPERBIRD
      • 1966-1976 VALIANT
      • 1976-1979 VOLARE

      STEERING BOX SPECIFICATIONS:

      • STEERING GEAR TYPE: MANUAL
      • STEERING RATIO: 16:1
      • LOCK TO LOCK: 4 1/8 TURNS
      • STEERING SHAFT INPUT SIZE: 3/4-36 SPLINE
      • PITMAN ARM OUTPUT SHAFT SIZE: 1"-32 SPLINE WITH 4 MASTER SPLINES
      • PITMAN ARM OUTPUT SHAFT THREAD PATTERN: 7/8"-14

      STEERING WHEEL RATIO SPECIFICATIONS:

      • 8:1 TURN STEERING WHEEL 8 DEGREES: PITMAN ARM TURNS 1 DEGREE
      • 12:1 TURN STEERING WHEEL 12 DEGREES: PITMAN ARM TURNS 1 DEGREE
      • 14:1 TURN STEERING WHEEL 14 DEGREES: PITMAN ARM TURNS 1 DEGREE
      • 16:1 TURN STEERING WHEEL 16 DEGREES: PITMAN ARM TURNS 1 DEGREE
      • 20:1 TURN STEERING WHEEL 20 DEGREES: PITMAN ARM TURNS 1 DEGREE
      • 22:1 TURN STEERING WHEEL 22 DEGREES: PITMAN ARM TURNS 1 DEGREE

      NOTE: FOR A BETTER EXPLANATION: 360 DEGREES OF ROTATION ON STEERING WHEEL EQUALS 18 DEGREES OF MOVEMENT ON THE PITMAN ARM OR SHAFT. 360 DIVIDED BY 18 EQUALS 20 TO 1 RATIO.

      YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTION BOOKLET FOR THIS STEERING BOX HERE.
