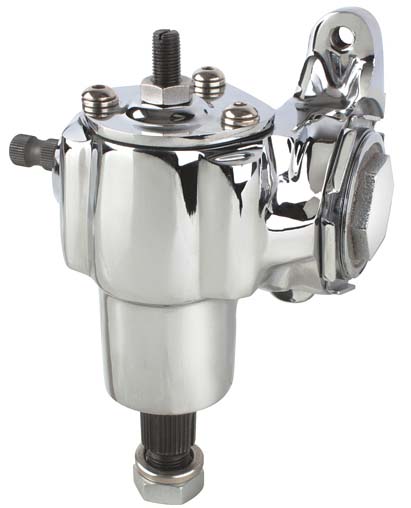

STEERING BOX,VEGA 140 MANUAL,CHROME,20:1

BRAND NEW CHROME VEGA 140 GM MANUAL STEERING BOX FOR THE APPLICATIONS LISTED BELOW (PART # 105-3010).THESE ARE BRAND NEW ITEMS PRODUCED BY SOUTHWEST SPEED INC.

FEATURES:

• CHROME-PLATED HOUSING
• STEERING SHAFT SPLINE: 5/8"-36
• RATIO: 20 : 1
• 5 1/2" TURNS (LOCK-TO-LOCK)
• MOUNTING PATTERN IS 2 3/4" AND 4 3/8" CENTER-TO-CENTER OF THE THREE MOUNTING HOLES
• THIS IS THE STOCK CONFIGURATION, MEANING WHEN YOU TURN THE INPUT SHAFT CLOCKWISE, THE OUTPUT SHAFT ALSO TURNS CLOCKWISE
• RECOMMENDED FOR VEHICLES WEIGHING 2800 LBS OR LESS

FITS:

• THESE BOXES ARE PERFECT FOR THE CROSS STEERING SYSTEM IN HOT ROD APPLICATIONS WITH STRAIGHT AXLE SETUPS: INCLUDING STREET RODS, RAT RODS, HOT RODS, T-BUCKETS, MODEL As, 1923-1948 FORDS, AND MANY OTHER VEHICLES:

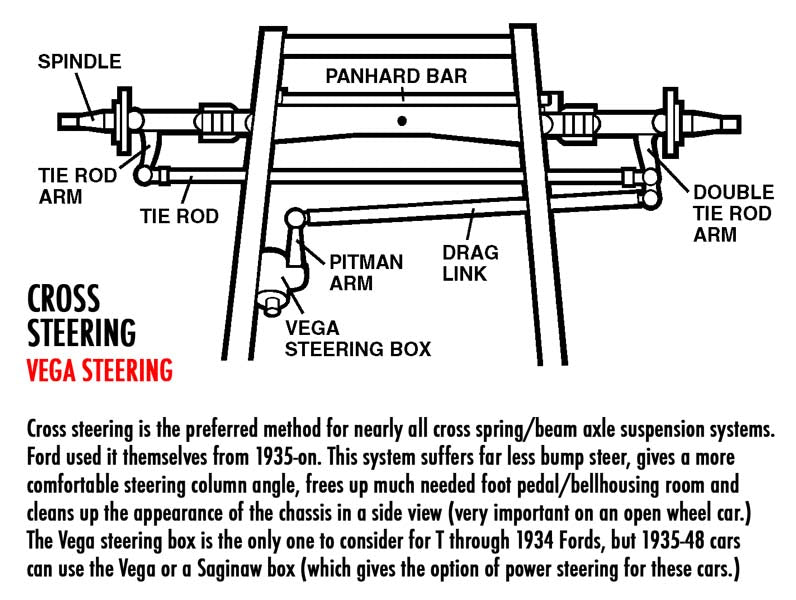

  • YOU CAN SEE A BETTER DESCRIPTION OF "CROSS-STEERING" IN THE DIAGRAM BELOW

• THESE BOXES ALSO ARE A DIRECT REPLACEMENT FOR THE GM MANUAL STEERING BOX ON THE FOLLOWING VEHICLES:
  • 1975-1978 CHEVY MONZA
  • 1971-1977 CHEVY VEGA, 4-CYLINDER, NON-COSWORTH
  • 1976-1978 OLDSMOBILE STARFIRE, 4-CYLINDER
  • 1975-1977 PONTIAC ASTRE
  • 1976-1978 PONTIAC SUNBIRD, 4-CYLINDER
