JEEP POWER STEERING KIT,BOX,PUMP,SHAFT,V8 BRACKET,76-86,DOUBLE PULLEY FOR SMOG

Brand New Southwest Speed Manual to Power Steering Gear Box Kit with 20:1 Gear Ratio, 1400 Series Performance Power Steering Pump, & Power Steering Pump Mounting Bracket for 1976-1986 Jeep CJ V8 Engines with Smog Pump (Part #105-2862).

Upgrade your 1976-1986 Jeep CJ from manual to power steering with this Southwest Speed Power Steering Kit. Designed for models with a smog pump, it includes a 20:1 steering gear box, 1400 Series performance pump, smog bracket, dual-groove pulley, pitman arm, steering shaft, and pressure/return line components.

Fits:

• Jeep:
• 1976-1983 CJ5 (304, 360, 390, & 401 V8 Engine with Smog Pump)
• 1976-1986 CJ7 (304, 360, 390, & 401 V8 Engine with Smog Pump)

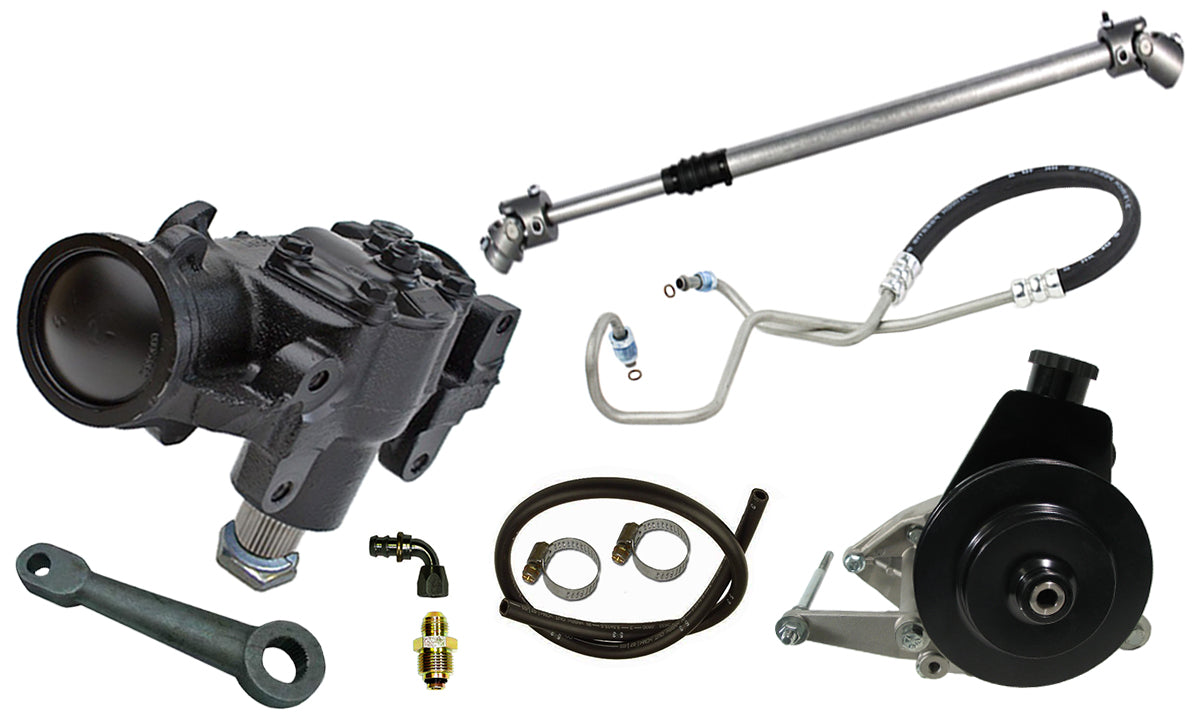

Kit Includes:

• Southwest Speed Power Steering Gear Box
• Engineered for superior durability
• O-ring ports
• O.E. spool valves
• Heavy duty gears
• 20:1 gear ratio
• 13/16"-36 input shaft
• 1 1/8"-32 spline output shaft
• 2.750" standard piston diameter
• 18mm O-ring pressure fitting
• 16mm O-ring return fitting

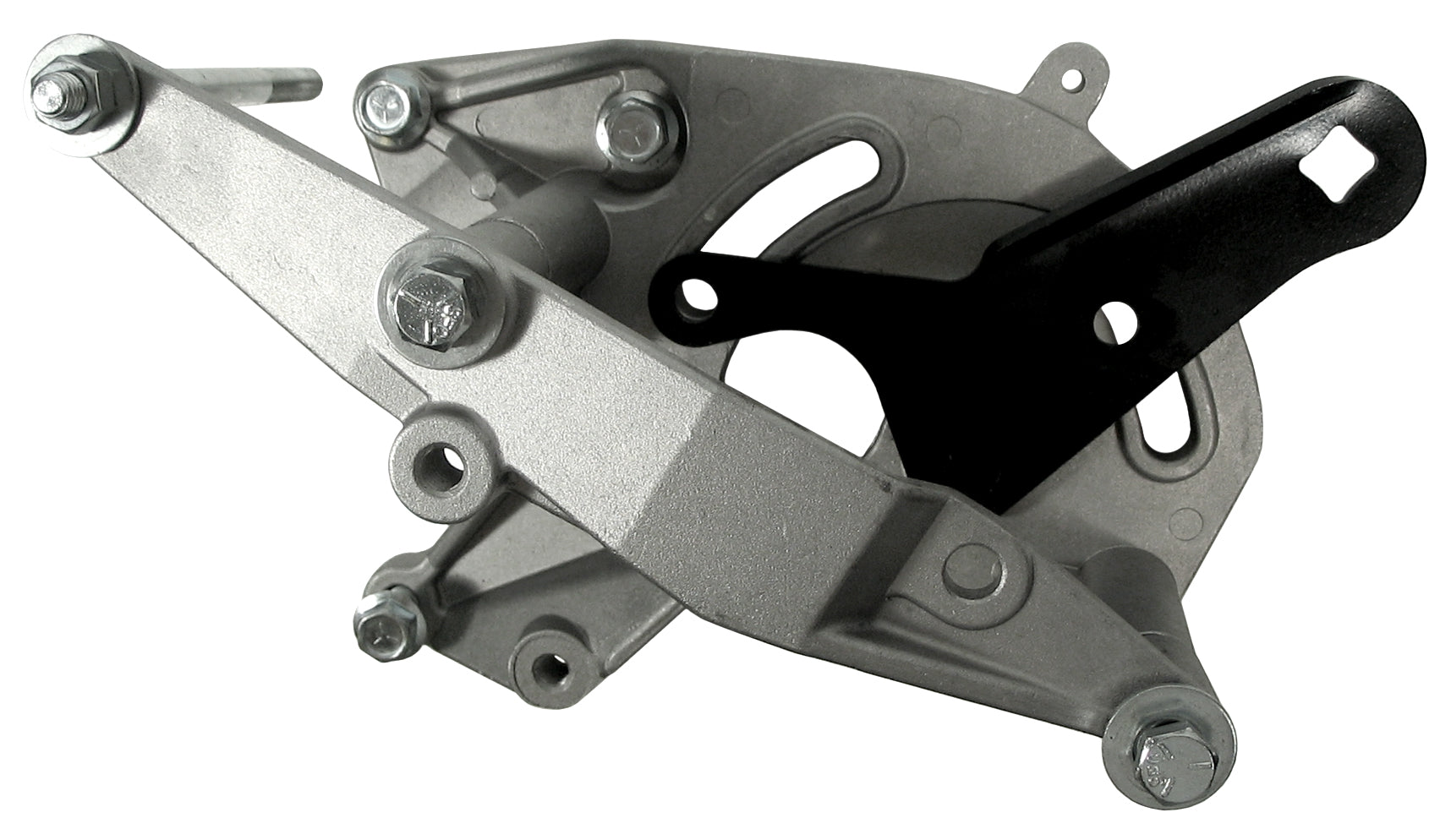

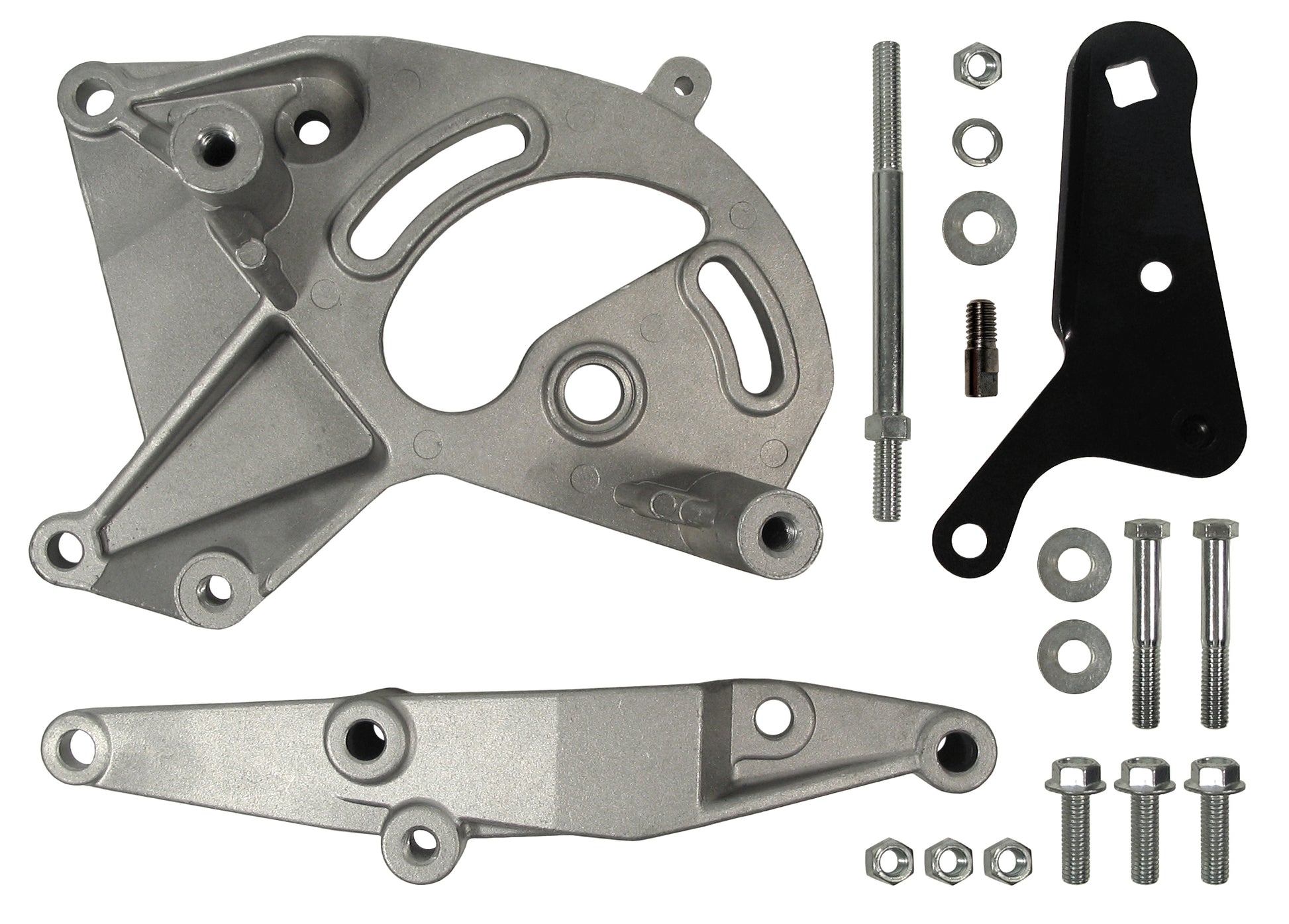

• Southwest Speed Power Steering Pump Engine Mounting Bracket
• Bracket assembly specifically designed for Jeep applications with 304/360/390/401 V8 engines
• Southwest Speed 1400 Series Performance Power Steering Pump
• Perfect for factory replacement, street, and off-road use
• Manufactured with much stronger components than 1300 series
• Larger ring and rotor that displaces more fluid per revolution
• Southwest Speed Power Steering Pump Dual Groove Smog V-Belt Pulley
• Dual V-belt pulley for applications with a smog pump
• Primary pulley diameter: 5 1/2"
• Smog pulley diameter: 3 1/4"
• Pulley comes pre-pressed on power steering pump
• Southwest Speed High Strength Pitman Arm
• Restores proper steering performance to help ensure vehicle control
• O.E. type replacement part
• Crafted from the strongest materials available
• Southwest Speed Telescoping Steel Power Steering Shaft
• Connects from the factory column to the steering gear box
• For use with Jeeps with power steering
• Crafted from steel for longer life
• Southwest Speed 16mm O-Ring Low Pressure Return Hose & 18mm High Pressure Line Adapter Kit
• 1 high pressure line from pump to reservoir
• 3 feet of low pressure hose, black -6AN
• 1 hose clamp
• 1 90 degree return line adapter -6AN fitting with hose clamp
