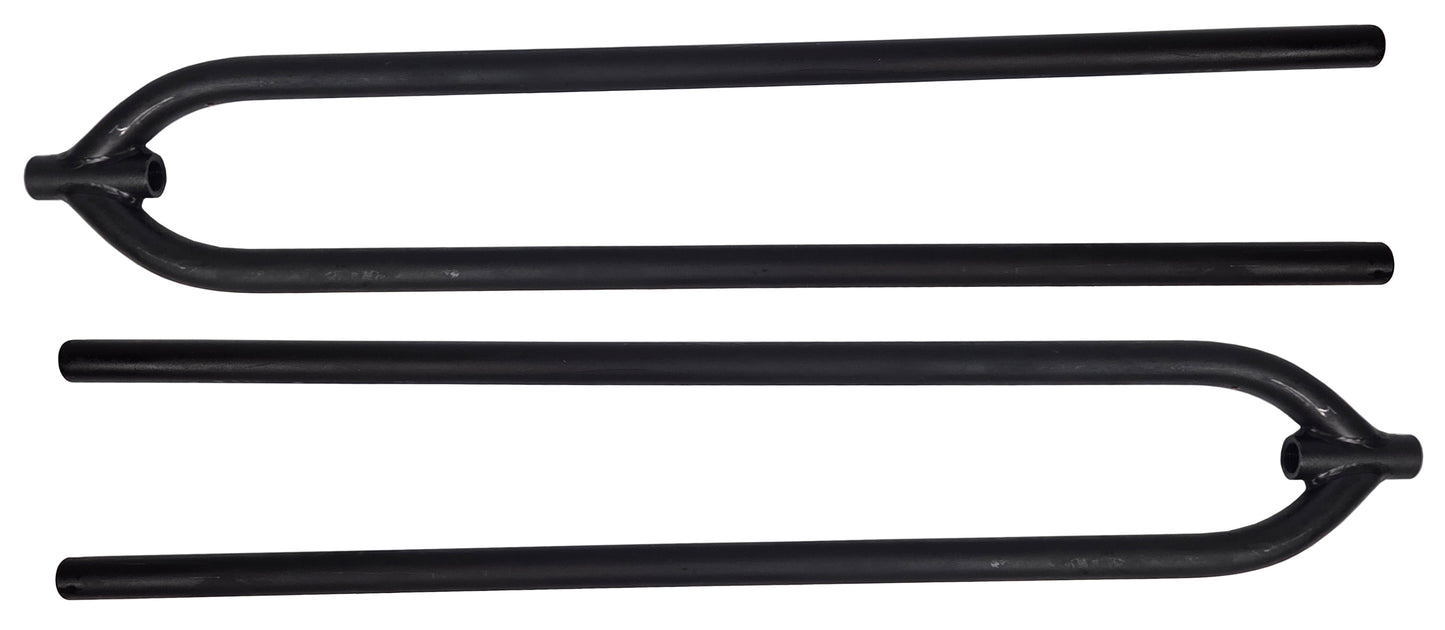

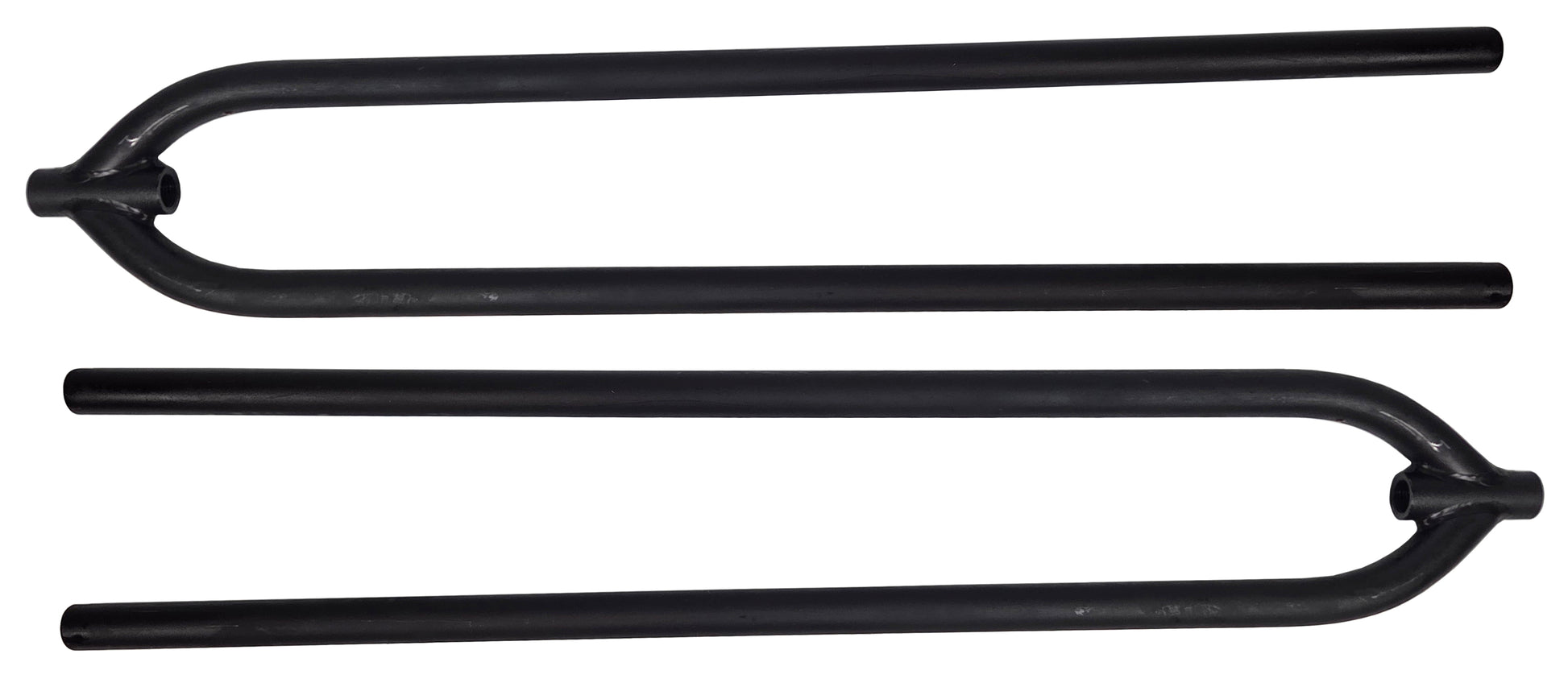

RADIUS RODS,HAIRPIN,5/8"-18,RAW,27"

Pair of Brand New Southwest Speed Hairpin Radius Rods that measure 27" from end to end. These Hairpin Radius Rods fit the front suspensions on 1928-1934 Ford's. (SWS #104-80759).

This pair of Southwest Speed hairpin radius rods are ideal for smaller or full fendered Rat Rods, Street Rods, Hot Rods, & any Nostalgia Rod. These hairpin radius rods measure 27" overall. This hairpin radius rods are designed to be used with four bar batwing brackets with a 5" center to center bolt hole spacing on front tube or I-beam axles only. These hairpin radius rods fit the front axle on 1928-1934 Fords, and are in stock & ready to ship today.

This listing is for the 27" Radius Rods only, and does not include the heim joints or clevis ends.

Features:

• 5/8"-18 Female Threads
• Fabricated from 7/8" O.D. Steel
• Ideal for smaller or Full Fendered Rat Rods, Street Rods, Hot Rods, & any Nostalgia Rod
• Designed to be used with four bar batwing brackets 5" center to center bolt hole spacing
• The total length of Radius Rods with either heim joints or clevis ends installed is 32"

Radius Rod Specifications

• Axle End Threads: 5/8"-18 NF RH Threads
• Chassis End Threads: 5/8" RH Threads
• Length: 27"
• Tube Diameter: 7/8"
• Finish: Raw
• Material: Steel
• Rod Ends or Heim joints Included: No
• Quantity: Two

Applications:

• 1928-1931 Model A
• 1928-1931 Model AA
• 1932-1934 1/2 Ton Pickup
• 1932 Model 18
• 1932-1934 Model BB
• 1932 Model B
• 1932-1934 Sedan Delivery
• 1933-1934 Model 40
• 1933 Model 46
• 1934 Model 40A

This Hairpin Radius Rods fit the front suspension only, & will not fit the fit the rear suspension.
