FRONT AXLE,TUBE,CHEVY SPINDLE,4" DROP,48",SPRING BEHIND,RAW

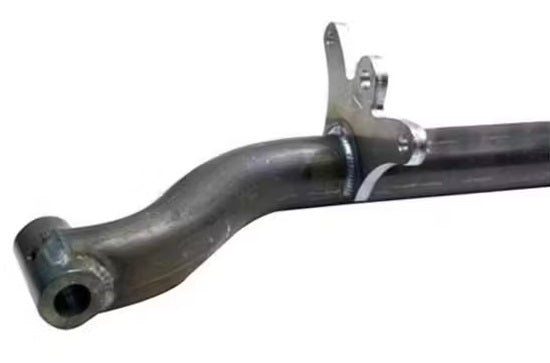

Brand New Southwest Speed 4" Drop Spring Behind Front Tube Axle for 1949-1954 Chevy Style Spindles (#104-8006).

Features:

• This 4" dropped tube axle is perfect for your spring behind front end on your hot rod build
• Accepts 1949 to 1954 Chevy spindles which have a wide selection of brake kits and wheel bolt patterns available
• Constructed from 2" diameter .250" wall thickness premium steel tubing for outstanding strength
• Mounts for radius rods and the spring come welded to the axle for your convenience
• Spring-behind axle design
• 48" eye-to-eye
• Use with 26" spring

Specs:

• Spindle Style: Chevy/GM Stock
• Straight Axle Style: Solid Tube
• Dropped Axle: Yes
• Suspension Height Adjustment: 4" Lowered
• Tube O.D.: 2"
• Finish: Natural
• Material: Steel
• Material Thickness: 0.25"
• King Pin Center-to-Center: 48"
