TIE ROD ASSEMBLY,11/16" ENDS,CHROME,32"

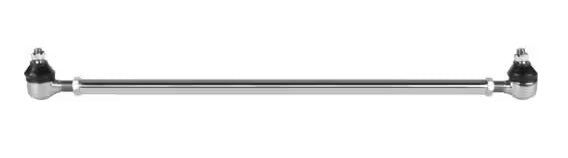

Brand New Southwest Speed Chrome Tie Rod/Drag Link Kit with 11/16" Tie Rod Ends - 32" (SWS #102-1115).

These tie rod or drag link kits are pre-cut and tapped lengths of 7/8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.

Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the actual tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer.

Note: Total length listed includes tie rod ends installed and threaded approximately halfway. The tube you will receive will be 3" shorter in length. We have this same kit in lengths 25.5" to 54", available here.

Features:

• Features 7/8" O.D. tube pre-threaded with 11/16"-18 LH and RH thread pitch
• Measurements are eye to eye or center of stud to stud with tie rods threaded half way in to allow adjustment
• 7 degree tapered tie rods and jam nuts included
• Can be cut down in length, you would need to tap the thread further inside of tube, generally done on RH side
• At selected length adjustment can be made 1/2" shorter to 3/4" longer

Specs:

• Total Length: 32"
• Tube Length: 29"
• Thread Pitch: 11/16"-18 RH/LH
• Taper: 7 degree
• Material Type: Steel
• Finish: Chrome
• Tube O.D.: 0.875"
• Grease Zerk Included: Yes
