BALL JOINT,LOWER,PRESS-IN,RACING,RAISE ROLL
BALL JOINT,LOWER,PRESS-IN,RACING,RAISE ROLL
SKU:101-012
Couldn't load pickup availability

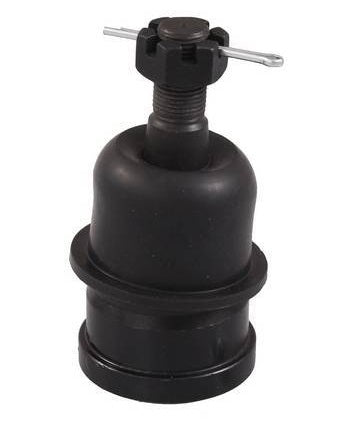

Brand New Press-In Lower Ball Joint produced by Southwest Speed (Part #101-012).
The TRW Part # on this ball joint is BJ10264. The Moog Part # is K-6117. They replace the OEM ball joints and work perfectly with all connecting components in the correct application. We've sold hundreds of these with no problems in quality or compatibility. They are commonly used in many different race cars and street cars. Includes hardware.
Racing Applications:
- Used primarily in racing applications to raise the roll center. In racing, these ball joints are used with many different lower a-arms, which they are typically welded in to or pressed in a separate sleeve, which is welded in to the a-arm. (We do have the sleeves as well.) Some A-Arms that they are commonly used in are Impala's, Chevelle's, & Malibu's. With some a-arms, you are required to cut out the hole in the a-arm before inserting this ball joint.
- This ball joint has a 3/8" longer stud than the #101-010, which fits 71-76 Impala's. This gives the raise in the roll center
- Outside diameter is 1.975"
Stock Applications:
-
Chevrolet:
- 1971-1986 C10
- 1987 R10
- 1971-1995 G10
- 1973-1995 G20
- 1971-1980 P10
- 1991-1997 P30
- 1971-1986 C10 Suburban
- 1987-1988 R10 Suburban
- 1989-1991 R1500 Suburban
- 1971-1974 Blazer 2WD
- 1975-1982 K5 Blazer 2WD
-
GMC:
- 1971-1991 C15/C1500
- 1987 R1500
- 1971-1995 G15/G1500
- 1973-1995 G25/G2500
- 1966 P1000
- 1967-1980 P15/P1500
- 1991-1997 P3500
- 1971-1986 C15/C1500 Suburban
- 1987-1991 R1500 Suburban
- 1971-1991 Jimmy 2WD
