RIDE HEIGHT ADJUSTERS,MUSTANG II

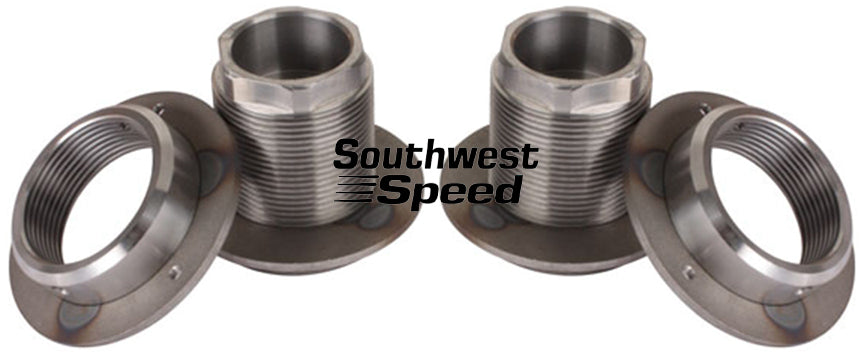

Brand New Southwest Speed Ride Height Adjustment Kit that fits 1974-1978 Ford Mustang II, 1974-1978 Ford Pinto, and 1975-1980 Mercury Bobcat. This listing includes both Threaded Adjuster Rings & both Threaded Adjuster Sleeves. (SWS Part #051-2440).

This Southwest Speed ride height adjustment kit is direct fit part for 1974-1978 Ford Mustang II, 1974-1978 Ford Pinto, and 1975-1980 Mercury Bobcat. The upper spring seat is built on a threaded adjuster sleeve, which fits inside a threaded adjuster ring mounted to the spring tower on your frame. This allows the upper spring seat to be adjusted up or down to fine-tune your car’s final ride height up to 2 inches. One of the primary benefits of this is the ability to adjust the suspension for proper travel and geometry, especially as the coil springs age and settle. Rodders will like the idea of the capabilities of making slight altitude adjustments to fine-tune the appearance of their car, too. The adjusters can be used with nearly any aftermarket Mustang II–style front suspension that uses conventional coil springs and shocks. This listing includes both threaded adjuster rings, & threaded adjuster sleeves, and is in stock ready to ship today.

Note: Trimming & Drilling of the strut towers will be required for the installation of these ride height adjusters.

Features:

• Fine tune the ride height up to 2 inches
• Gains the ability to adjust the suspension for proper travel & geometry
• Making slight altitude adjustments to changes the appearance of the car
• Can be used with nearly any aftermarket Mustang II Style front suspension that uses conventional coil springs & shocks
• Designed to fit the original Ford Mustang II, Ford Pinto, Mercury Bobcat front ends
• Kit Includes two threaded adjuster sleeves & two threaded adjuster rings
• Fabricated from high strength steel

Applications:

• Ford:
  • 1974-1978 Mustang II
  • 1974-1980 Pinto
• Mercury:
  • 1975-1980 Bobcat

Rack & Pinion Extension Specs:

• Ride Height Adjustment Travel: 0" to 2"
• Material: High Strength Steel
• Upper Spring Seat Location Built onto the Threaded Adjuster Sleeves
• Threaded Adjuster Ring Mounting Location Mounts to the Coil Spring Tower on the Frame

You can view and download the complete assembly instruction booklet here.
