MICRO,MINI-SPRINT 600 BRAKE & THROTTLE PEDAL SYSTEM,FOR REVERSE WILWOOD CYLINDER

BRAND NEW SOUTHWEST SPEED MICRO/MINI SPRINT BRAKE & THROTTLE PEDAL SYSTEM (PART #001-3117)

THIS PARTICULAR SETUP IS DESIGNED FOR USE WITH WILWOOD REMOTE RESERVOIR MASTER CYLINDERS (260-3372, 260-3374, 260-3376, 260-3378, 260-3380, ETC). THIS LISTING DOESNT INCLUDE A MASTER CYLINDER. WE DO HAVE A LISTING AVAILABLE HERE THAT INCLUDES A WILWOOD CYLINDER.

FEATURES:

• THIS REVOLUTIONARY PEDAL SYSTEM ALLOWS FOR MAXIMUM PEDAL ADJUSTMENT, WHICH ELIMINATES THE WELDING, CUTTING, AND HEADACHE THAT COMES WITH THE CHANGING SIZE OF YOUR DRIVER
• THE LIGHTWEIGHT ALUMINUM RAILS ARE 17 3/4" LONG AND HAVE 18 HOLES THAT GIVE A FULL 14" OF FORWARD AND BACK PEDAL ADJUSTMENT
• THIS SYSTEM CONFIGURES TO THE DRIVER IN A MATTER OF MINUTES
• WE ALSO HAVE THIS SYSTEM AVAILABLE FOR USE WITH MCP MASTER CYLINDERS HERE.
• CAN BE USED IN ALMOST ALL MICRO-SPRINTS, INCLUDING TRIPLE X, FACTOR 1, SAWYER, STALLARD, HYPER, PMP, CONCEPT, BAILEY, PACE, AND ANY OTHER MICRO CHASSIS

INCLUDES:

• BRAKE PEDAL
• THROTTLE PEDAL
• BRAKE AND THROTTLE ALUMINUM ADJUSTMENT RAILS
• MASTER CYLINDER MOUNTING BRACKET FOR WILWOOD MASTER CYLINDERS
• MASTER CYLINDER BRACKET SPACER
• MASTER CYLINDER MOUNTING LEVER BRACKETS FOR PUSH RODS, WITH ROD END AND JAM NUT
• ROD TO CONNECT BRAKE PEDAL TO LEVER BRACKETS, WITH ROD ENDS AND JAM NUTS
• THROTTLE CABLE STOP
• THROTTLE STOP AND CABLE MOUNTING BRACKET
• 4 WELD TABS TO ATTACH SYSTEM TO CHASSIS

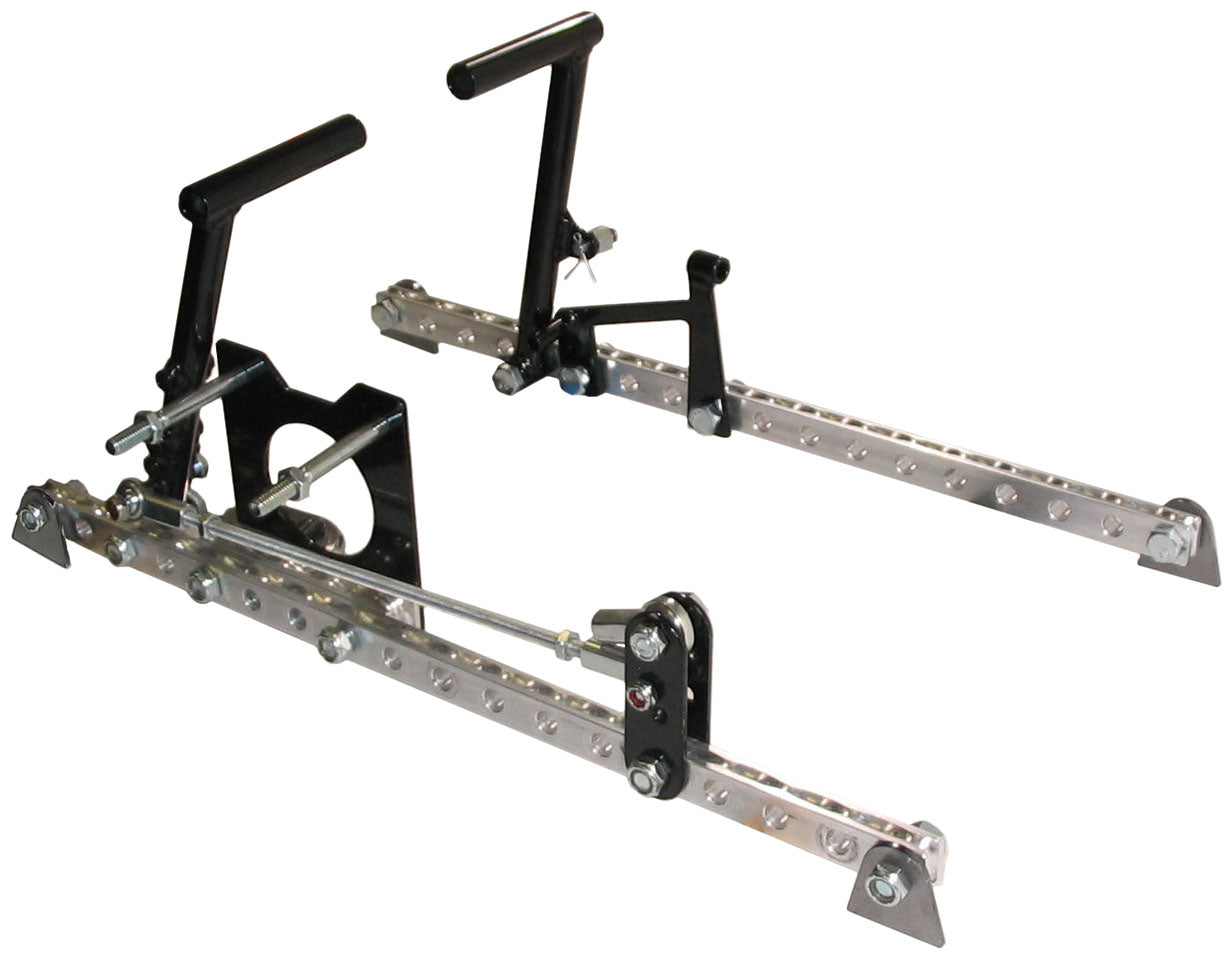

• ALL BOLTS, NUTS, AND HARDWARE SHOWN IN THE PICTURE
