MICRO,MINI-SPRINT 600 BRAKE & THROTTLE PEDAL SYSTEM,FOR FORWARD WILWOOD CYLINDER

BRAND NEW SOUTHWEST SPEED MICRO/MINI SPRINT BRAKE & THROTTLE PEDAL SYSTEM, FORWARD MOUNT (PART #001-3113)

THIS PARTICULAR SETUP IS DESIGNED FOR USE WITH WILWOOD REMOTE RESERVOIR MASTER CYLINDERS (260-3372, 260-3374, 260-3376, 260-3378, 260-3380, ETC). THIS LISTING DOESNT INCLUDE A MASTER CYLINDER. WE DO HAVE A LISTING AVAILABLE HERE THAT INCLUDES A WILWOOD CYLINDER.

AS OPPOSED TO THE REVERSE MOUNT SYSTEM (WITH THE MASTER CYLINDER BEHIND THE PEDAL), THIS FORWARD MOUNT SYSTEM IS DESIGNED TO GET THE CYLINDER OUT IN FRONT OF THE PEDAL TO KEEP IT AWAY FROM THE DRIVERS FEET. YOU NEED TO MAKE SURE YOUR CHASSIS HAS ENOUGH ROOM TO MOUNT THE SYSTEM IN THIS MANNER. THE REVERSE MOUNT SYSTEM IS AVAILABLE HERE FOR CHASSIS WITH TIGHT FLOOR BOARDS.

FEATURES:

• THIS REVOLUTIONARY PEDAL SYSTEM ALLOWS FOR MAXIMUM PEDAL ADJUSTMENT, WHICH ELIMINATES THE WELDING, CUTTING, AND HEADACHE THAT COMES WITH THE CHANGING SIZE OF YOUR DRIVER
• THE LIGHTWEIGHT ALUMINUM RAILS ARE 17 3/4" LONG AND HAVE 18 HOLES THAT GIVE A FULL 14" OF FORWARD AND BACK PEDAL ADJUSTMENT
• THIS SYSTEM CONFIGURES TO THE DRIVER IN A MATTER OF MINUTES
• WE ALSO HAVE A SIMILAR SYSTEM AVAILABLE FOR USE WITH MCP MASTER CYLINDERS HERE.
• CAN BE USED IN ALMOST ALL MICRO-SPRINT CHASSIS THAT HAVE ENOUGH ROOM FOR FORWARD MOUNTING

INCLUDES:

• BRAKE PEDAL
• THROTTLE PEDAL
• BRAKE AND THROTTLE ALUMINUM ADJUSTMENT RAILS
• MASTER CYLINDER MOUNTING BRACKET FOR WILWOOD MASTER CYLINDERS
• MASTER CYLINDER BRACKET SPACER
• THROTTLE CABLE STOP
• THROTTLE STOP AND CABLE MOUNTING BRACKET
• 4 WELD TABS TO ATTACH SYSTEM TO CHASSIS

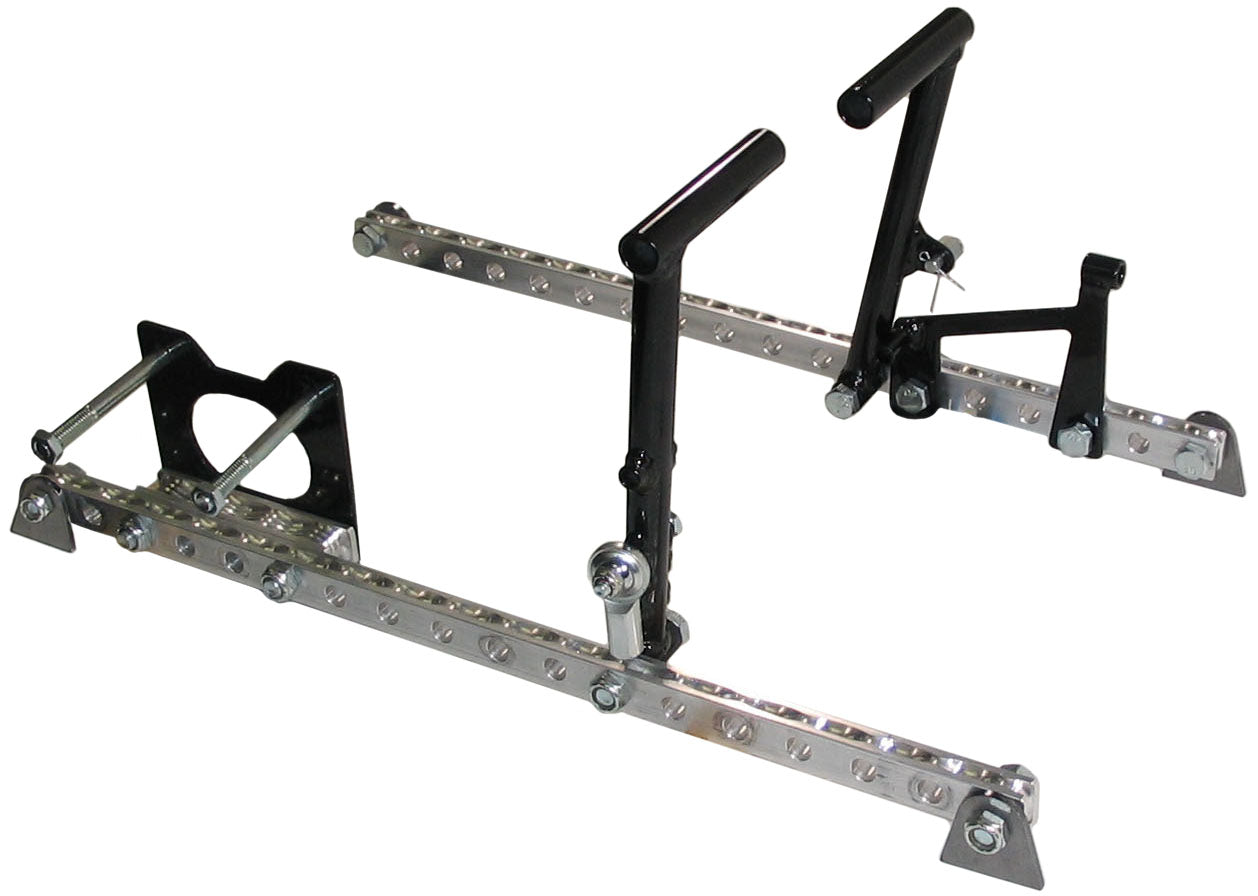

• ALL BOLTS, NUTS, AND HARDWARE SHOWN IN THE PICTURE
