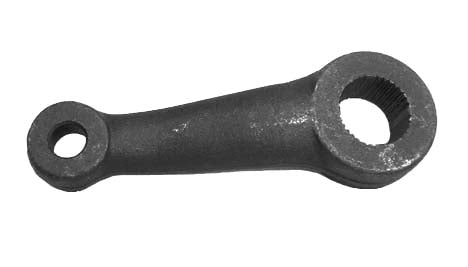

STEERING ARM,RIGHT FRONT

STEERING ARM,RIGHT FRONT

001-1919

$29.99
$29.99
View full details
  • FITS:
    *GM POWER BOX WHICH WAS THE DOMINANT POWER STEERING BOX ON ALMOST ALL GM CARS THROUGH 1977 & ABOUT 1/2 OF ALL GM CARS FROM 1978 TO THE EARLY 90S; THIS BOX IS DISTINCT FOR ITS SQUARE, 4-BOLT HOUSING COVER & FEATURES A 1 1/8"-32 SPLINE PITMAN ARM SHAFT
  • SPECIFIC DIMENSIONS:
    *MEASURES 5" FROM CENTER OF PITMAN SHAFT HOLE TO CENTER OF DRAG LINK HOLE
    *1 1/8"-32 SPLINE PITMAN SHAFT HOLE, COMMONLY REFERRED TO AS "BIG SPLINE"
    *DRAG LINK TAPERED HOLE MEASURES .550" MAJOR I.D. & .460" MINOR I.D.
