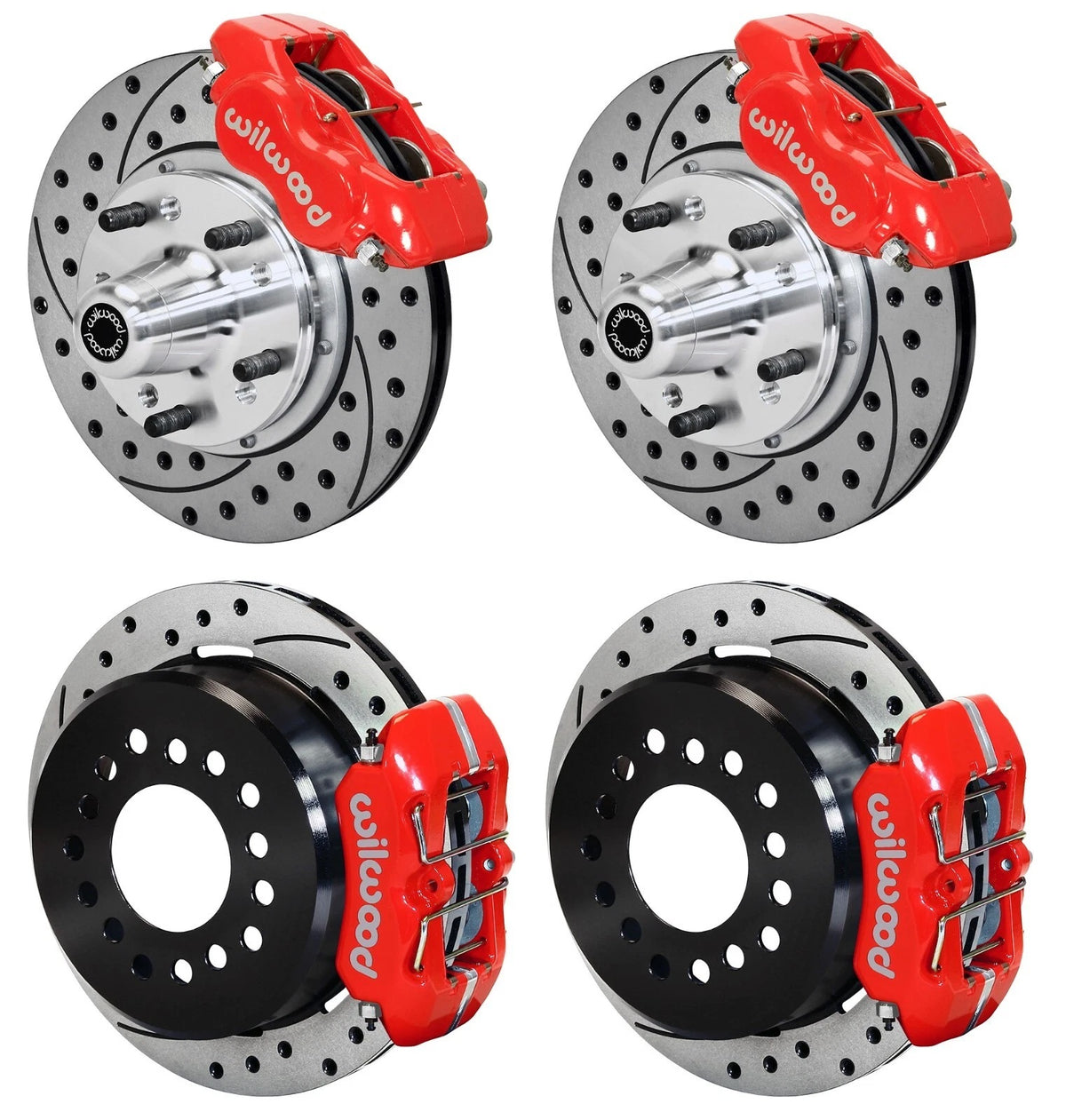

WILWOOD 55-57 CHEVY FULL DISC BRAKE KIT

Complete Kit Includes:

• Forged Dynalite Pro Series Bolt-on Front Hub & 11" Disc Brake Kit (Part #140-11491) for Both Front Wheels
• Low-Profile Dynapro Bolt-on Rear Hat & 11" Disc Brake Kit with Parking Brake (Part #140-11405) for Both Rear Wheels

For the Front, FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular 55-57 Chevrolet 210 / 150 /Bel Air Passenger cars. Based on the venerable forged billet Dynalite caliper and 11.00" x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

For the Rear, Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

These Brake kits require at least 15" diameter wheels.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 11.00" O.D. Rotors
• Forged Dynalite Calipers - Black or Red
• Hubs, Bearings, Seals, &

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 11.00" O.D. Rotors with Hats
• Low-Profile Dynapro Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 84 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

These Big Brake kits require at least 16" diameter wheels.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

Complete Kit Includes:

• Forged Dynalite Bolt-on Front Hub & 12.19" Disc Brake Kit (Part #140-7676) for Both Front Wheels
• Forged Dynalite Bolt-on Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-11348) for Both Rear Wheels

For the Front, FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars. Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Forged Dynalite Calipers - Black or Red
• Hats, Hubs, Bearings, Seals, &

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Forged Dynalite Calipers - Black or Red
• Drum Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 97 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.

These Big Brake kits require at least 16" diameter wheels.

For the Rear, FDL Pro Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynalite 4-Piston calipers, 12.19" O.D. one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

Complete Kit Includes:

• Dynapro 6 Piston Bolt-on Front Hat, Hubs, & 12.19" Disc Brake Kit (Part #140-10737) for Both Front Wheels
• Dynalite 4 Piston Bolt-on Rear Hat & 12.19" Disc Brake Kit (Part #140-11348) for Both Rear Wheels

For the Front, Dynapro 6 forged billet calipers are combined with 12.19" diameter rotors for traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. These kits can be used with either manual or power boost master cylinders.

Front Kit Includes Parts for Both Front Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Dynapro 6 Piston Calipers - Black or Red
• Hubs, Hats, Bearings, Seals &

Rear Kit Includes Parts for Both Rear Wheels:

• .810" Thick X 12.19" O.D. Rotors
• Dynalite 4 Piston Calipers - Black or Red
• Parking Brake Assemblies with Caliper Mounting Brackets

Complete kit weighs approximately 100 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
