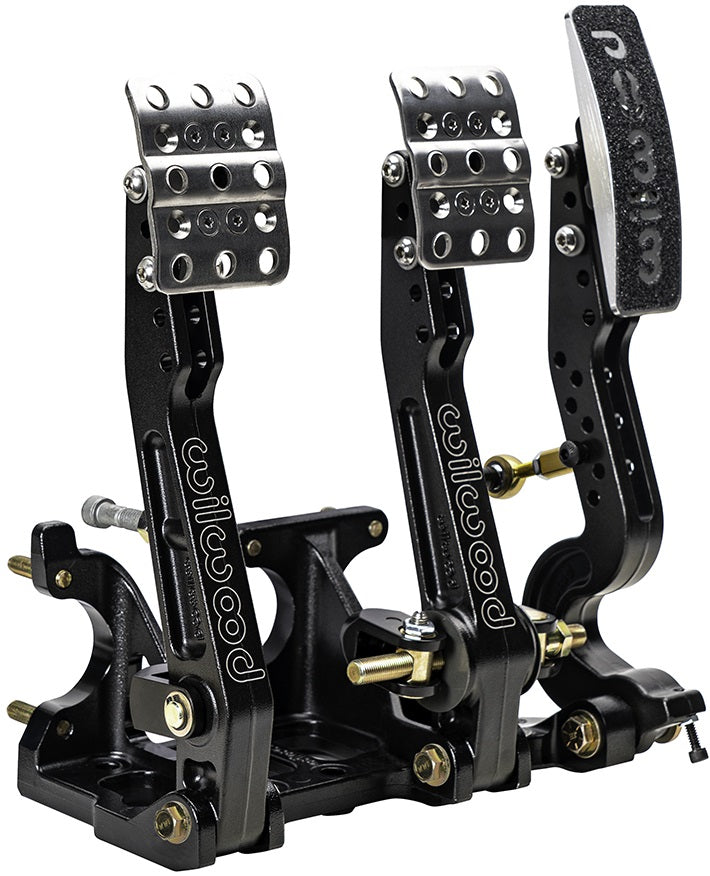

TRIPLE FLOOR MOUNT PEDAL ASSY,ADJ. RATIO,THROTTLE LINKAGE,FRONT ENGINE CARS

BRAND NEW WILWOOD FLOOR MOUNT BRAKE/CLUTCH & THROTTLE PEDAL WITH FRONT THROTTLE LINKAGE, INCLUDES BALANCE BAR, BLACK FINISH, ADJUSTABLE RATIO, FORWARD FACING MOUNT

ADJUSTABLE RATIO BALANCE BAR BRAKE PEDAL, IN A FLOOR MOUNT THROTTLE, BRAKE AND CLUTCH PEDAL ASSEMBLY WITH THROTTLE LINKAGE FOR FRONT ENGINE CARS. PEDAL HEAD ADJUSTS VERTICALLY TO PROVIDE A 4.75, 5.25, OR 5.75:1 RATIO FOR MORE FEEL OR LESS PEDAL EFFORT. A CLUTCH AND TWO BRAKE MASTER CYLINDERS MOUNT TO THE ASSEMBLY, WITH AN ADJUSTABLE BALANCE BAR PROVIDING FRONT TO REAR BRAKE BIAS FINE TUNING. THE THROTTLE PEDAL INCLUDES AN ADJUSTABLE RATIO BELL CRANK FOR FRONT ENGINE APPLICATIONS.

THE NON-SKID WAFFLED PEDAL PADS CAN BE LATERALLY ADJUSTED TO PLACE THE CLUTCH AND BRAKE FROM 3.75 TO 5.75 INCHES ON CENTER FOR DRIVER PREFERENCE. THE PEDALS FEATURE A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARMS. THE BALANCE BAR INCORPORATES A POSITIVE DETENT STOP EVERY FULL TURN TO MAINTAIN ADJUSTMENT POSITION AND CAN BE LOCKED IN PLACE WITH THE INCLUDED JAM NUT, OR USED WITH AN OPTIONAL REMOTE KNOB FOR QUICK ON-TRACK ADJUSTMENTS. A PIN AND CLEVIS PUSHROD ATTACHMENT SYSTEM ENSURES THE SMALLEST POSSIBLE MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. THIS PEDAL ACCEPTS 3 WILWOOD 2.25 INCH VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDERS.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: FLOOR
• MOUNT FACING:FORWARD
• BALANCE BAR: YES
• PEDAL 1 RATIO: 4.75-5.75
• PEDAL 2 RATIO: 4.75-5.75

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PEDAL KIT HERE.
