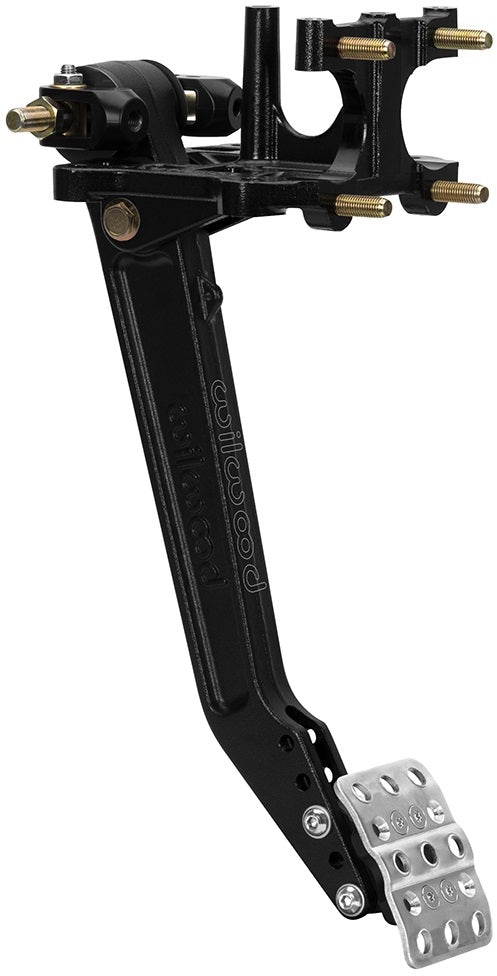

ADJUSTABLE DUAL BRAKE PEDAL,REVERSE MOUNT,ADJUSTABLE RATIO

BRAND NEW WILWOOD SWING MOUNT BRAKE PEDAL WITH BALANCE BAR, BLACK FINISH, ADJUSTABLE RATIO, REVERSE FACING MOUNT

ADJUSTABLE RATIO BALANCE BAR BRAKE PEDAL, IN A REVERSE SWING HANGING ASSEMBLY. PEDAL HEAD ADJUSTS VERTICALLY TO PROVIDE A 5.50, 5.88, OR 6.25:1 RATIO FOR MORE FEEL OR LESS PEDAL EFFORT. TWO BRAKE MASTER CYLINDERS MOUNT TO THE ASSEMBLY, WITH AN ADJUSTABLE BALANCE BAR PROVIDING FRONT TO REAR BRAKE BIAS FINE TUNING. THE NON-SKID WAFFLED PEDAL PAD CAN BE LATERALLY ADJUSTED 1/2 INCH IN EITHER DIRECTION FOR DRIVER PREFERENCE. THE PEDAL FEATURES A LIGHTWEIGHT ALUMINUM FRAME, WITH HIGH STRENGTH REINFORCED I-BEAM STYLE FORGED PEDAL ARMS.

THE BALANCE BAR INCORPORATES A POSITIVE DETENT STOP EVERY FULL TURN TO MAINTAIN ADJUSTMENT POSITION AND CAN BE LOCKED IN PLACE WITH THE INCLUDED JAM NUT, OR USED WITH AN OPTIONAL REMOTE KNOB FOR QUICK ON-TRACK ADJUSTMENTS. A PIN AND CLEVIS PUSHROD ATTACHMENT SYSTEM ENSURES THE SMALLEST POSSIBLE MISALIGNMENT ANGLE FOR BIND FREE OPERATION THROUGH THE ENTIRE RANGE OF TRAVEL. THIS PEDAL ACCEPTS ANY 2 WILWOOD 2.25 INCH VERTICAL MOUNT FLANGE SINGLE OUTLET MASTER CYLINDERS.

SPECS:

• MATERIAL: ALUMINUM
• FINISH: BLACK E-COAT
• MOUNT LOCATION: SWING
• MOUNT FACING:REVERSE
• BALANCE BAR: YES
• PEDAL 1 RATIO: 5.5-6.25:1
• PEDAL 2 RATIO: 5.5-6.25:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PEDAL KIT HERE.
