MASTER CYLINDER KIT,COMPACT REMOTE WITH FINNED RESERVOIR,1 1/8"
MASTER CYLINDER KIT,COMPACT REMOTE WITH FINNED RESERVOIR,1 1/8"
SKU:WIL 261-16841-1.12
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

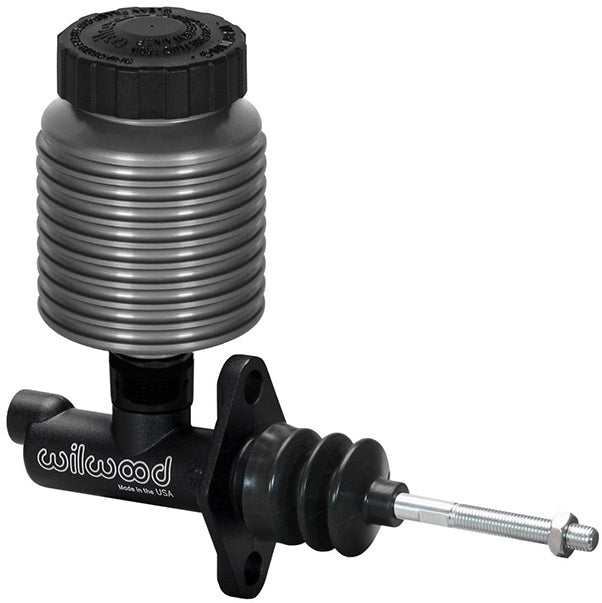

BRAND NEW WILWOOD COMPACT REMOTE RESERVOIR MASTER CYLINDER, BLACK FINISH, 1-1/8" BORE SIZE, SINGLE BOWL, INCLUDES CAP, PUSHROD & BRACKETS
WILWOOD REMOTE RESERVOIR COMPACT MASTER CYLINDERS ARE THE PERFECT SOLUTION WHERE THERE IS LIMITED SPACE FOR THE MASTER CYLINDER AND FLUID RESERVOIR. THIS POPULAR, LIGHTWEIGHT, COMPACT DESIGN IS USED FOR CLUTCH AND SMALL MASTER CYLINDER REQUIREMENTS AND IS WELL KNOWN FOR THEIR DEPENDABILITY.
THEY FEATURE A 7/16 IN.-20 FITTING TO CONNECT TO A REMOTE RESERVOIR. AVAILABLE IN SEVERAL BORE SIZES WITH A FULL 1.4 IN. OF STROKE TO ACCOMMODATE SHORT PEDAL RATIOS, AND HYDRAULIC CLUTCH ACTUATION ON SPACE LIMITED APPLICATIONS.
SPECS:
- BRAND: WILWOOD
- PART TYPE: MASTER CYLINDERS
- MASTER CYLINDER USAGE: BRAKE/CLUTCH
- MASTER CYLINDER BORE SIZE: 1.125 IN.
- POWER BRAKE COMPATIBLE: NO
- OUTLET QUANTITY: 1
- OUTLET SIZE 1: 1/8 IN. NPT
- MASTER CYLINDER MATERIAL: ALUMINUM
- MASTER CYLINDER FINISH: BLACK
- BOWL DESIGN: SINGLE
- MOUNTING HOLE QUANTITY: 2 HOLES
- MOUNTING FLANGE CENTER TO CENTER DISTANCE (IN.): 2.250 IN.
- MASTER CYLINDER STROKE: 1.120 IN.
- REMOTE RESERVOIR: YES
- RESERVOIR INCLUDED: YES
- RESERVOIR MATERIAL: ALUMINUM
- MASTER CYLINDER CAP INCLUDED: YES
- PUSHROD INCLUDED: YES
- MOUNTING BRACKETS INCLUDED: YES
- HARDWARE INCLUDED: NO
- QUANTITY: SOLD INDIVIDUALLY
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MASTER CYLINDER KIT HERE.
