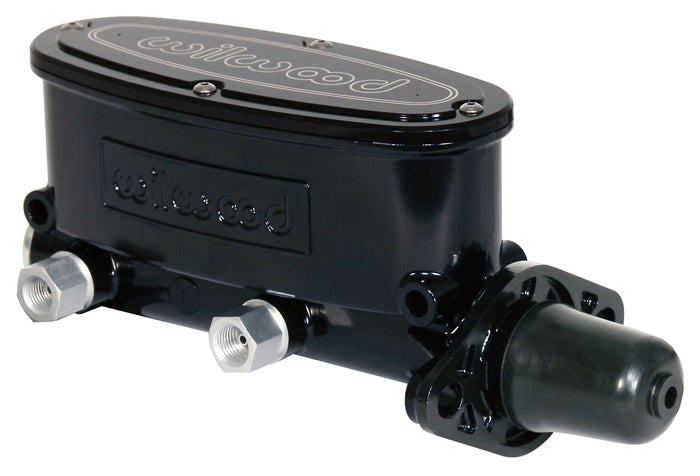

TANDEM MASTER CYLINDER,W/O PUSHROD,1",BLACK

TANDEM MASTER CYLINDER,W/O PUSHROD,1",BLACK

WIL 260-8555-BK

$304.85
$304.85
View full details
  • 1" BORE TANDEM CHAMBER MASTER CYLINDER WITHOUT THE PUSH ROD
  • THIS CYLINDER FEATURES A BLACK COATING
  • WILWOOD TANDEM CHAMBER MASTER CYLINDERS REPRESENT THE LATEST REFINEMENTS IN BRAKE PRESSURE ACTUATION & FLUID CONTROL
  • THE EXCLUSIVE WILWOOD FEATURES INCORPORATED IN THIS INNOVATIVE AND UNIQUE NEW DESIGN MAKE IT THE PERFECT CHOICE FOR A WIDE RANGE OF CUSTOM MANUAL OR POWER BRAKE APPLICATIONS
  • HIGH-PRESSURE DIE CASTING OF A PREMIUM ALLOY PRODUCES A HIGH-CAPACITY BODY THAT IS LIGHTWEIGHT, LOOKS GREAT, AND HAS THE DURABILITY FOR COMPETITION
  • A BLACK ANODIZED, MACHINED BILLET LID CAPTURES A PRESSURE BALANCED BELLOWS GASKET WITH 100% SEALING AGAINST MOISTURE INVASION OR FLUID LEAKAGE

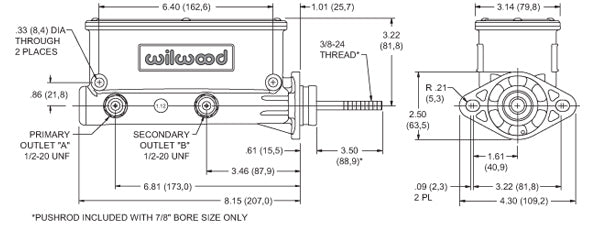

  • THE MOUNTING FLANGE IS SLOTTED TO ACCOMMODATE INSTALLATION ON BOLT CENTERS BETWEEN 3.22" AND 3.40"
  • THAT MAKES IT A SIMPLE BOLT-ON TO MANY OE MOUNTS INCLUDING THE POPULAR CHRYSLER, CORVETTE, GM, & FORD MUSTANG MASTER CYLINDER BOLT PATTERNS
  • THE BODY ALSO FEATURES 2 THROUGH-HOLE MOUNTS ON 6.40" CENTERS FOR SIDE MOUNTING TO FRAME MEMBERS OR OTHER SECURE ELEMENTS OF THE CHASSIS
  • EACH MASTER CYLINDER IS CONFIGURED WITH FULL SEPARATION BETWEEN THE FRONT AND REAR RESERVOIR CHAMBERS AND FLUID OUTLETS
  • THERE IS PRESSURE ACCESS ON BOTH SIDES OF THE PISTON BORE FOR RIGHT OR LEFT HAND PLUMBING BASED ON MOUNT LOCATION
  • A TOTAL PISTON STROKE OF 1.10" IS DISTRIBUTED AT A 2:1 VOLUME RATIO BETWEEN THE PRIMARY & SECONDARY CHAMBERS
