TANDEM MASTER CYLINDER,1" REMOTE,SINGLE PEDALS

TANDEM MASTER CYLINDER,1" REMOTE,SINGLE PEDALS

WIL 260-7563

$207.28
$207.28

Yes, we have this item in stock and ready to ship immediately!
View full details

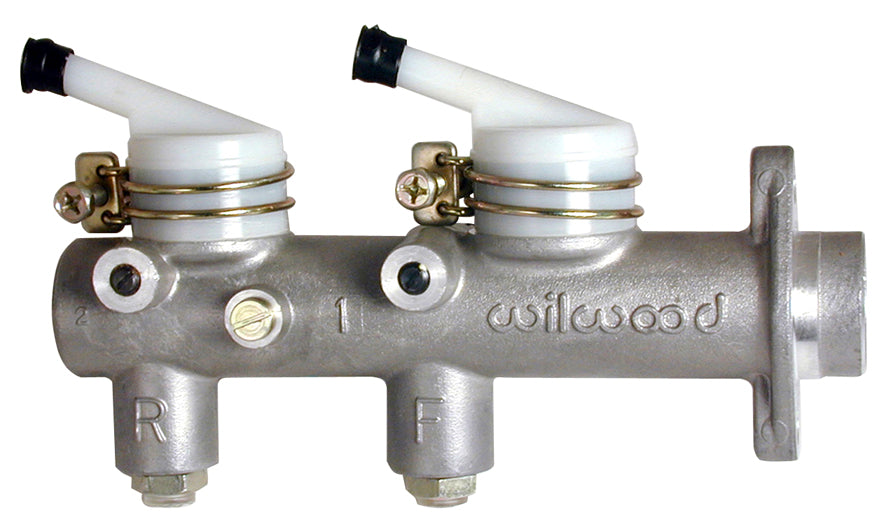

  • 1" BORE COMBINATION REMOTE TANDEM MASTER CYLINDER
  • TANDEM MASTER CYLINDERS PROVIDE ONE OF THE SAFEST WAYS TO ACTUATE FOUR WHEEL OR DUAL CALIPER AXLE BRAKE SYSTEMS
  • THIS VERSATILE, LIGHTWEIGHT, & EASILY ADAPTED MASTER CYLINDER PROVIDES SINGLE PUSH ROD ACTIVATION OF TWO SEPARATE BRAKE FLUID CIRCUITS
  • BY COMPLETELY ISOLATING THE FLUID RESERVOIRS & CIRCUITS, THE FRONT & REAR BRAKES ARE ABLE TO OPERATE INDEPENDENTLY OF EACH OTHER AND PROVIDE A SAFETY NET SHOULD ANY ONE SIDE OF THE SYSTEM BECOME INOPERABLE

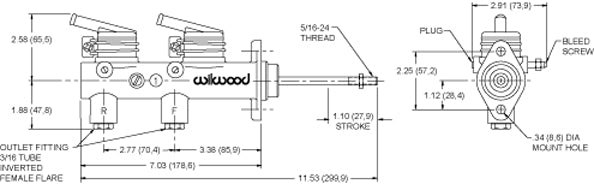

  • THE CYLINDER FEATURES 50/50 OUTPUT FROM A 1.00" BORE WITH 1.10" STROKE
  • IT IS A GREAT MATCH FOR BOLT-ON DISC BRAKE KITS, SYSTEMS CONFIGURED FROM OE COMPONENTS, AND A VARIETY OF INDUSTRIAL APPLICATIONS
  • THIS CYLINDER CAN BE BOLTED DIRECTLY TO WILWOOD & SOUTHWEST SPEED SINGLE MOUNT PEDALS

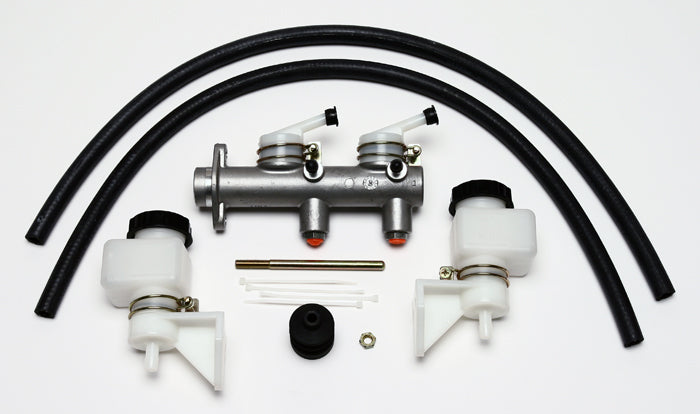

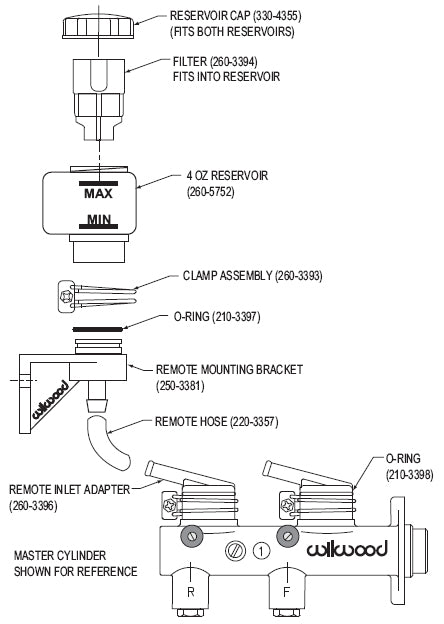

  • THE KIT COMES COMPLETE WITH THE MASTER CYLINDER AND ALL NECESSARY HARDWARE INCLUDING 30" OF HOSE THAT CAN BE CUT TO THE DESIRED LENGTH FOR REMOTE MOUNTING OF THE TWO 4 OUNCE FLUID RESERVOIRS



    • Click Picture
    For Larger View




    Click Picture
    For Larger View




    Click Picture
    For Larger View

    Master Cylinders > Dual Outlet (Tandem) Cylinders > Remote Reservoir Cylinder, Vertical Mount
