MOPAR/DANA 60 DRAG KIT,2.50",REAR,11.44"

MOPAR/DANA 60 DRAG KIT,2.50",REAR,11.44"

WIL 140-8853-B

$745.15
$745.15

Yes, we have this item in stock and ready to ship immediately!
View full details

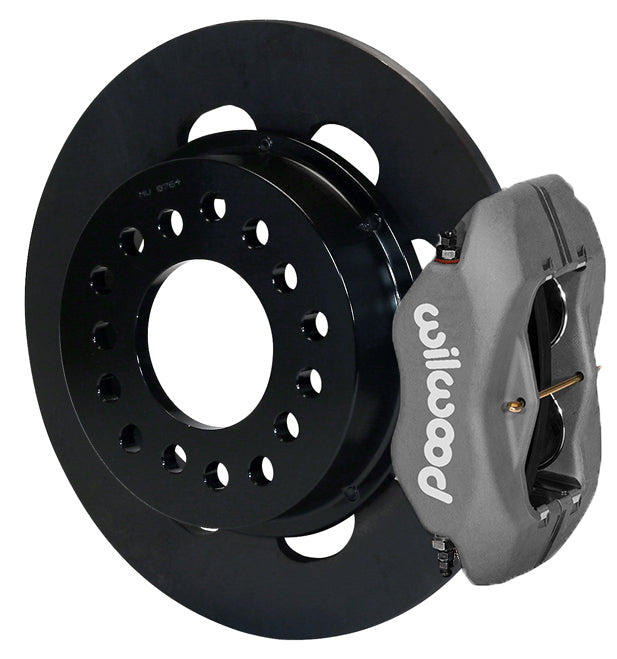

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

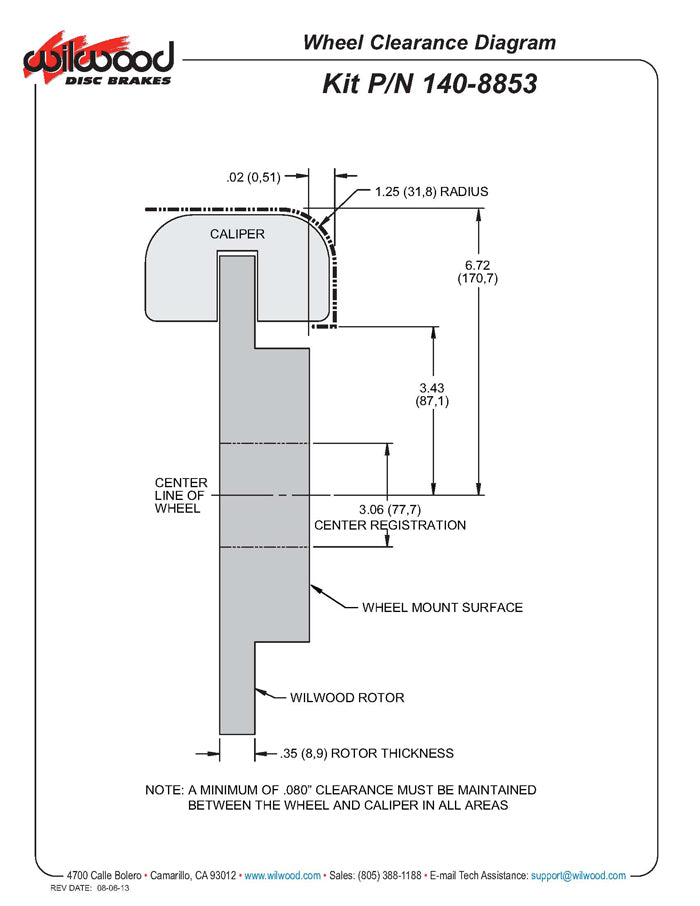

  • WILWOOD BOLT-ON REAR DISC BRAKE KIT FOR MOPAR 8 3/4" & DANA 60 REAR ENDS WITH A 5 BOLT MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • THIS KIT REQUIRES THE USE OF SNAP RING STYLE GREEN BEARINGS (MO400)

  • FEATURING BLACK CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FDL REAR DRAG KITS ARE TRUE BOLT-ON KITS
  • KITS IN THIS GROUP ARE PURPOSE BUILT FOR SPORTSMAN CATEGORY DOOR CARS AND OTHERS WITH FULL FUNCTIONAL FOUR-WHEEL DISC BRAKES
  • MOUNTING KITS SECURELY INSTALL THE FOUR-PISTON FORGED DYNALITE CALIPER OVER 3/8" PLATE STEEL ROTORS THAT ARE MOUNTED TO THE AXLE WITH AN ALUMINUM HAT
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS

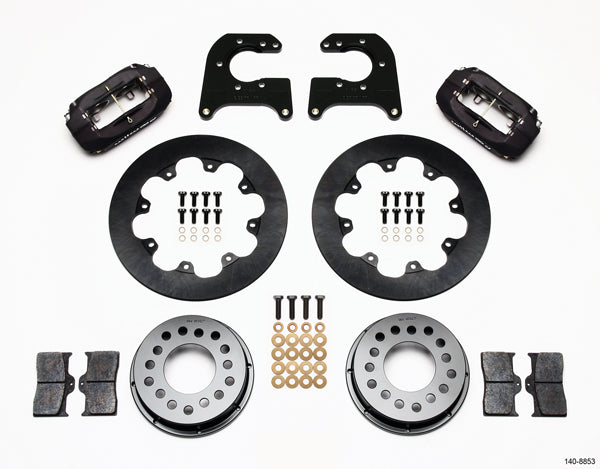

  • KIT INCLUDES:
    *.350" THICK x 11.44" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 26 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View


  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Mopar/Dana Kits > Rear Kits, Mopar/Dana Flange, 2.50, No E-Brake
