66-75 BRONCO,SMALL FORD,REAR,12.19,RED

66-75 BRONCO,SMALL FORD,REAR,12.19,RED

WIL 140-13320R

$1,255.01
$1,255.01

Yes, we have this item in stock and ready to ship immediately!
View full details
  • BRAND NEW WILWOOD PREMIUM BIG BRAKE DYNAPRO LUG MOUNT PARKING BRAKE 4 PISTON CALIPER, BOLT-ON REAR HAT, & 12.19" DISC BRAKE KIT FOR BOTH REAR WHEELS.

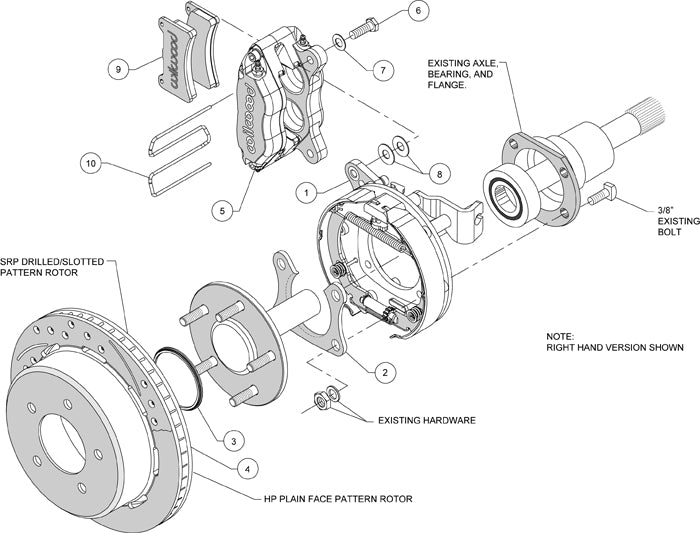

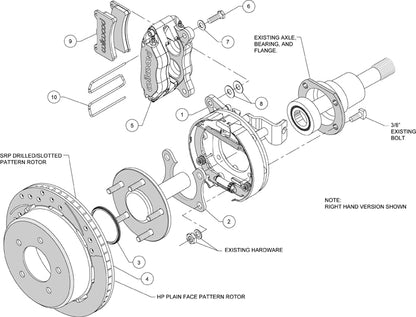

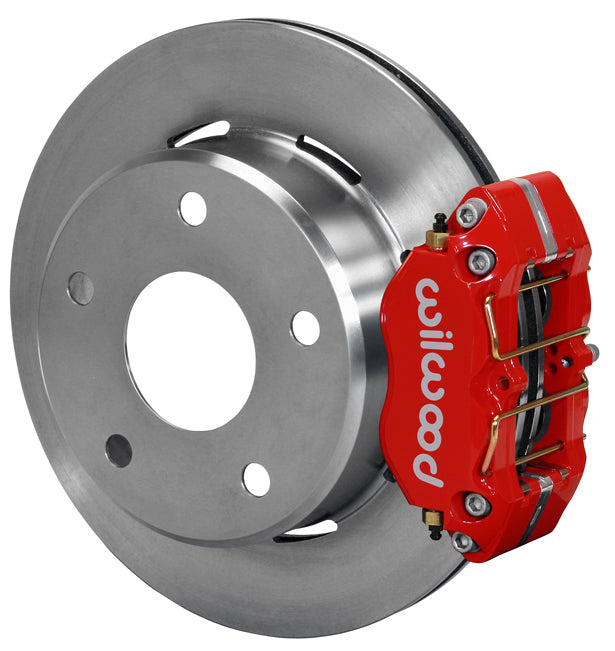

  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • FEATURES POWDER-COATED RED CALIPERS.

    • FITS:

    • 1966-1973 FORD BRONCO (2700 LB AXLE & 10" DRUM BRAKES)*
    • 1974-1975 FORD BRONCO (2900 LB AXLE & 10" DRUM BRAKES)*
    • SMALL BEARING FORD REAR ENDS WITH A 3.336" X 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS BELOW)

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

  • THESE VERSIONS OF DPL PRO-SERIES REAR DISC KITS PROVIDES A COMPLETE SOLUTION FOR BRONCO 65-75 REAR AXLES WITH SMALL FORD FLANGE AND BEARING. (NORMALLY: OE 10 INCH DIAMETER BRAKES AND 2700 OR 2900 GVW.) FORGED BILLET DYNAPRO LUG MOUNT FOUR PISTON CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES AVAILABLE FOR BRONCO PLATFORM.

  • THESE REAR PARKING BRAKE CALIPER KITS PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

  • THESE BIG BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

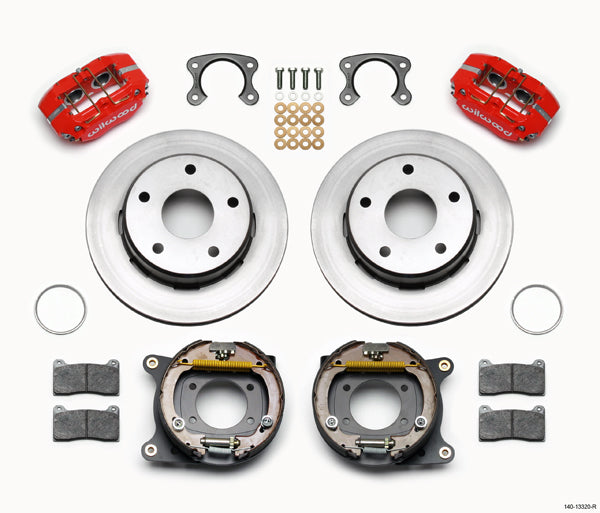

    • KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

    • 0.81" THICK X 12.19" O.D. ROTORS
    • DYNAPRO LUG MOUNT PARKING BRAKE 4 PISTON CALIPERS - RED
    • CALIPER MOUNTING BRACKETS
    • BP-10 SMART COMPOUND BRAKE PADS
    • ULTRALITE HP & BRAKE HATS
    • ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

  • COMPLETE KIT WEIGHS APPROXIMATELY 50 LBS.

  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View
