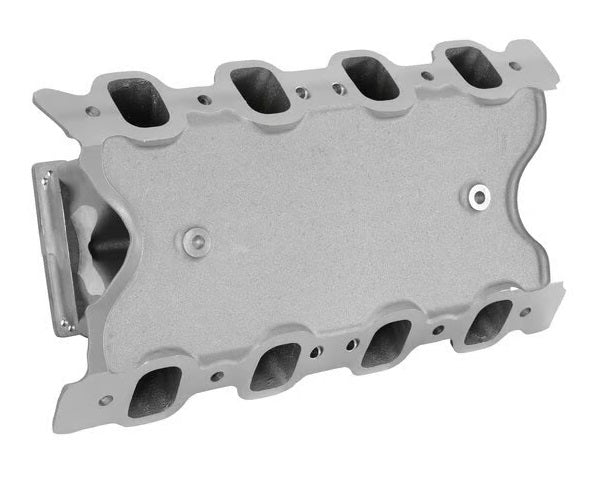

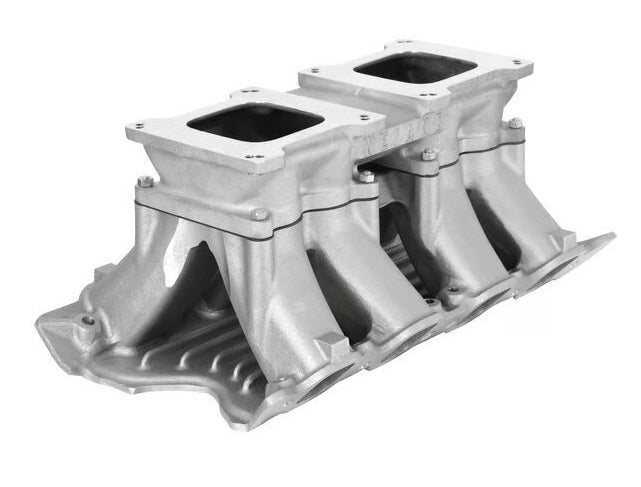

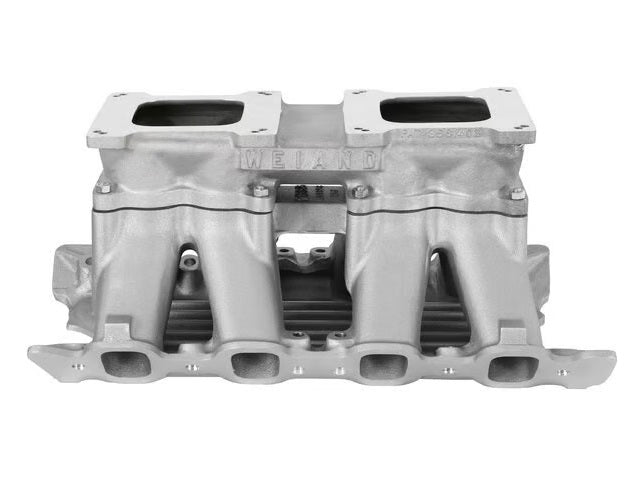

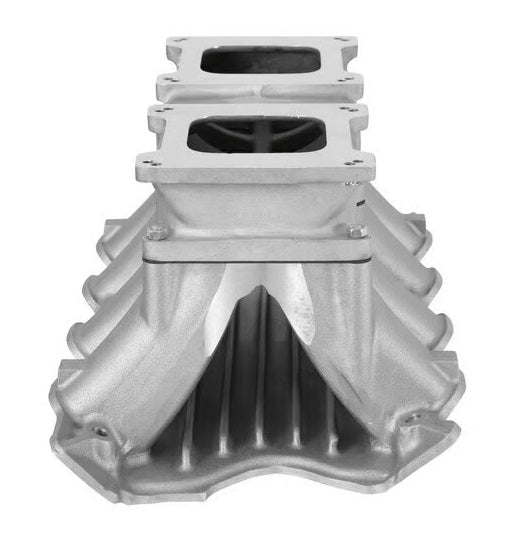

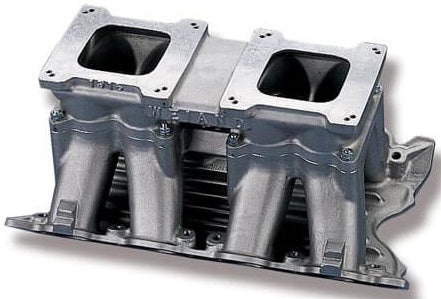

INTAKE MANIFOLD,FORD 351C,4V,HI-RAM

Brand New Weiand Hi-Ram Intake Manifold, 3200-9000 RPM, 351 Cleveland V8 4V Head, Fits Ford Small Block V8 (Part #1994WND).

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 3,200 to 9,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads.

This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!

NOTE: Stock electronic ignition will NOT clear.

Features:

• 2 x 4 carburetor top
• Square flange carburetor mounting
• Special D-shaped port runner design
• Large volume plenum
• Power band: 3200-9000 RPM
• Height: Front 8.81", Rear 9.25"
• Port Size: 2.36” height 1.63" width
• Carb Flange Center-To Center 8-3/4"
• Weiand Nostalgia Series Intake Manifold

Specs:

• Brand: Weiand
• Construction: Cast
• Engine: Ford Cleveland
• Finish: Satin
• Front Height: 8.81"
• Fuel System Type: Carb
• Manifold Type: Hi-Ram
• Product Type: Intake Manifold
• Rear Height: 9.25"
• RPM Power Band: 3200-9000

You can view and download the general information here, and bolt notice here.
