ZONE 2010-2024 TOYOTA 4RUNNER 4WD 3" SUSPENSION LIFT KIT WITH NITRO SHOCKS
ZONE 2010-2024 TOYOTA 4RUNNER 4WD 3" SUSPENSION LIFT KIT WITH NITRO SHOCKS
SKU:STU ZONT15N
Couldn't load pickup availability

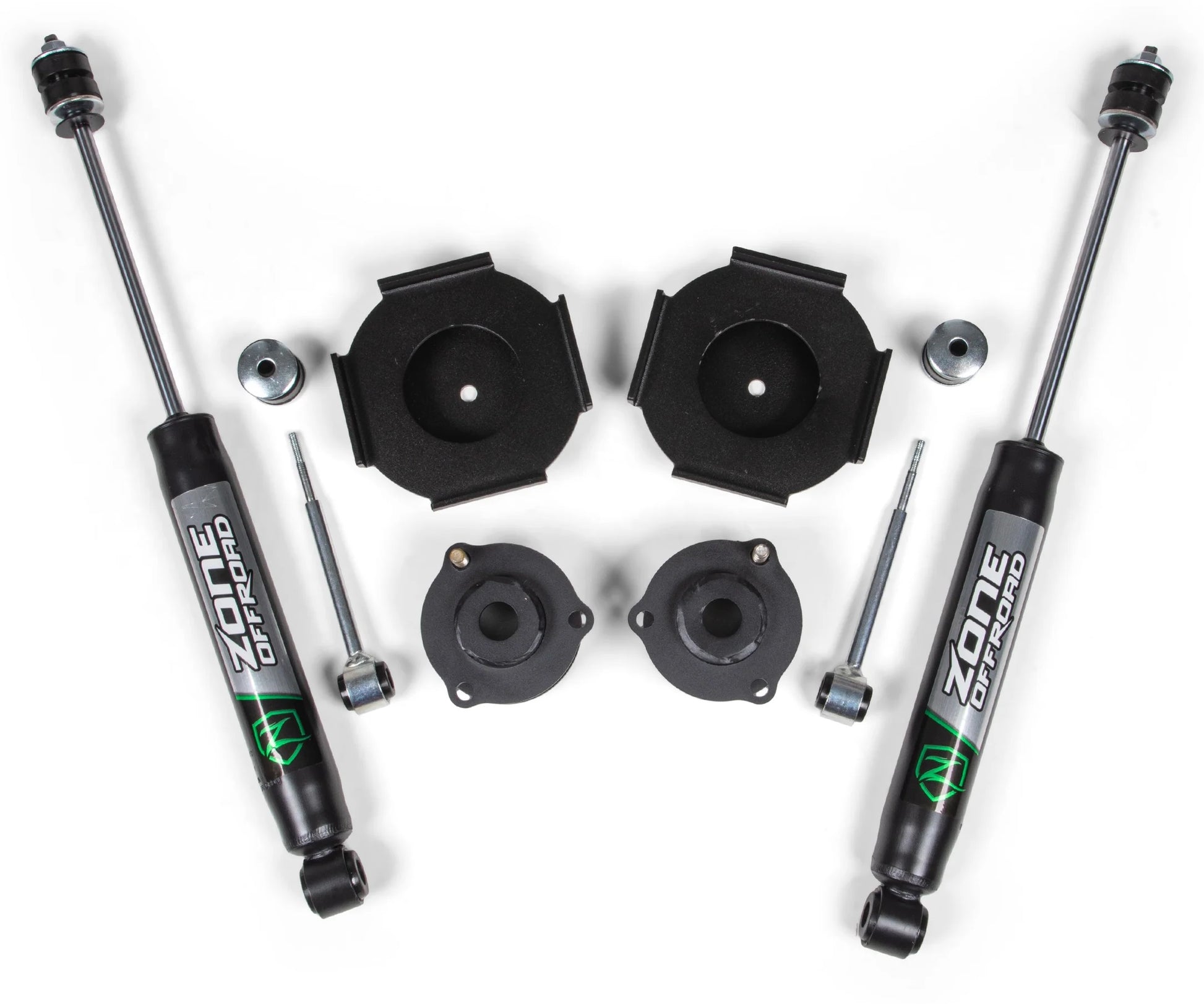

Brand New Zone Offroad 3" Coil Spacer & Strut Spacer Lift Kit with Nitro Shocks (Part #ZONT15N).
Give your 2010-2024 Toyota 4Runner a little lift and improve the ride with this 3-inch lift kit from Zone Off-Road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires! Specially designed for the 4Runner, this 3" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. Up front the lift kit includes top mounted steel strut spacers. In the rear this kit utilizes top mounted coil spacers and rear sway bar links.
Fits:
- Toyota:
- 2010-2024 4Runner 4WD
Notes:
- Will not work with factory KDSS sway bar system
- Will not work on models equipped with the XREAS shock system. If completely removing XREAS system from vehicle, kit can be installed/optioned with front OE replacement struts, front Fox Coilovers, rear Fox Adventure Series shocks, or rear Nitro Series shocks.
- Recommended Tires & Wheels (Trimming may be required): 285 / 70 with 17 x 8 and 5 in. Backspace
Features:
- Maintains factory like ride quality.
- Upgraded shocks with vehicle-specific valving for better control.
- Other equivalent tire/wheel size options should work - may require minor trimming for some combinations.
Nitro Series:
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
Specs:
- Front Lift Height: 3"
- Rear Lift Height: 1.5"
- Front Lift Method: Coil Spacer & Strut Spacer
- Rear Lift Method: Block
You can view and download the assembly/instruction booklet here.
