ZONE 2007-2011 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT,FOX SHOCKS

ZONE 2007-2011 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT,FOX SHOCKS

STU ZONJ13F

$799.99
$799.99

Yes, we have this item in stock and ready to ship immediately!
View full details

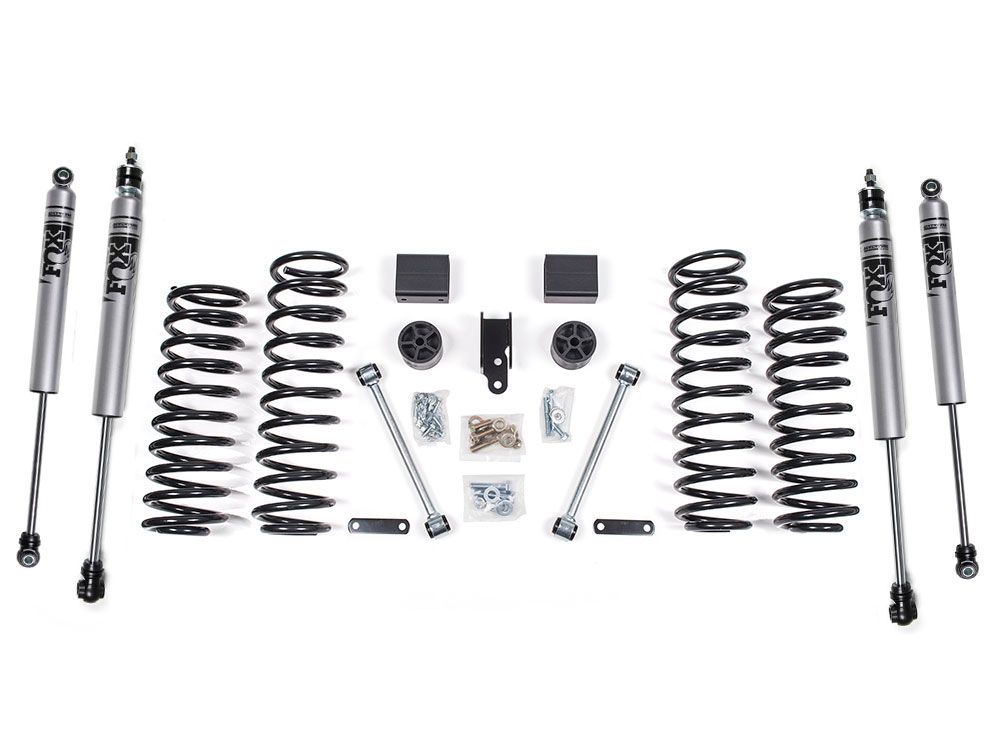

Brand New Zone Offroad 3" Coil Spring Lift Kit with Fox Shocks (Part #ZONJ13N).

Get the look and the performance you want for your Jeep. This 3" Lift Kit for your 4WD 2007 - 2011 Jeep Wrangler (JK) will clear 35" tires and includes heavy-duty coil spacers that offer a dramatic improvement in both ground clearance and wheel travel.

Fox Performance Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Jeep:
    • 2007-2011 Wrangler JK 4 Door 4WD

Features:

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 3"
  • Material: Steel
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 17 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 18 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

Notes:

  • Stock Control Arms? Alignment cam locks will add 2 degrees of caster when used on stock length control arms, which will better align your wheels.
  • Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
  • Will work on Rubicon models.

You can view and download the complete assembly instruction booklet here.
