ZONE 2002-2005 DODGE RAM 1500 4WD 5" SUSPENSION LIFT KIT

ZONE 2002-2005 DODGE RAM 1500 4WD 5" SUSPENSION LIFT KIT

STU ZOND14

$1,123.70
$1,123.70
View full details

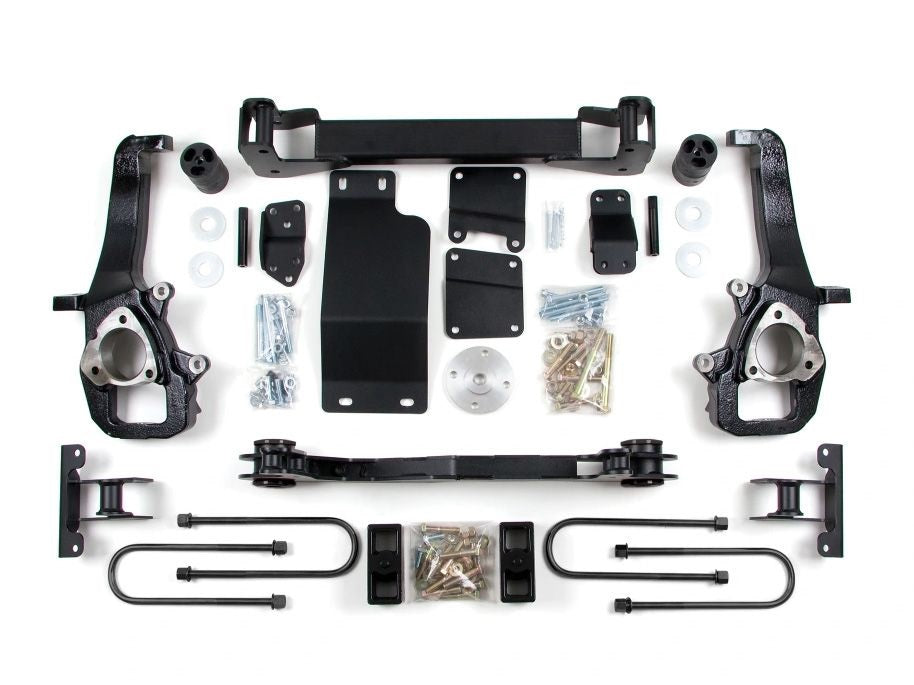

Brand New Zone Offroad 5" Suspension Lift Kit (Part #ZOND14).

Turn heads and drop jaws with this 5" Lift Kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 4WD truck. If you’re going to do it, do it right.

Fits:

  • Dodge:
    • 2002-2005 Ram 1500 4WD

Notes:

  • Will NOT work with All-Wheel Drive models.
  • This lift kit is designed to provide 5" front and 3" rear lift over stock, however these trucks came from the factory with varying front/rear ride heights so additional rear modifications may be necessary to achieve desired vehicle stance.
  • Factory 17" wheels cannot be reinstalled with lift kit due to tie rod clearance.

  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry.
  • High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles.

Specs:

    • Front Lift Method: Crossmember & Strut Spacer
    • Front Lift Height: 5"
    • Rear Lift Method: Block
    • Rear Lift Height: 3"

    You can view and download the assembly/instruction booklet here.
