BDS 2023-2025 FORD F-250,F-350 4WD DIESEL 5" LIFT KIT,4-LINK,BLOCK,2.5 COILOVERS

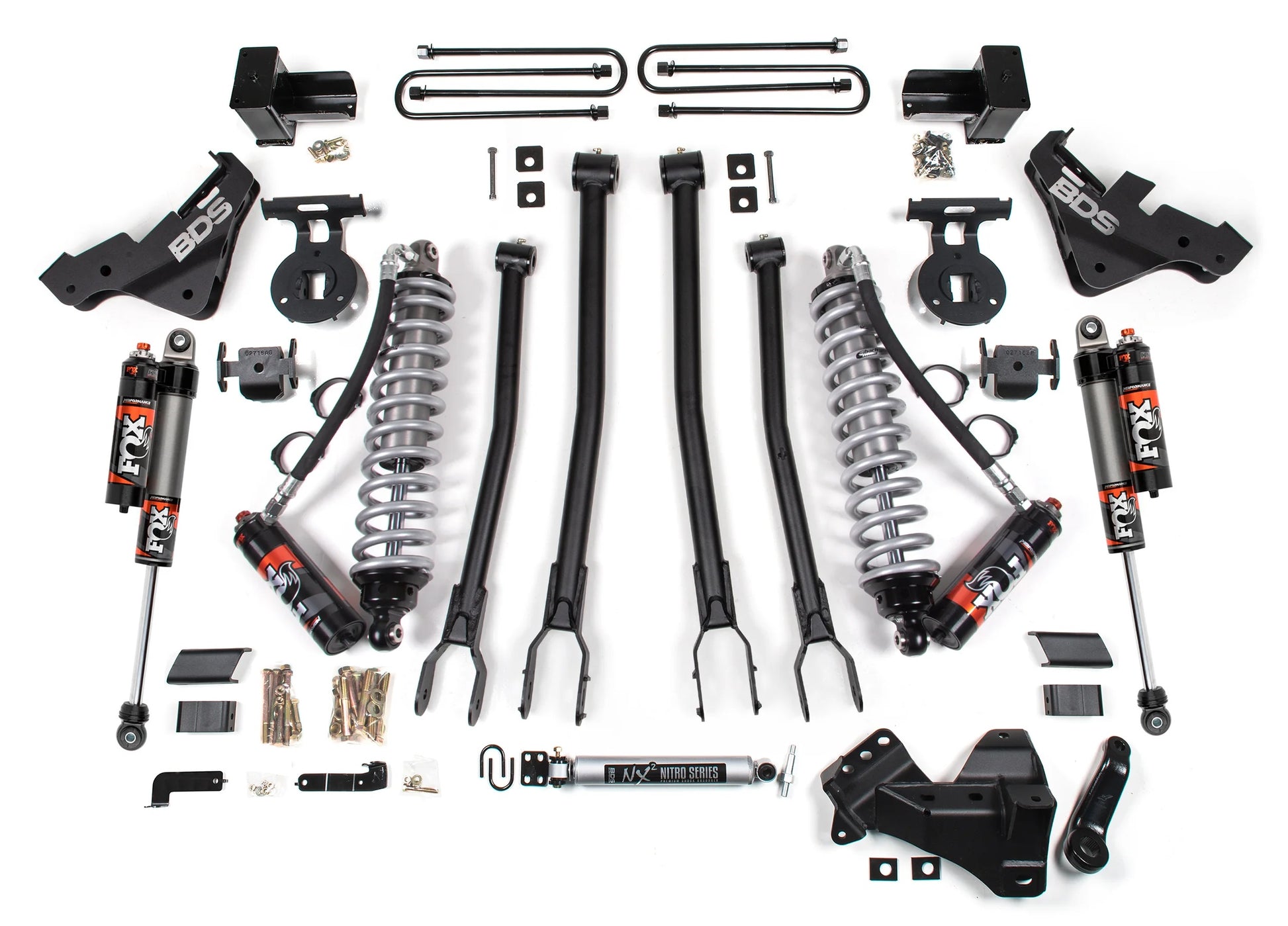

Brand New BDS Suspension 5" Lift Kit with Front FOX 2.5 Coilovers, 4-Link, Rear FOX 2.5 Shocks & Block Kit (Part #BDS2246PES).

Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:

  • 2023-2025 F-250 Super Duty 4WD Diesel
  • 2023-2025 F-350 Super Duty 4WD Diesel

Notes:

• Ford recommends the pitman arm nut is replaced prior to pitman arm installation.

• If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.

• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.

• Installation requires a torque wrench capable of 405 ft-lbs.

• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.

• SRW Models only
• Recommended Tires & Wheels (Trimming May Be Required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Complete bolt in installation.

• Pro-Ride dual rate springs provide superior ride quality vs OEM springs.

• Heavy Duty 4-Link control arms offer improved handling, stability and strength.

• 4-Link suspension offers superior caster control through suspension travel.

• Improved drivability from corrected geometry and steering angles.

• Fabricated rear blocks provide a level stance from front to rear.

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilovers
• Front Lift Height: 5"
• Rear Lift Method: Block
• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here.
