LOWERING SYSTEM,FRONT & REAR,15-26 FORD F-150 4WD

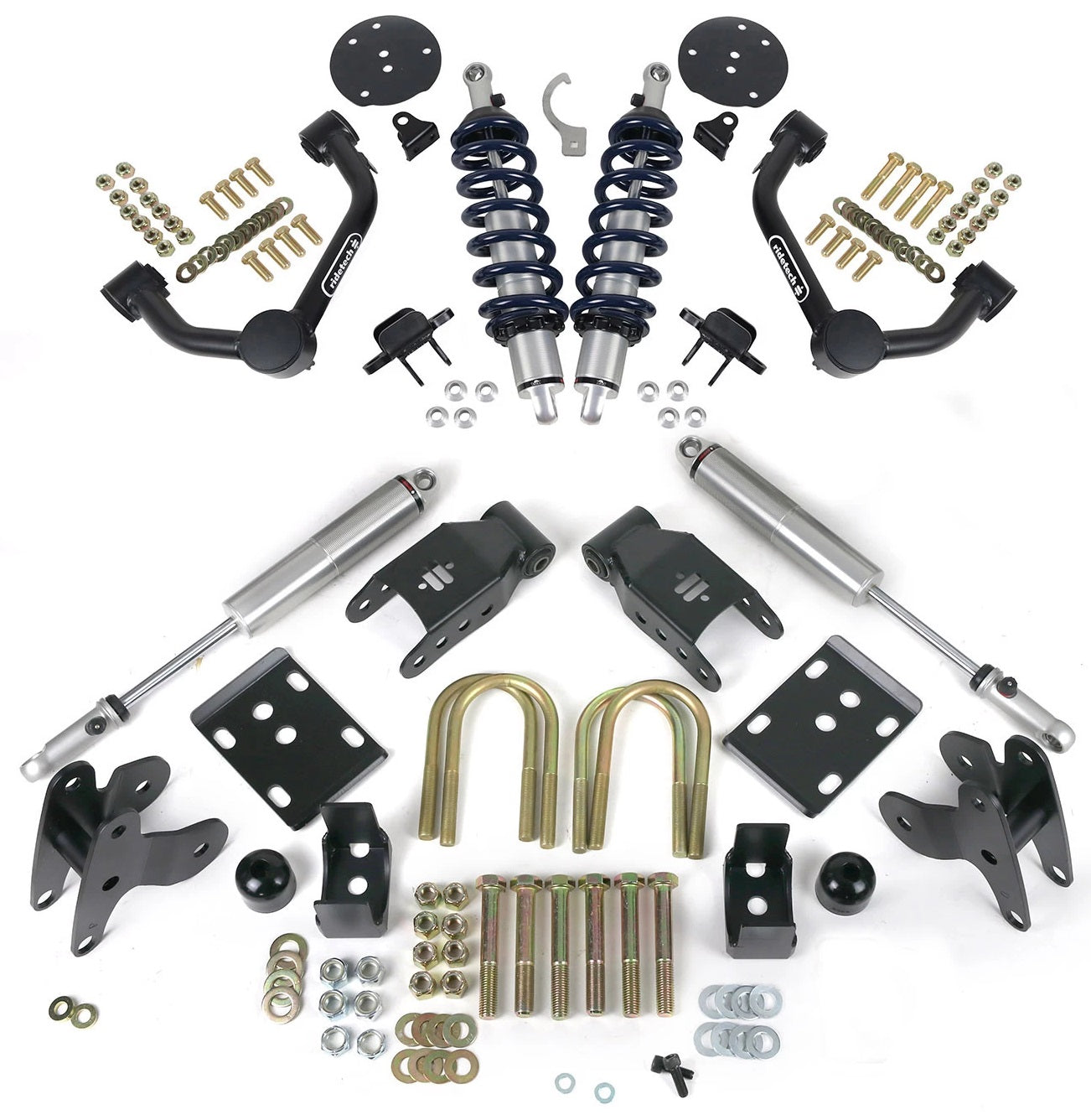

Brand New Ridetech Front & Rear Performance Lowering Kit (Part #12290115).

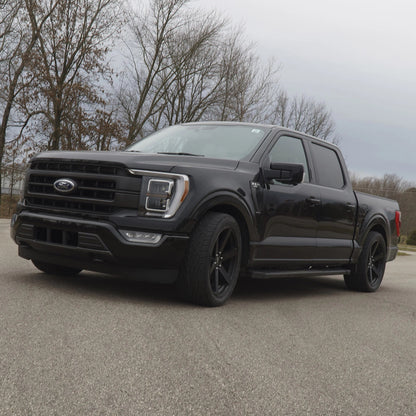

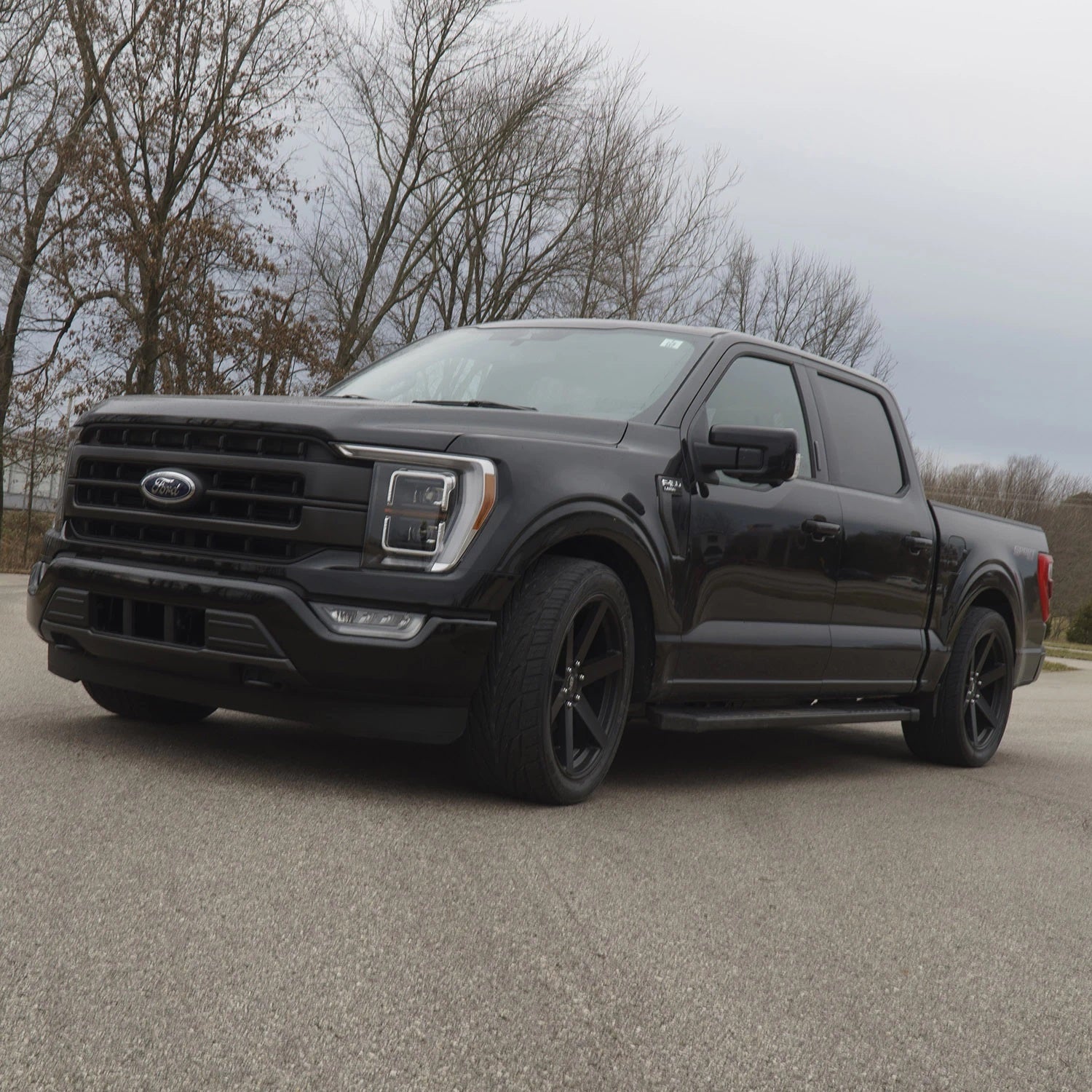

Lower your current-gen Ford F150 up to 3 inches up front and 5.5 inches in the rear with Ridetech lowering suspension system. More than a lowering kit, system will turn your vehicle into a high-performance muscle truck with better stance, handling and ride quality. The Ridetech lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes everything you need to lower your Ford F150 platform.

Compatible with:

• Ford:
  • 2015-2026 F-150 4WD

Notes:

• Does not fit PowerBoost Hybrid trucks (driveshaft clearance).

• Trucks equipped with two height sensors on driver side only (Headlight Sensors option) require bracket kit Part #12299501

• Trucks equipped with four headlight sensors (On-board Scale option) require bracket kit Part #12299502

• Compatible with BlueCruise equipped trucks

Features:

• Lowered stance

• Adjustable ride height

• 1.5″ – 3” front drop

• 3.5″ – 5.5” rear drop

• Improved ride quality & sharper handling

• New tubular upper control arm provides camber and caster improvements at lower ride height to improve handling

• Adjustable Ridetech / Fox Shocks

• Coil-over front / HQ Series rear

• Aluminum Body

• Mono tube / gas pressure

• Adjustable valving

• Bolt-on installation

• No welding

• Adjustable ride height

• Front coil-overs adjustable spring seats

• Rear leaf shackles offers 2” of adjustment

• Optional Traction bars eliminate nearly all wheel hop while still allowing for full load capacity and smooth compliant ride. Sold Separately. Required on supercharged trucks.

You can view and download the complete assembly instruction booklet here.
