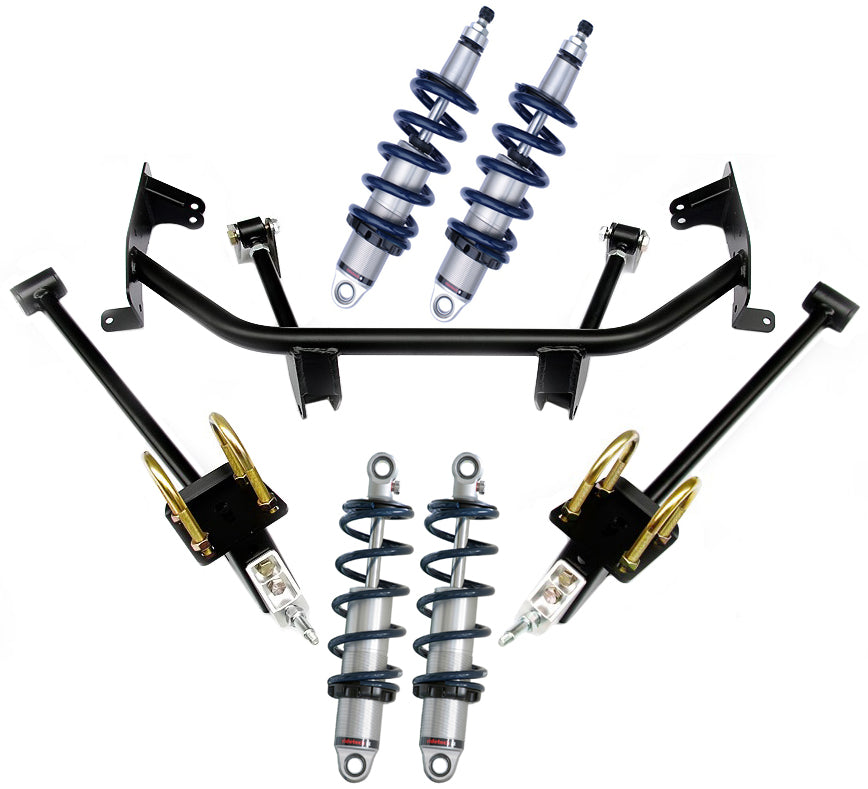

COILOVER & 4-LINK SYSTEM,60-64 GALAXIE

Brand New Ridetech Coilover & 4-Link System (Ridetech Part #12160210).

This Ridetech System for the 1960-1964 Ford/Mercury includes the coilovers and 4-link to give your vintage hot rod modern drivability. The package contains a Bolt-In 4 Link System and 4 HQ Series Coilovers for every corner of your vehicle. The benefit of buying this complete system is that it takes all of the guesswork out when purchasing a new suspension. Ridetech has spent hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.

Fits:

• Ford:
  • 1960-1964 Country Sedan
  • 1960-1964 Country Squire
  • 1960-1964 Galaxie
  • 1962-1964 Galaxie 500
  • 1960-1964 Ranch Wagon
  • 1960-1961 Starliner
  • 1960-1964 Sunliner
• Mercury:
  • 1961-1964 Colony Park
  • 1961-1964 Commuter
  • 1963-1964 Marauder
  • 1961-1964 Montclair
  • 1961-1964 Monterey
  • 1964 Park Lane

Ridetech System Includes:

• Front HQ Series Adjustable Coilovers:
  • With the HQ Series of Coilovers, you'll get high performance handling, exceptional ride quality and the ability to adjust your car's ride height. The Ridetech Coilovers feature 24-position rebound adjustment to help you fine tune the shocks to your driving preferences and vehicle demands. With large 1.834" pistons, heavy-duty 5/8" shafts, and impact forged bodies, HQ Series Coilovers are built to perform and made to last. They're backed by the Ridetech exclusive 1,000,001 mile warranty. Ridetech develops the shock calibrations and spring rates through thousands of cross-country test miles, on their exclusive test track and at competition events from coast to coast. Ridetech understands the suspension needs of your F-body better than any other company. This system includes two front HQ Series Coilover shocks and two Hyperco coil springs with proper spring rate.
• Rear HQ Series Adjustable Coilovers:
  • These Rear Coilovers are designed to provide the optimal ride quality and ease of installation for Ridetech Bolt-On 4-Link systems. Ridetech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new Ridetech Coilovers.
  • Monotube gas pressure design offers superior fade free performance
  • Impact forged aluminum body provides superior strength and reliable service
  • Larger 1.834" piston provides outstanding ride quality
  • Double sealed rod guide with dust cover eliminates oil leakage
  • 5/8" chrome shock shaft
  • Anodized finish protects against corrosion
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2" bore x 1" aramid composite lined bearings for noise free operation
• Rear Bolt-on 4-Link Kit:
  • The Ridetech Bolt-On 4-Link installs onto the OEM leaf spring mounts of your prized muscle car no cutting, no fabrication, just four small tabs to weld to the axle for your upper bars. The ride height of your car is typically lowered by approximately 2”. The ride quality is dramatically improved over stock instead of a wallowing soft ride you’ll experience a crisp, controlled ride quality that will inspire more confidence for performance driving.
  • The area of largest improvement is the handling and cornering performance. The system eliminates the OEM leaf spring and replaces them with a 4 link rear suspension. The 4 link bars offer more precise positioning of the rear axle to eliminate flexing and increase stability through the corners. When combined with a ShockWave or a Ridetech Coilover front suspension kit your classic muscle car can now enjoy the benefits of modern handling and ride quality technology. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
  • If you want your classic muscle car to ride and drive like a modern performance car, the Bolt-On 4-Link system is the perfect solution!
  • We wouldn’t expect you to bolt on any suspension component that we haven’t thoroughly tested. We regularly use our cars in a wide range of performance driving environments, as well as plain ol’ highway time. Our 4-Link systems have proven time and time again to provide not only ground shaking traction, but a great highway ride as well.

You can view and download the complete assembly instruction booklet for the coilover 4-link kit here.
