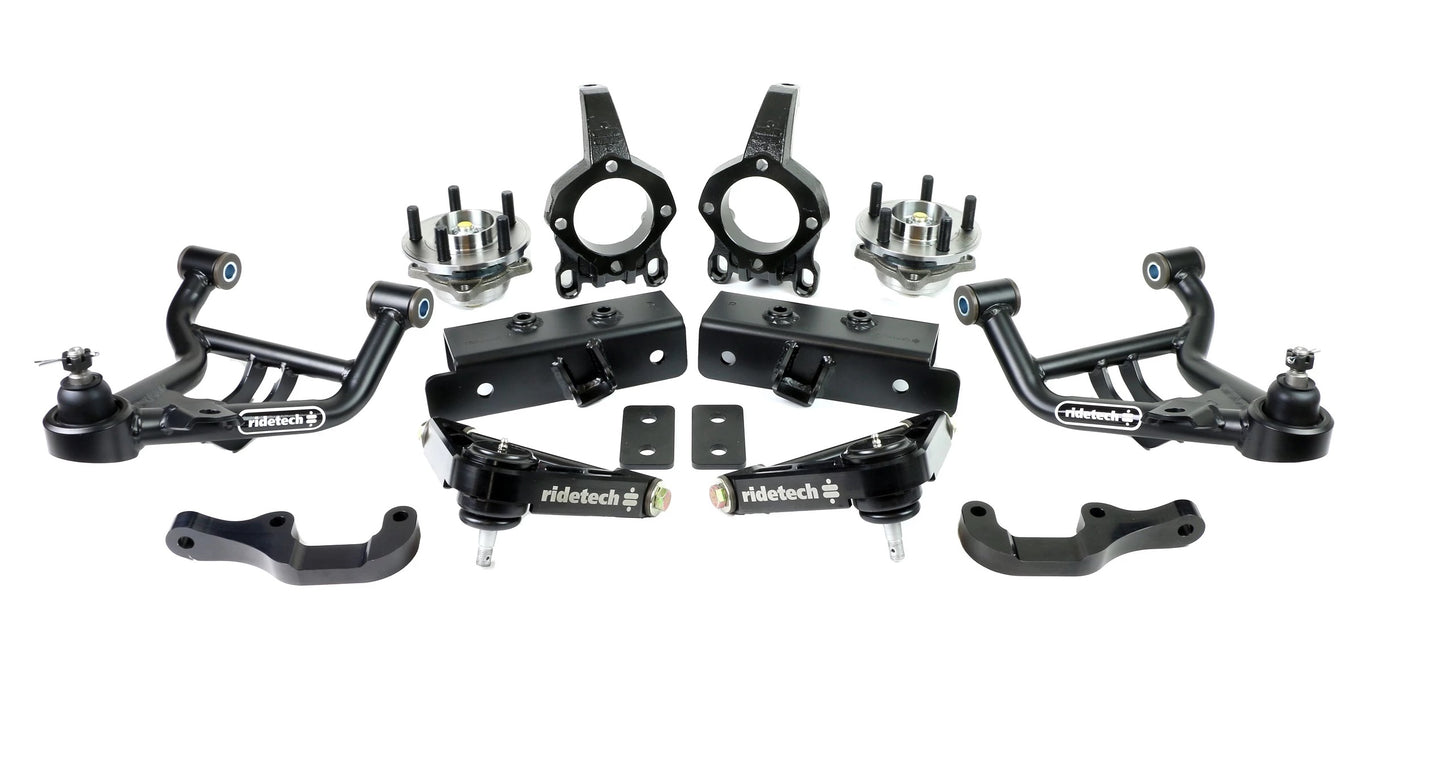

FRONT SLA SUSPENSION SYSTEM,79-93 FORD MUSTANG STOCK K-MEMBER

Brand New Ridetech Front SLA Suspension System, Compatible With 1979-1993 Mustang With Stock K-Member (Ridetech Part #12122600).

This bolt-in SLA (Short-Long-Arm) suspension system replaces the stock MacPherson strut design with a billet aluminum upper control arm, tubular lower arm and spindles with S550/S650 Mustang hubs. The factory strut design offers very little camber gain and poor overall geometry. This design greatly improves negative camber gain, which positions the tire perpendicular to the pavement through the corners without the need for excessive static camber and overly stiff spring rates. Caster, roll center and Ackerman angles were also optimized. Compatible with either Ridetech Coil-overs or Shockwave air suspension (sold separately).

Fits:

• Ford:

  • 1979-1993 Mustang


Fitment Info:

• Fit’s Stock K-Member (except 84-86 SVO)

• Uses S550/S650 (15-24) or SN95 (94-04) Mustang brake systems. (Caliper brackets sold separately)

• 17″ minimum wheel diameter

• Compatible with stock and most aftermarket sway bars

• Perfect pairing with the Ridetech Rear IRS Conversion (replaces live rear axle)

Features:

• Replaces OE MacPherson suspension with superior double-wishbone design for improved handling and geometry

• Incorporates an upper control arm to induce much needed negative camber gain.

• Caster, roll center, bumpsteer and Ackerman angles are optimized.

• Bolt-in frame surrounds create attachment points for the upper control arms and the shocks, this keeps the load on the frame rails for maximum strength and reduced NVH.

• Upper and lower arms feature Delrin bushings infused with Teflon to minimize stiction and eliminate the need for lubrication.

• Spindles include Moog S550 Mustang rear hubs for maximum strength, consistent braking and reduced maintenance.

• Lower control arm design improves tire clearance and steering angle, 30 degree’s with up to a 275mm wide tire.

Specs:

• Negative Camber Gain: 1.25 deg./in.

• Positive Caster: 7-9 deg.

• Bump Steer: Under .050″

• Lowers Ride Height: 2"

• Weight Reduction To Stock: 50lbs

• Track Width: Stock

You can view and download the assembly/instruction booklet here.
