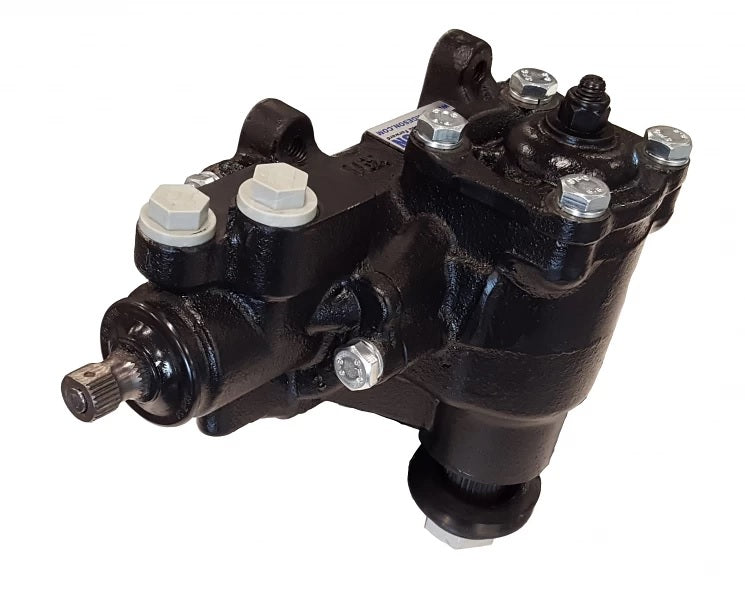

BORGESON BOX,67-92 F-BODY,64-77 A-BODY,65-70 B-BODY

Brand New Borgeson Street and Performance Quick Ratio GM Power Steering Box, 12.7:1 Ratio (Part #11009565).

Borgeson Street & Performance Quick Ratio GM Power Steering Box. Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800 series in most 1964 and up GM muscle cars. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms.  Steering box includes adapters to be able to use either O-ring or flare style hose connections. This new Borgeson steering box uses a ¾”-30 spline input shaft and all pre-1977 cars will require a lower rag joint half.

NOTE: Cars switching from manual steering will require a power steering pitman arm. Rag joint half-coupler is necessary to adapt Pre-1979 stock steering shaft (D-Shape) to 600 Steering Gear.

Compatible with:

• Buick
  • 1978-1988 Regal
  • 1964-1977 Skylark
• Chevrolet
  • 1967-1992 Camaro
  • 1965-1970 Caprice
  • 1964-1977 Chevelle
  • 1964-1977 El Camino

  • 1965-1970 Impala
  • 1968-1974 Nova
  • 1978-1988 Malibu
  • 1978-1988 Monte Carlo
  • 1982-2002 S-10
• GMC
  • 1964-1977 GM “A” Body
  • 1978-1988 GM “G” Body
  • 1982-2002 S-15
• Oldsmobile
  • 1964-1988 Cutlass
• Pontiac
  • 1967-1992 Firebird

You can view and download the dimension/instruction booklet here.
