LS1 TO LS1/T56/CHEVY

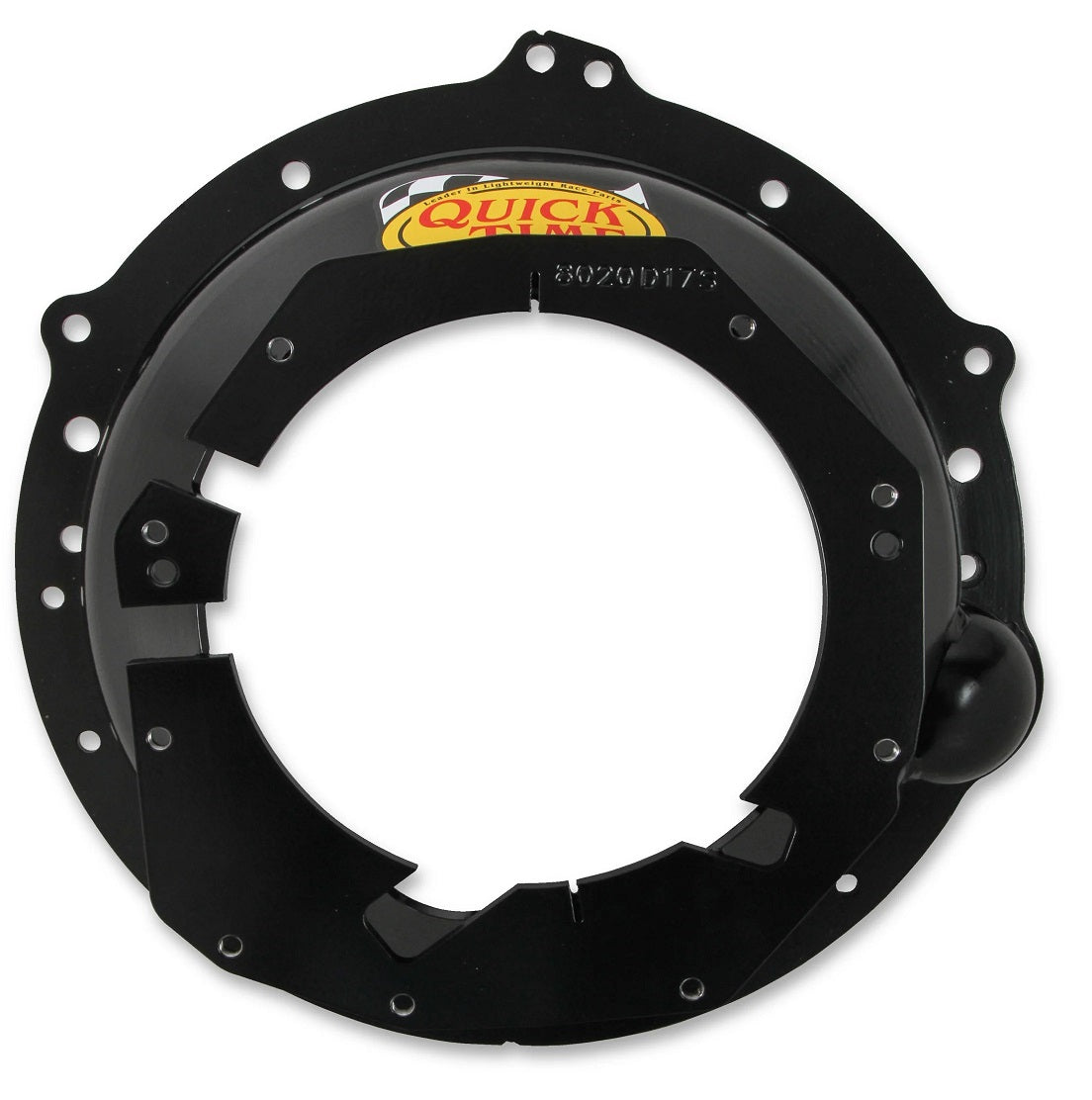

Brand New QuickTime Bellhousing - Chevy LS and Late Model LT - LS T-56 Transmission (Part #RM-8020).

The Quick Time RM-8020 bellhousing connects Gen 3 and 4 LS and Late Model LT1/4 (2014 - Current) engines to T-56 Chevy LS, and T56 Magnum transmissions.  This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.  This bellhousing is a universal fit bellhousing and is not vehicle specific.  The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.  This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.  Note: (Transmission Mounting Bolts Not Included)

Features:

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Specs:

• Brand: Quick Time
• Clutch Operation: Hydraulic
• Color: Black
• Engine: Chevy LT1 | Chevy LT4 | GM Gen III/IV (LS)
• Finish: Semi-gloss
• Flywheel: 168 Tooth
• Height (in): 5.5
• Material: Steel
• SFI Certification: 6.1
• Transmission: T56 GM | T56 Magnum
• Transmission Type: Manual
