CARBURETOR 450 CFM V.S

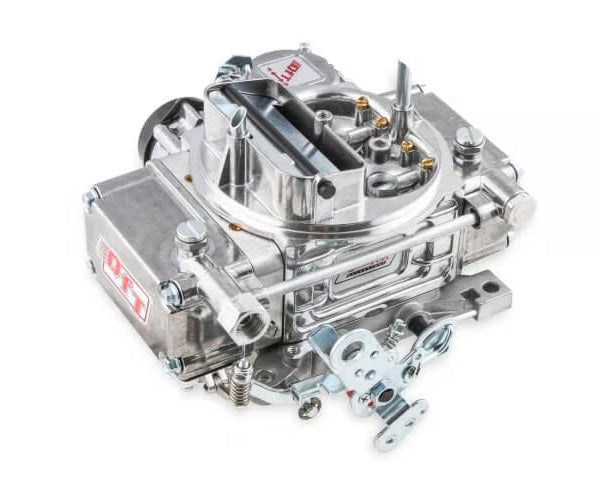

Brand New Quick Fuel Slayer Series Carburetor - 450 CFM (Part #SL-450-VS).

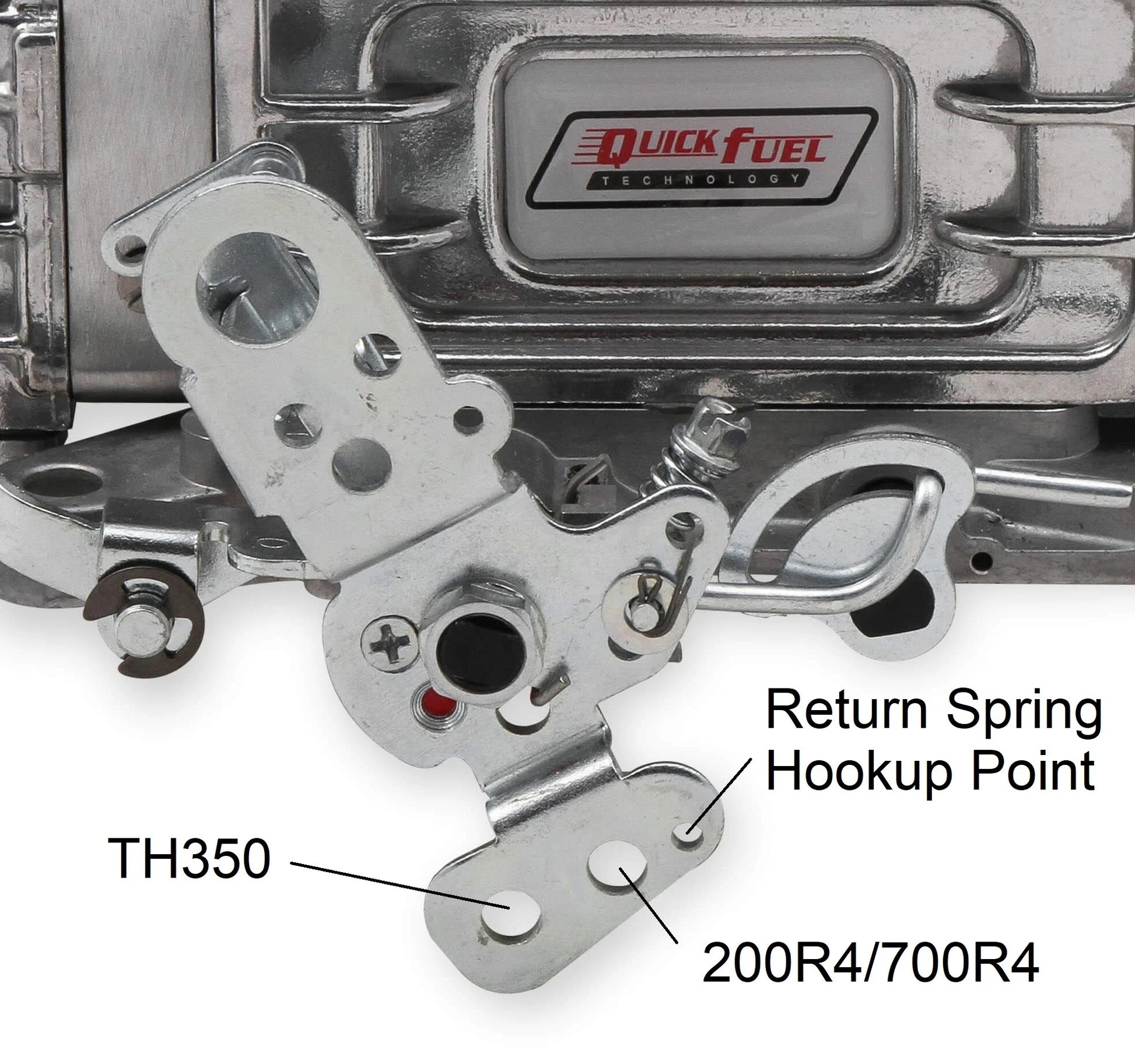

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

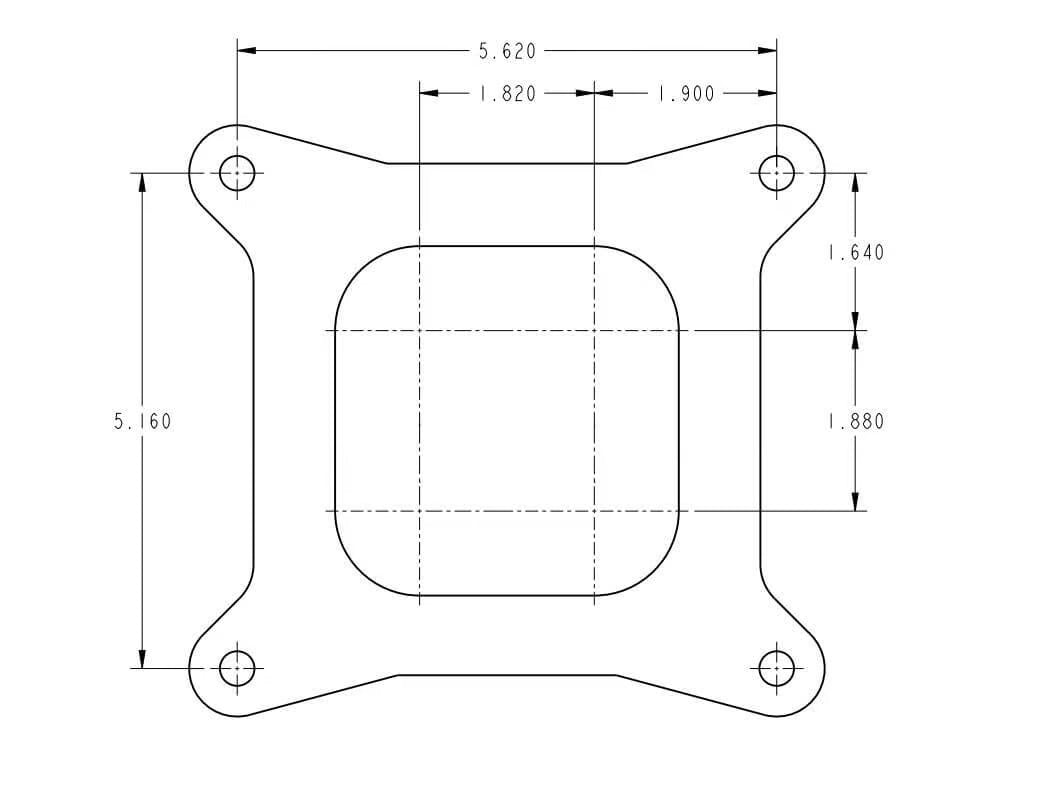

Notes: This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Features:

• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions

Specs:

• Brand: Quick Fuel
• Barrels: 4
• Billet Color: Diecast-No Billet
• Booster: Straight
• CFM: 450
• Choke: Electric
• Circuit: 2
• Finish: Shiny
• Fuel: Gasoline
• Fuel System: Carbureted
• High Speed Air Bleed: 35;33
• Idle Air Bleed Size: 70;39
• Marine Use: No
• Material: Aluminum
• Model: Slayer Series
• Primary Main Jet: 55
• Primary Power Valve: 65
• Primary Pump Nozzle Size: 25
• Secondaries: Vacuum
• Secondary Main Jet: 60
• Supercharged Application: No
• Throttle Bore: 1-9/16 inch
