BLOCK,350 CHEVY,4.125 BORE

BLOCK,350 CHEVY,4.125 BORE

PCE 13104

$1,799.99
$1,799.99
This item requires an additional shipping fee of $250 over standard shipping.
View full details

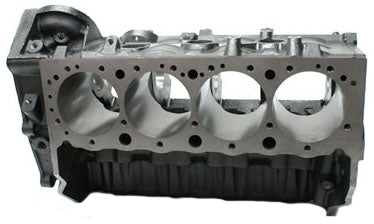

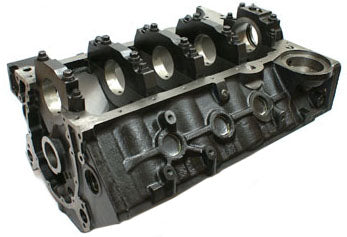

  • BRAND NEW CAST IRON SMALL BLOCK CHEVY BLOCK
  • BLOCK IS FINISH HONED & READY TO ASSEMBLE
  • WILL ACCEPT UP TO 3.750" STROKE CRANKSHAFTS WITH NO ADDITIONAL WORK & WILL ACCEPT 3.875" STROKE CRANKSHAFTS WITH A SMALL AMOUNT OF GRINDING
  • STANDARD, 4.125" BORE MAKES:
    *372" WITH 3.480" STROKE CRANKSHAFT
    *381" WITH 3.562" STROKE CRANKSHAFT
    *400" WITH 3.750" STROKE CRANKSHAFT
    *414" WITH 3.875" STROKE CRANKSHAFT
    *427" WITH 4.000" STROKE CRANKSHAFT
  • CAN BE BORED UP TO .060" OVER (4.185")
  • WHEN BORED TO .020" OVER (4.145"), IT MAKES:
    *376" WITH 3.480" STROKE CRANKSHAFT
    *385" WITH 3.562" STROKE CRANKSHAFT
    *405" WITH 3.750" STROKE CRANKSHAFT
    *418" WITH 3.875" STROKE CRANKSHAFT
    *432" WITH 4.000" STROKE CRANKSHAFT
  • WHEN BORED TO .030" OVER (4.155"), IT MAKES:
    *377" WITH 3.480" STROKE CRANKSHAFT
    *386" WITH 3.562" STROKE CRANKSHAFT
    *406" WITH 3.750" STROKE CRANKSHAFT
    *420" WITH 3.875" STROKE CRANKSHAFT
    *434" WITH 4.000" STROKE CRANKSHAFT
  • WHEN BORED TO .040" OVER (4.145"), IT MAKES:
    *379" WITH 3.480" STROKE CRANKSHAFT
    *388" WITH 3.562" STROKE CRANKSHAFT
    *409" WITH 3.750" STROKE CRANKSHAFT
    *422" WITH 3.875" STROKE CRANKSHAFT
    *436" WITH 4.000" STROKE CRANKSHAFT
  • WHEN BORED TO .060" OVER (4.185"), IT MAKES:
    *383" WITH 3.480" STROKE CRANKSHAFT
    *392" WITH 3.562" STROKE CRANKSHAFT
    *413" WITH 3.750" STROKE CRANKSHAFT
    *427" WITH 3.875" STROKE CRANKSHAFT
    *440" WITH 4.000" STROKE CRANKSHAFT
  • WEIGHS APPROXIMATELY 198 LBS.
  • CAM BEARING BORE: 2.00" ID
  • SUGGESTED CAM BEARINGS: DURABOND DT-1-1T
  • CAM BEARING PRESS: .002"
  • CAM JOURNAL: 1.869" O.D.
  • CAM PLUG: 2.375" DIAMETER CUP PLUG
  • CYLINDER WALL THICKNESS: .250" + AT 4.185"
  • DECK HEIGHT: 9.025"
  • DECK THICKNESS: .625+"
  • FUEL PUMP: MECHANICAL PUMP BOSS INCLUDED
  • FUEL PUMP PUSHROD LENGTH: STANDARD
  • FREEZE PLUGS: PRESS-IN CUP STYLE
  • LIFTER BORES: .842" - .843"
  • MAIN BEARING BORE: 2.641"
  • MAIN BEARING SIZE: 2.450" (350)
  • MAIN CAP PRESS: .004" - .006"
  • MAIN CAPS: STEEL 4 BOLT (5)
  • MAIN CAP BOLTS: SPLAYED 8740
  • MAIN CAP REGISTER: STEPPED, NO DOWELS
  • OIL SYSTEM: WET SUMP - PRIORITY MAIN OILING
  • OIL PUMP SHAFT: .481" O.D. (STANDARD SBC 350)
  • OIL PAN: STANDARD SBC
  • REAR MAIN SEAL: STANDARD 2 PIECE SBC
  • STARTER: STANDARD SBC
  • STUD HOLES: BLIND HEAD STUD HOLES
  • TIMING CHAIN/GEARS: STANDARD SBC
  • TIMING COVER: STANDARD SBC
  • TORQUE SPECS:
    7/16" BOLTS - 65 FT. LBS.
    3/8" BOLTS - 35 FT. LBS.
