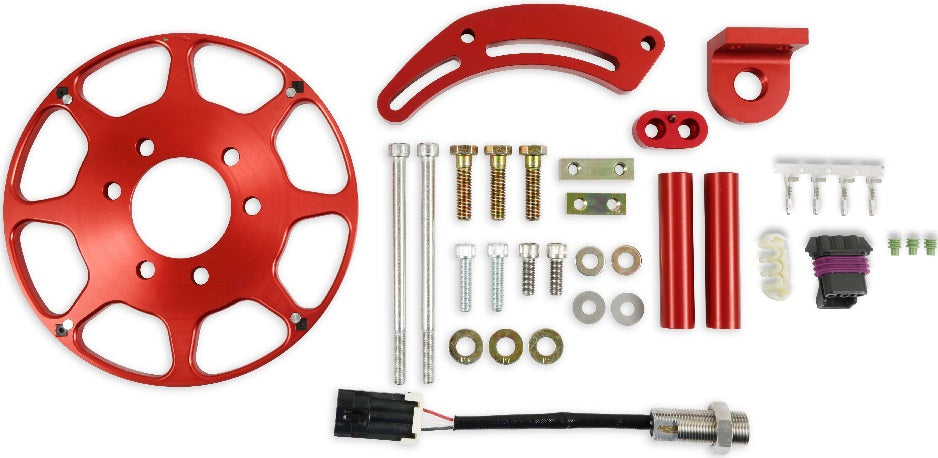

CRANK TRIGGER KIT,LS GEN III/IV,HALL EFFECT,8"

BRAND NEW MSD CRANK TRIGGER KIT, RED, FLYING MAGNET, HALL EFFECT, 8" DIAMETER, COMPATIBLE WITH SMALL BLOCK CHEVROLET GEN III/IV ENGINES

UPGRADING TO AN MSD FLYING MAGNET CRANK TRIGGER KIT WILL DELIVER THE PRECISE AND RELIABLE SIGNAL THAT A HIGH-PERFORMANCE ENGINE REQUIRES. THIS KIT GIVES YOU THE ABILITY TO CONTROL TIMING ELECTRONICALLY THROUGH A HOLLEY EFI ECU (OR OTHER STANDALONE ENGINE MANAGEMENT SYSTEM/IGNITION CONTROLLER).

AT THE HEART OF THE KIT IS THE 3-WIRE HALL-EFFECT SENSOR THAT IS EASIER TO SET UP, LESS SUSCEPTIBLE TO EMI/RFI INTERFERENCE/NOISE, AND LESS LIKELY TO HAVE FALSE SIGNALS THAN OTHER METHODS. THEY ARE LESS PRONE TO MECHANICAL FAILURE SINCE THERE ARE NO WEAR PARTS. WITH THE INCLUDED HIGH-QUALITY TIMING POINTER & USE OF A DIRECT BOLT-ON, DEGREED BALANCER (ATI 917302 OR 918852), YOU WILL BE ABLE TO ADJUST TIMING IN THE PRECISE INCREMENTS REQUIRED FOR YOUR LS ENGINE.

NOTE: ON SOME VEHICLES THE MSD CRANK TRIGGER KIT MAY REQUIRE SLIGHT MODIFICATIONS TO ACCOMMODATE SPECIAL ENGINE PLATES, PULLEY SYSTEMS, ETC.

NOTE: DESIGNED FOR THE ATI HARMONIC BALANCER 917302 OR 918852 BUT IS ALSO COMPATIBLE WITH 917264 & 917242. ALSO COMPATIBLE WITH MEZIERE WATER PUMP WP333 & LSX BLOCKS.

FEATURES:

• MOST ACCURATE WAY TO TRIGGER YOUR ELECTRONIC FUEL INJECTION (EFI)

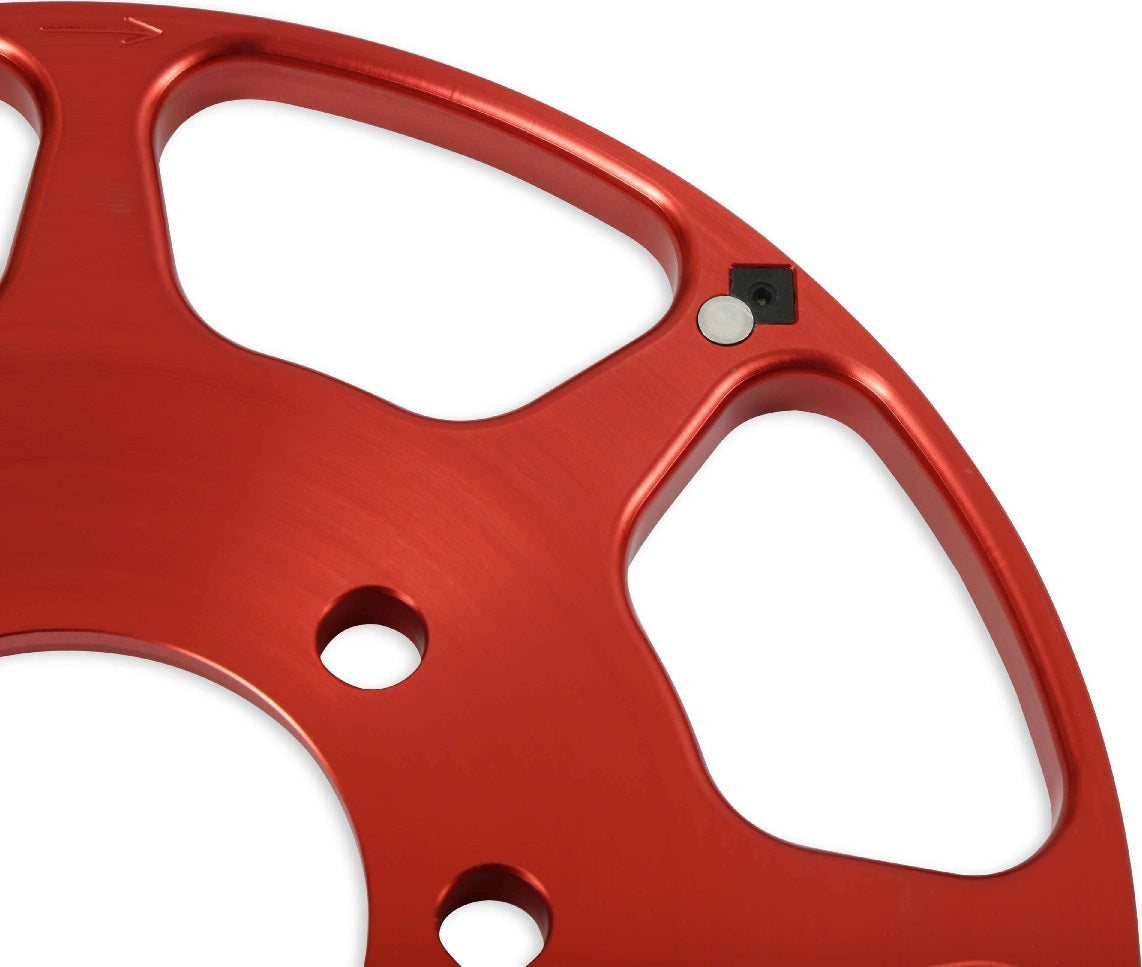

• POWERFUL MAGNETS EMBEDDED IN A 3/8" THICK BILLET 6061-T6 ALUMINUM TRIGGER WHEEL
• 3-WIRE HALL-EFFECT SENSOR THAT IS NOT EASILY SUSCEPTIBLE TO EMI/RFI INTERFERENCE
• ALLOWS PRECISE INDEXING BY UTILIZING THE 10 DEGREE RANGE ON INCLUDED TIMING POINTER
• EASY TO INSTALL MUCH LIKE TRADITIONAL MSD CRANK TRIGGER KITS (USE WITH ATI BALANCER 917302 OR 918852 BUT IS ALSO COMPATIBLE WITH 917264 & 917242)
• RIGID MOUNTING THAT WILL NOT FLEX & CAUSE TIMING FLUCTUATION

SPECS:

• BRAND: MSD
• COLOR: RED
• DIAMETER: 8 IN.
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• MAKE: CHEVROLET
• OPERATING VOLTAGE: 5-20 VOLTS
• PRODUCT TYPE: CRANK TRIGGER KIT
• SENSOR TYPE: HALL EFFECT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CRANK TRIGGER KIT HERE.
