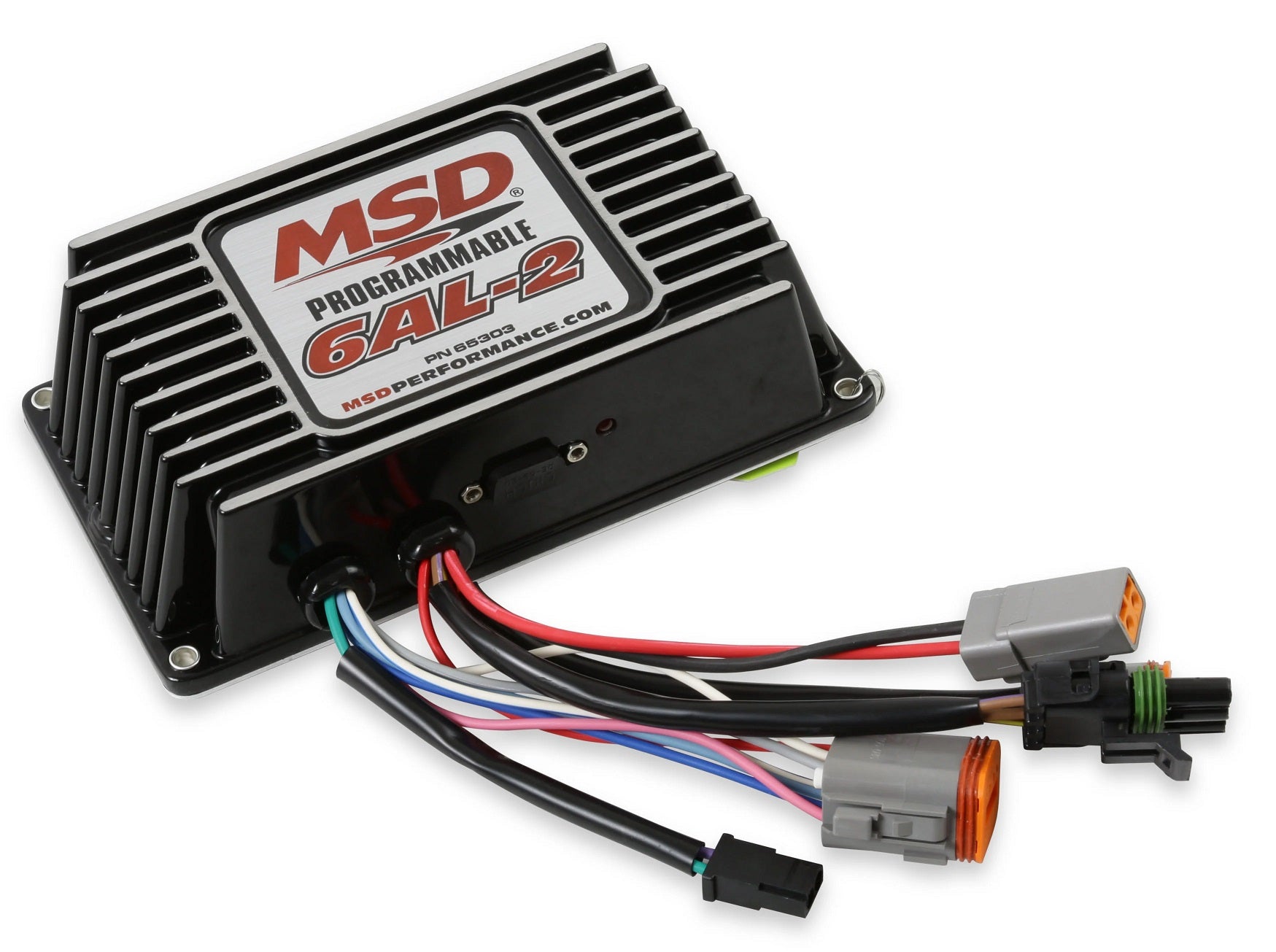

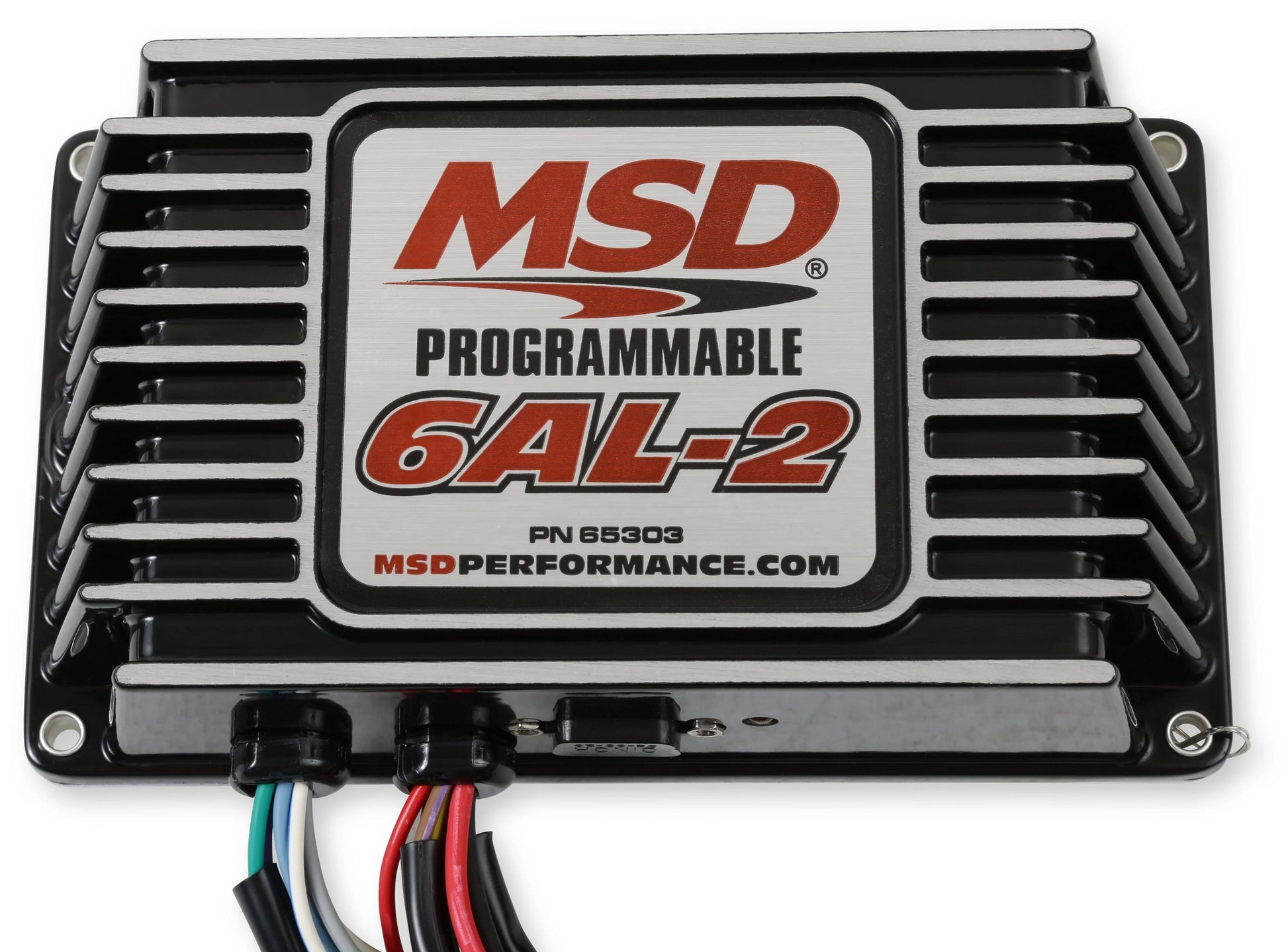

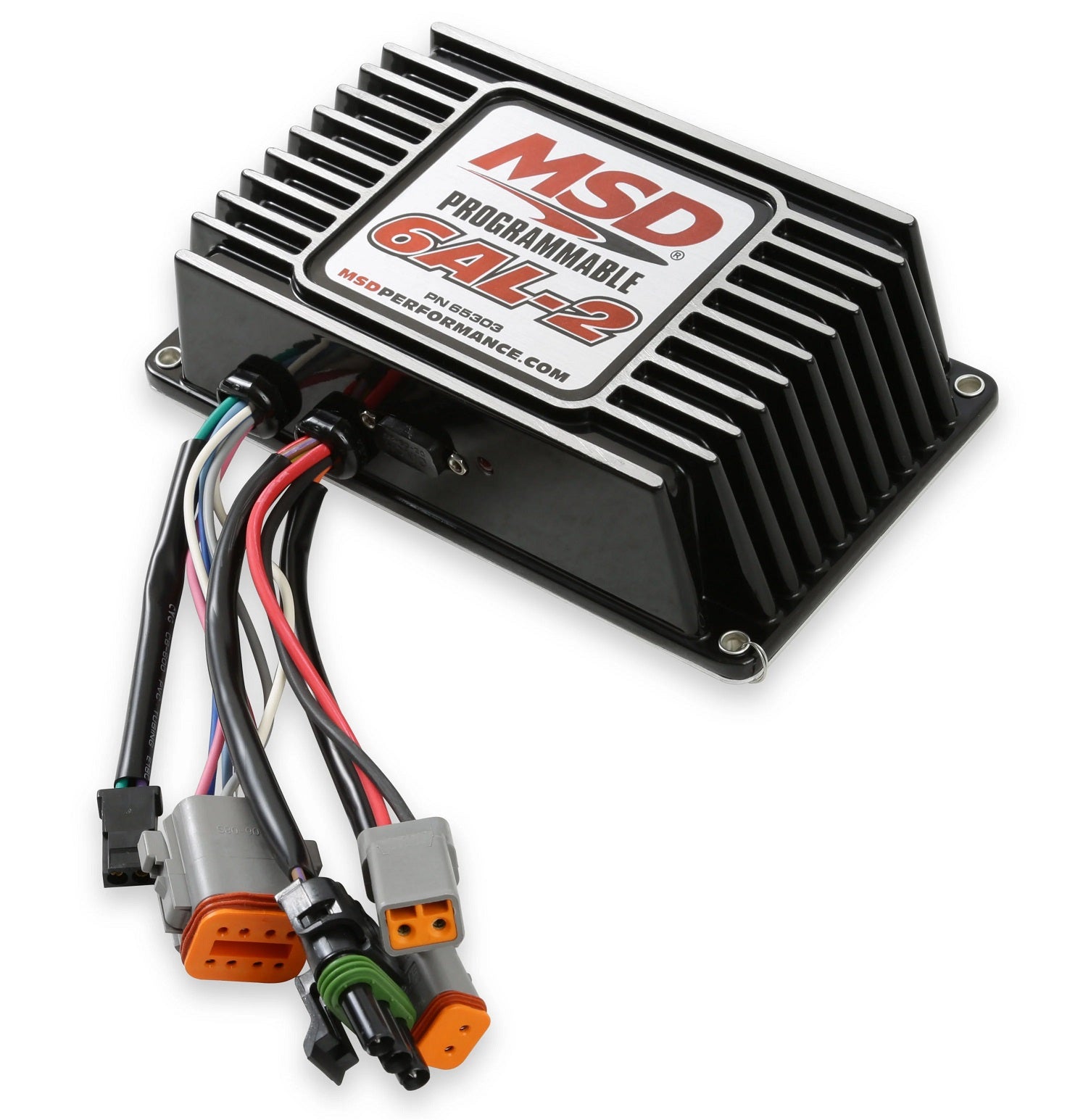

IGNITION BOX,6AL-2,PROGRAMMABLE,BLACK

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!

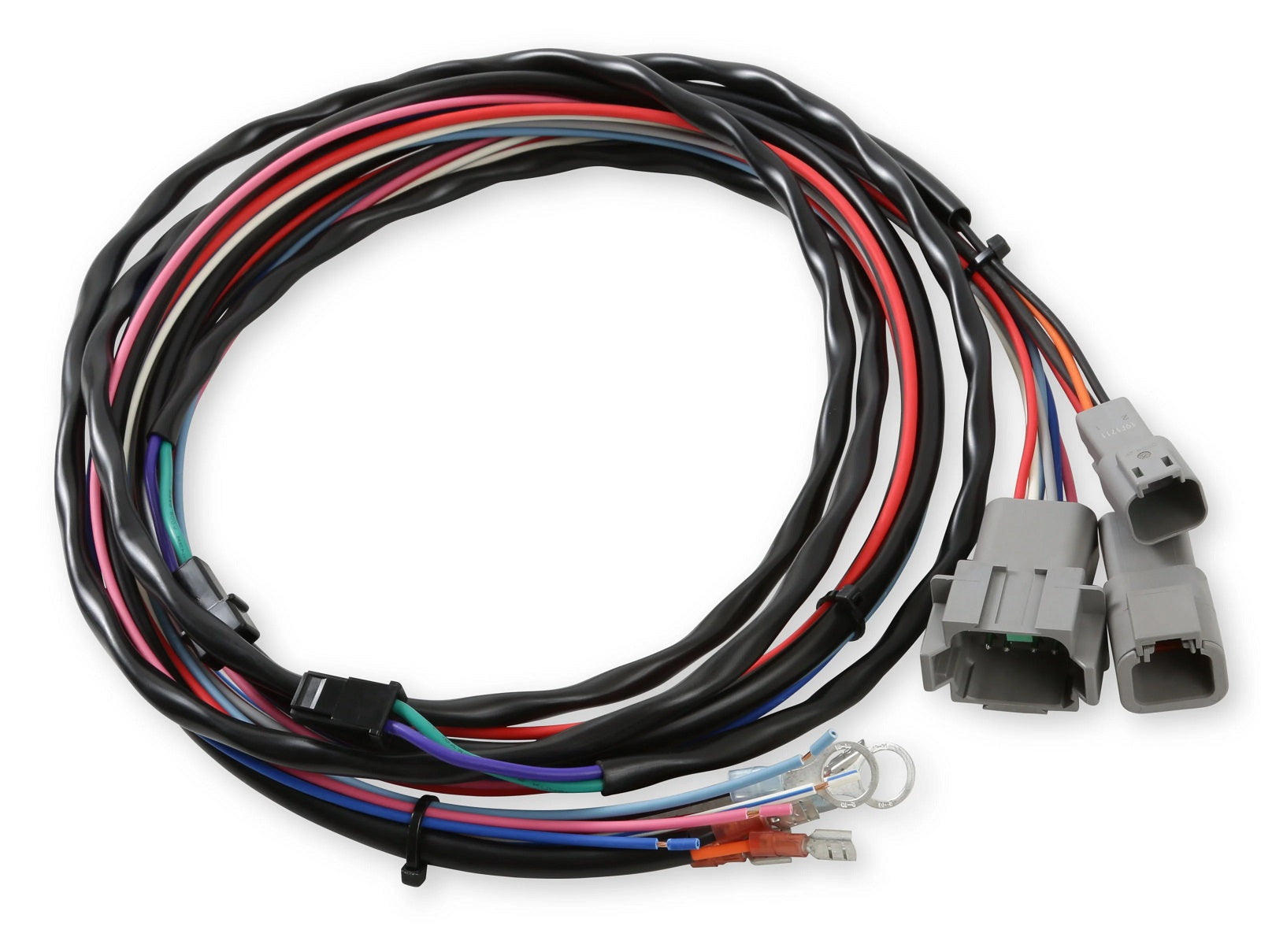

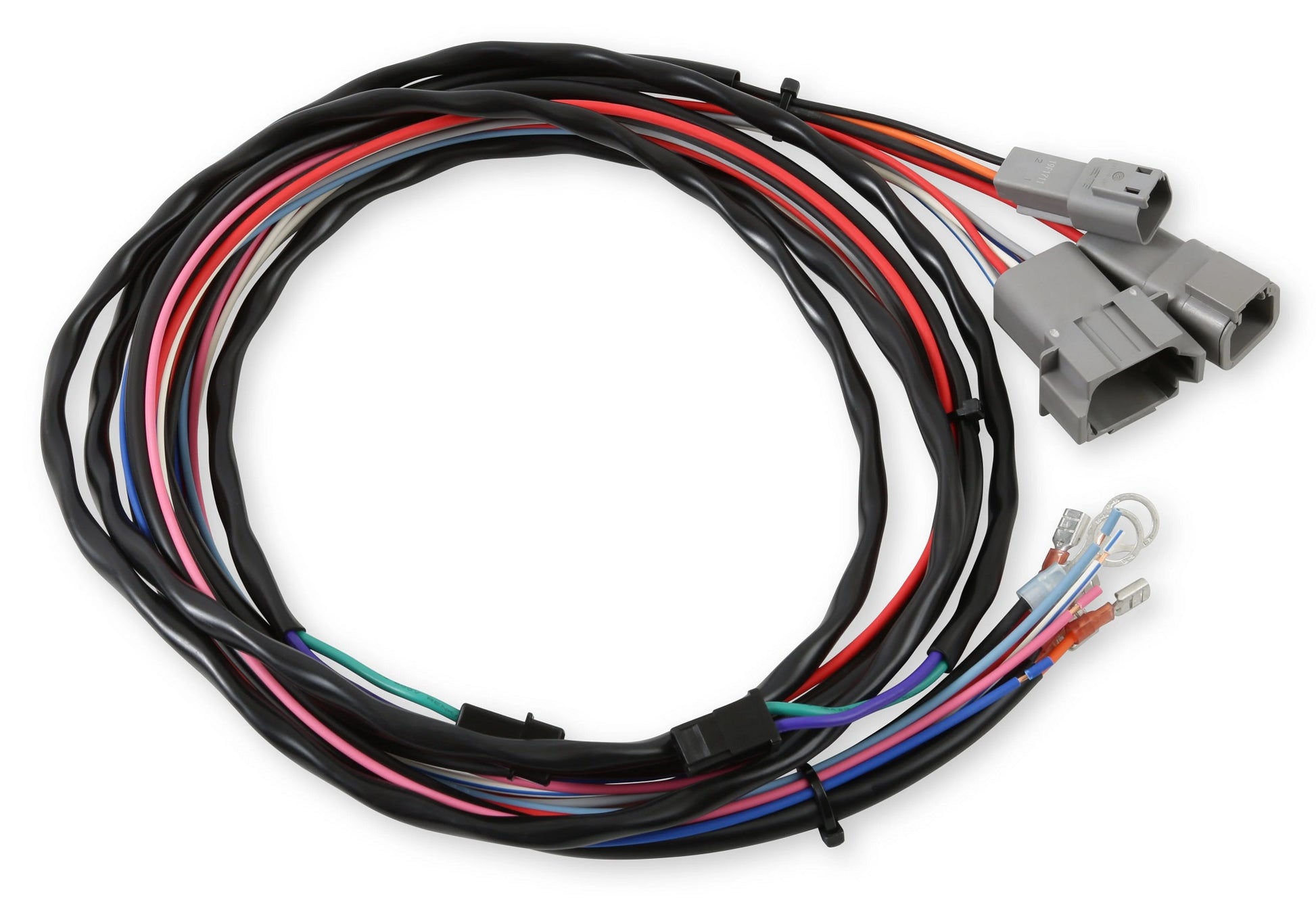

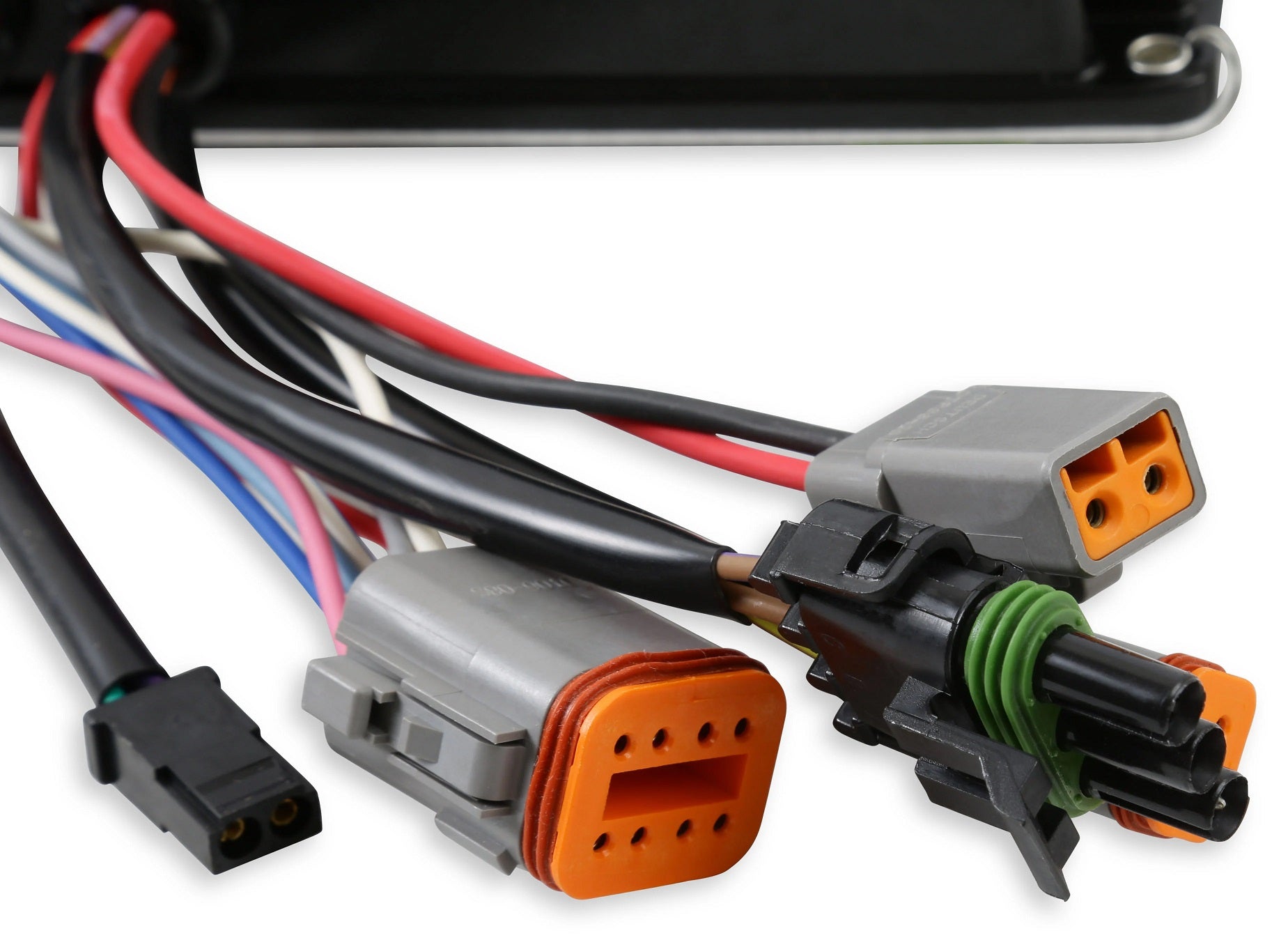

The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.

Features:

• Advanced features allow for use in street and racing applications

• PC Programmable with easy-to-use Windows based Pro-Data +Software

• Plot a boost timing map with 0.1° per psi accuracy

• Programmable 3-Step Rev Limiter (100 RPM increments)

• Step retard for nitrous applications plus a boost timing map

• Capacitive Discharge technology for fast rise time and maximum spark energy


Specs:

• Current Draw: .7 Amp per 1,000 RPM

• Primary Voltage: 535 Volts

• Product Type: Digital Programmable 6AL-2

• RPM Range: 12,500 RPM with 14.4 Volts

• Secondary Voltage: 45,000 Volts

• Spark Energy: 135 mJ per spark

• Voltage Required: 12-18 Volts, Negative Ground
