USE QFT Q-850-AN

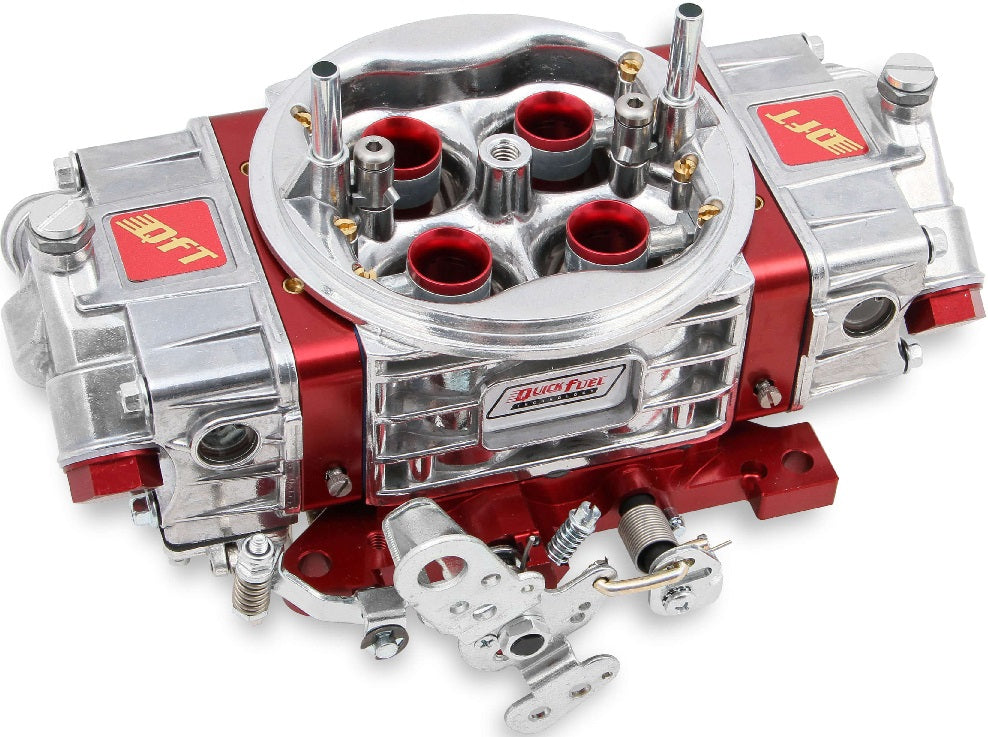

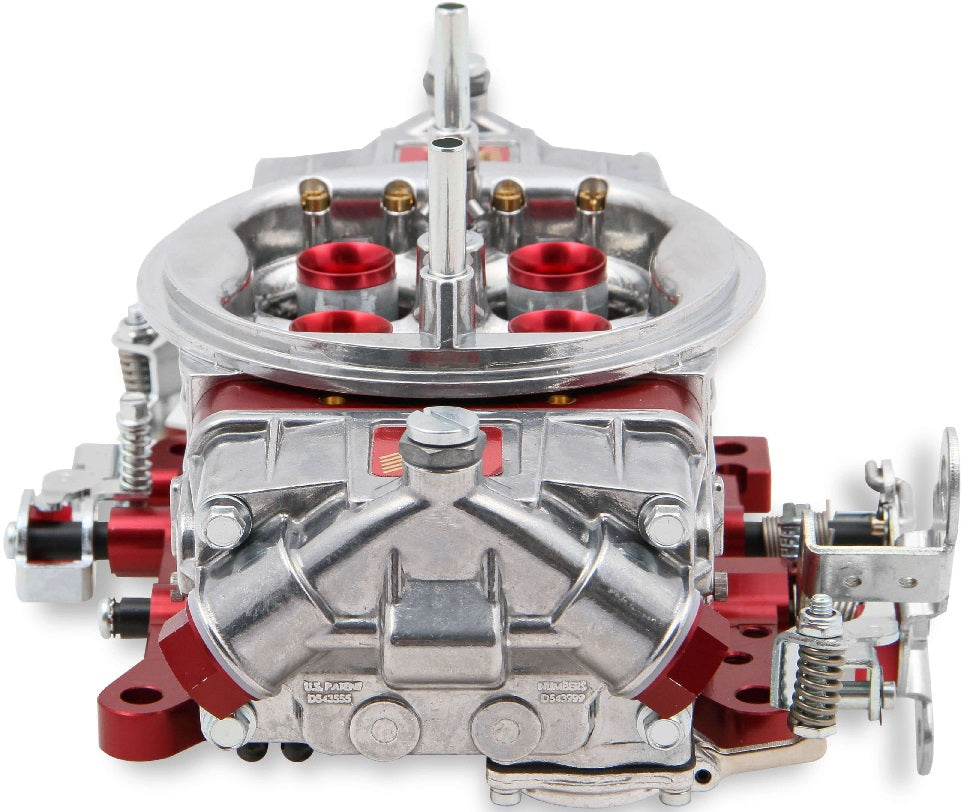

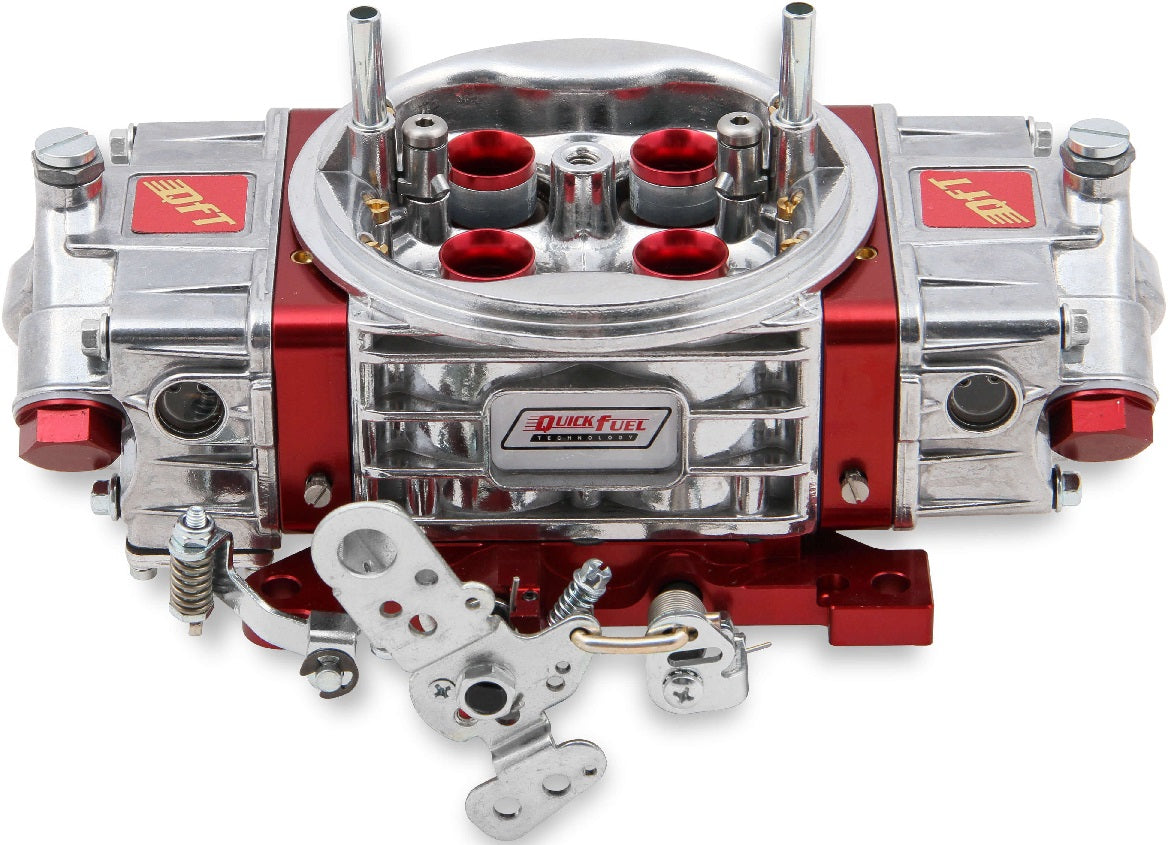

BRAND NEW HOLLEY QUICK FUEL Q-SERIES CARBURETOR, RED BILLET & SHINY FINISH, 850 CFM, DRAG RACING, ANNULAR BOOSTER, 4150 MODEL

Q-SERIES CARBURETORS ARE PURPOSE-BUILT FOR THE DRAGSTRIP. EQUIPPED WITH NOTCHED FLOATS & SECONDARY JET EXTENSIONS. HIGH-FLOW ALUMINUM MAIN BODY IS LIGHTWEIGHT & FEATURES RECESSED AIR BLEED CAVITIES FOR IMPROVED AIR FLOW.

DIE-CAST VENTURI ARE MACHINED TO EXACTING TOLERANCES FOR OUTSTANDING THROTTLE RESPONSE. BILLET METERING BLOCKS ENSURE A UNIFORM FUEL CURVE, WHILE THROTTLE-BODIES ENHANCE DURABILITY. QFT QUICKLINK SYSTEM MAKES ADJUSTING THE SECONDARIES EASY ON MODELS EQUIPPED WITH MECHANICAL SECONDARIES.

FEATURES:

• LIGHTWEIGHT ALUMINUM MAIN BODY
• ALUMINUM FUEL BOWLS WITH DUAL SIGHT GLASS WINDOWS
• BILLET METERING BLOCKS WITH 4-CORNER IDLE SYSTEM
• CHANGEABLE IDLE FEED & POWER VALVE CHANNEL RESTRICTIONS
• BILLET ALUMINUM THROTTLE BODY PROVIDES EXCEPTIONAL PRECISION & STRENGTH
• PTFE COATED & SEALED SHAFTS

SPECS:

• BARRELS: 4
• BILLET COLOR: RED
• BOOSTER: ANNULAR
• BRAND: QUICK FUEL
• CARBURETOR USE: PERFORMANCE & RACE
• CFM: 850
• CHOKE: NONE
• CIRCUIT: 2
• FINISH: SHINY
• FUEL: GASOLINE
• FUEL SYSTEM: CARBURETED
• HIGH SPEED AIR BLEED: 33
• IDLE AIR BLEED SIZE: 73
• MARINE USE: NO
• MATERIAL: ALUMINUM
• MODEL: Q-SERIES
• PRIMARY MAIN JET: 76
• PRIMARY POWER VALVE: 45
• PRIMARY PUMP NOZZLE SIZE: 32
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: MECHANICAL
• SECONDARY MAIN JET: 84
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1-3/4"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
