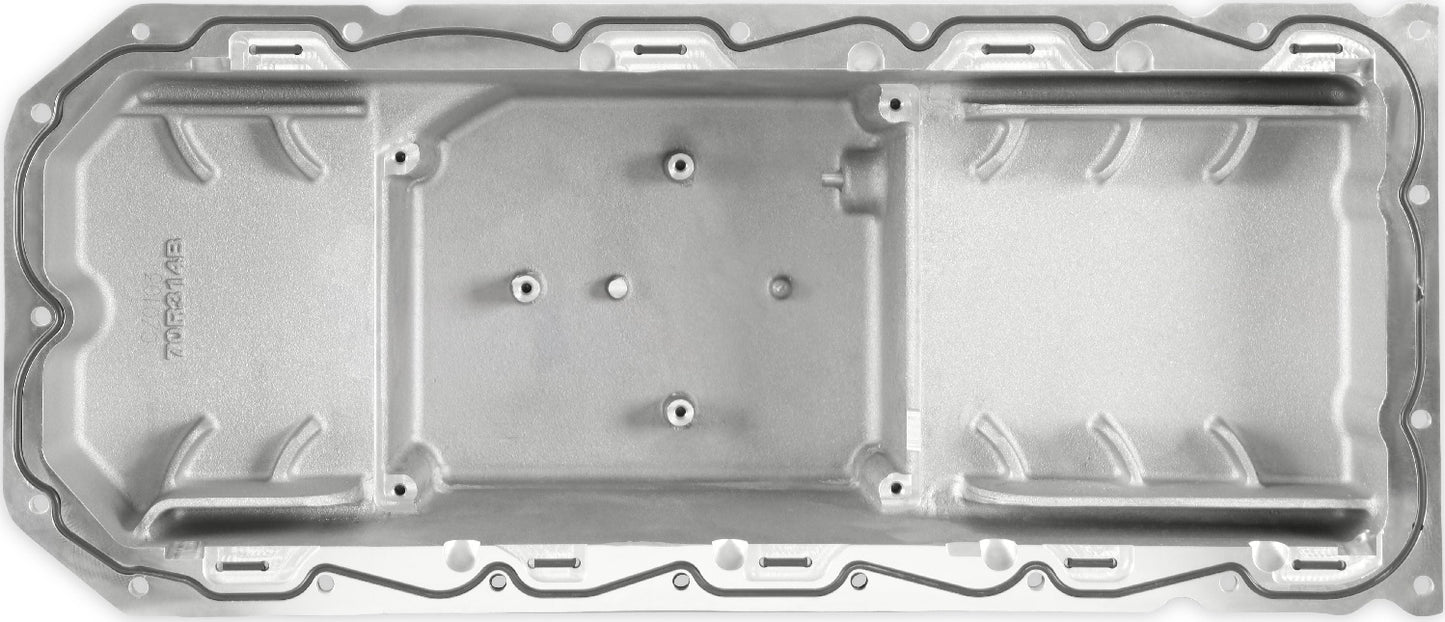

OIL PAN KIT,GEN 3 HEMI HELLCAT SWAP,MID-SUMP,RAW

BRAND NEW HOLLEY GEN III HEMI HELLCAT SWAP OIL PAN, MID SUMP, NATURAL FINISH, COMPATIBLE WITH 1963-1974 MOPAR A-BODY, B-BODY, C-BODY & E-BODY

MOPAR POPULAR GEN III HEMI ENGINES ARE IDEAL FOR SWAPPING INTO MUSCLE CARS SINCE THEY ARE DURABLE, RELIABLE, AND MAKE GREAT POWER. THE FACTORY OIL PANS THAT COME ON THESE ENGINES USUALLY DO NOT FIT AND HANG TOO LOW FOR YOUR SWAP. THESE NEW CAST ALUMINUM OIL PANS ARE COMPATIBLE WITH 1963-1974 MOPAR A-BODY, B-BODY, C-BODY & E-BODY VEHICLES.

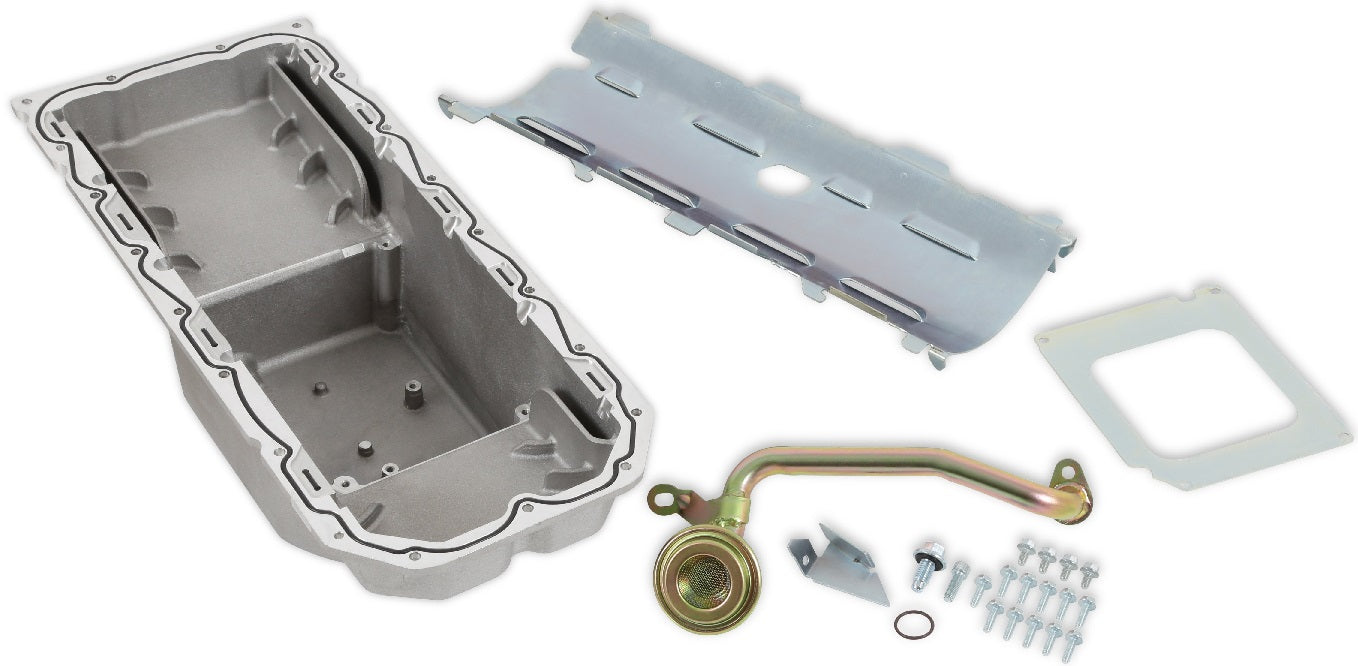

THE CAST ALUMINUM CONSTRUCTION & INTEGRATED WINDAGE TRAY ON THE OIL PANS COMBINED WITH O-RING SEALING PROVIDE AN ATTRACTIVE LEAK-FREE SOLUTION FOR YOUR ENGINE SWAP. COMPLETE OIL PAN KIT THAT INCLUDES THE OIL PAN, PICKUP ASSEMBLY, O-RING SEAL, WINDAGE TRAY, BAFFLING & MOUNTING BOLTS - NO EXTRAS THAT MUST BE PURCHASED SEPARATELY.

NOTE: TURBO OIL DRAIN BACK BOSSES ARE ON THE FRONT CORNERS OF THE OIL PAN, BUT THESE WILL REQUIRE MACHINING - IF NEEDED.

COMPATIBLE WITH:

• DODGE:
• 1963-1964 330
• 1963-1964 440
• 1970-1974 CHALLENGER
• 1966-1974 CHARGER
• 1963-1974 CORONET
• 1963-1976 DART
• 1965-1974 MONACO
• 1963-1973 POLARA
• PLYMOUTH:
• 1964-1974 BARRACUDA
• 1963-1971 BELVEDERE
• 1970-1974 CUDA
• 1970-1976 DUSTER
• 1963-1974 FURY
• 1965-1974 FURY III
• 1972-1974 GRAN FURY
• 1967-1971 GTX
• 1963-1964 SAVOY
• 1971-1976 SCAMP
• 1970 SUPERBIRD
• 1963-1976 VALIANT
• CHRYSLER:
• 1963-1974 IMPERIAL
• 1963-1974 NEWPORT
• 1963-1974 NEW YORKER
• 1963-1974 TOWN & COUNTRY

FEATURES:

• THE FACTORY OIL PANS ON GEN III HEMI ENGINES DO NOT FIT OR HANG TOO LOW FOR MUSCLE CAR ENGINE SWAPS
• COMPATIBLE WITH 6.2-LITER SUPERCHARGED HELLCAT GEN III HEMI ENGINES WITH UNIQUE BOLT PATTERN & FLANGE SHAPE

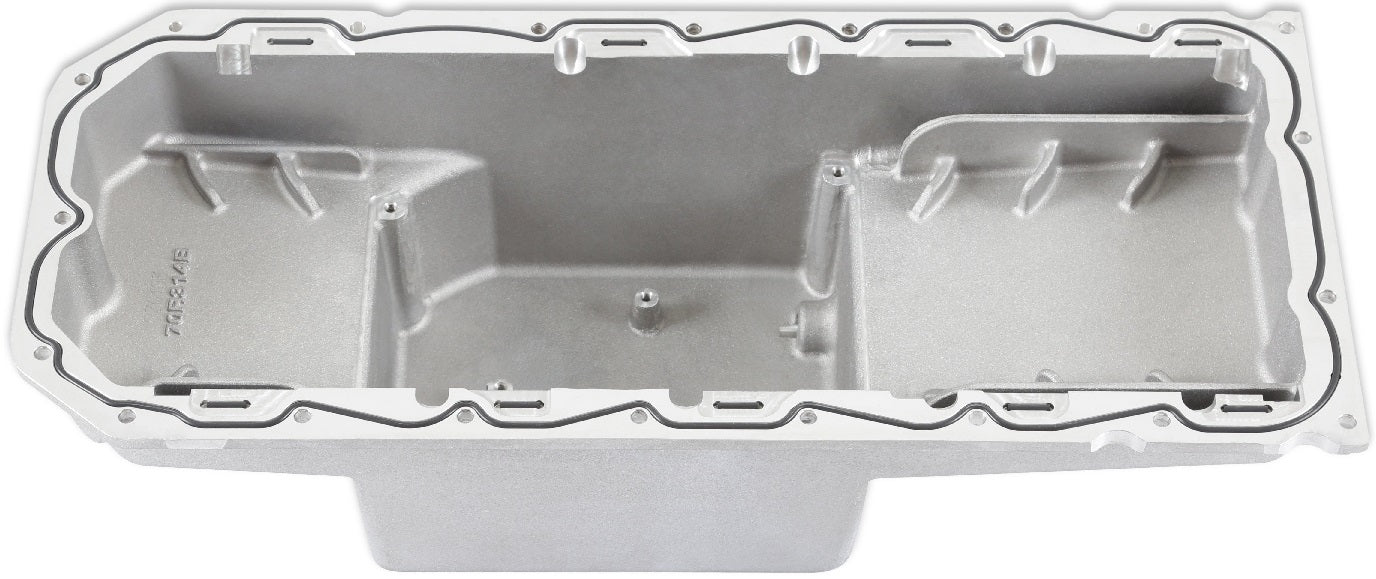

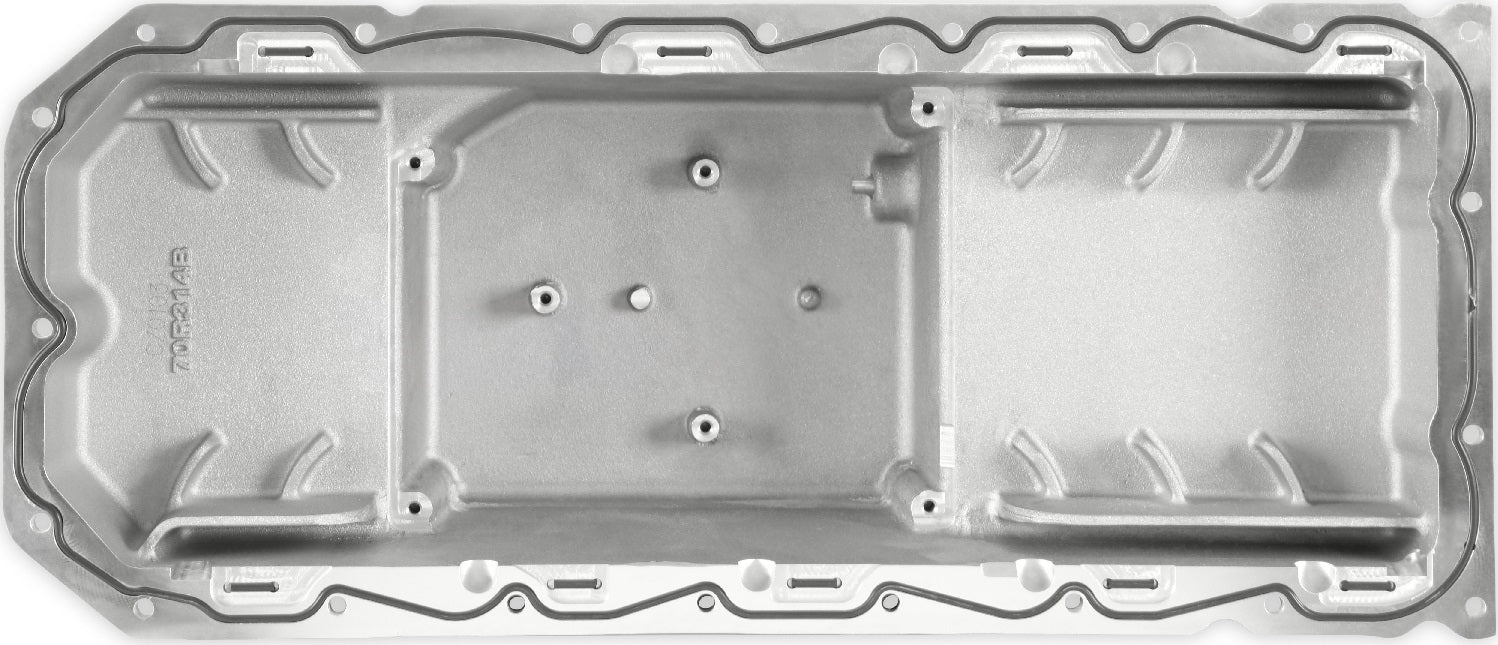

• CAST ALUMINUM MID-SUMP ENGINE SWAP OIL PAN
• UNIQUE O-RING SEAL TO BLOCK AND CAPTURED WINDAGE TRAY

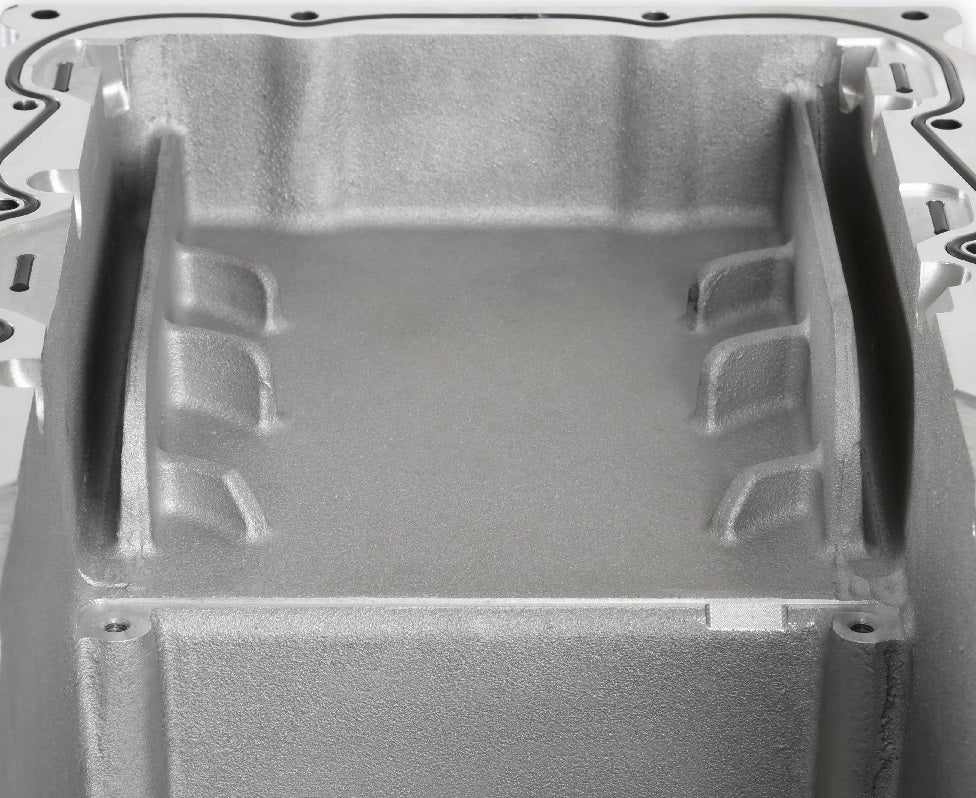

• INTEGRATED WINDAGE TRAY & BAFFLE TO CONTROL OIL (FITS UP TO 4.060" STROKE)
• COMPATIBLE WITH MOST FACTORY & AFTERMARKET DIPSTICKS - PART #302-74 RECOMMENDED
• STEEL WINDAGE TRAY - FOR PERFORMANCE, STRENGTH, AND DURABILITY
• CAST BOSSES ON FRONT CORNERS OF PAN CAN BE TAPPED FOR OIL RETURNS

SPECS:

• APPLICATION: GEN III HEMI
• BRAND: HOLLEY
• CAM STYLE: VVT
• FINISH: NATURAL CAST
• MATERIAL: ALUMINUM
• MAX STROKE: 4.060"
• OIL PAN CAPACITY: 6.0 QUARTS
• OIL PAN TYPE: CAST
• OIL RETURN SIZE: NOT MACHINED
• PRODUCT TYPE: OIL PAN KIT
• SUMP LOCATION: CENTER
• TURBO OIL DRAINBACK: NO
• WINDAGE TRAY INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN HERE.
