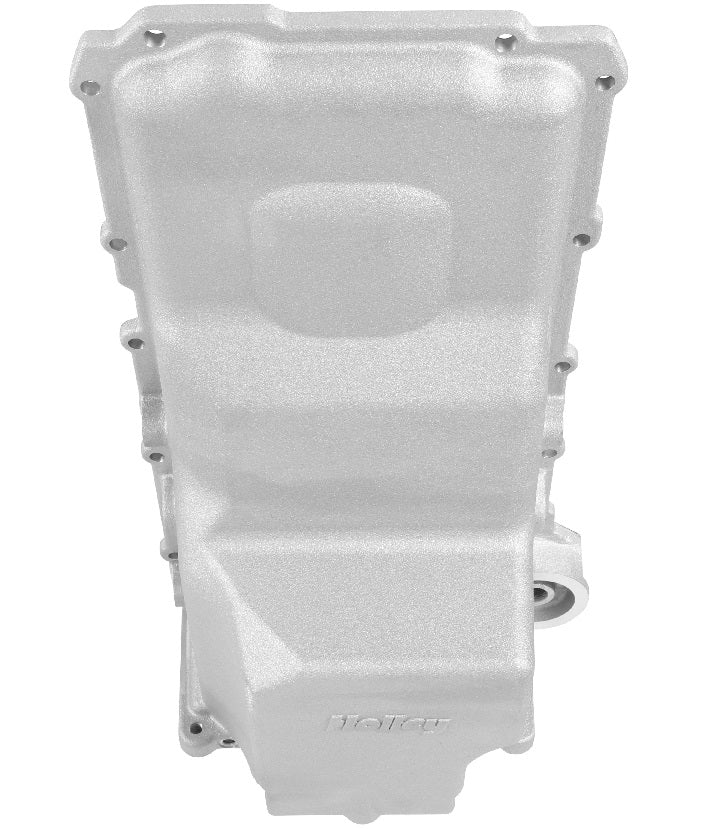

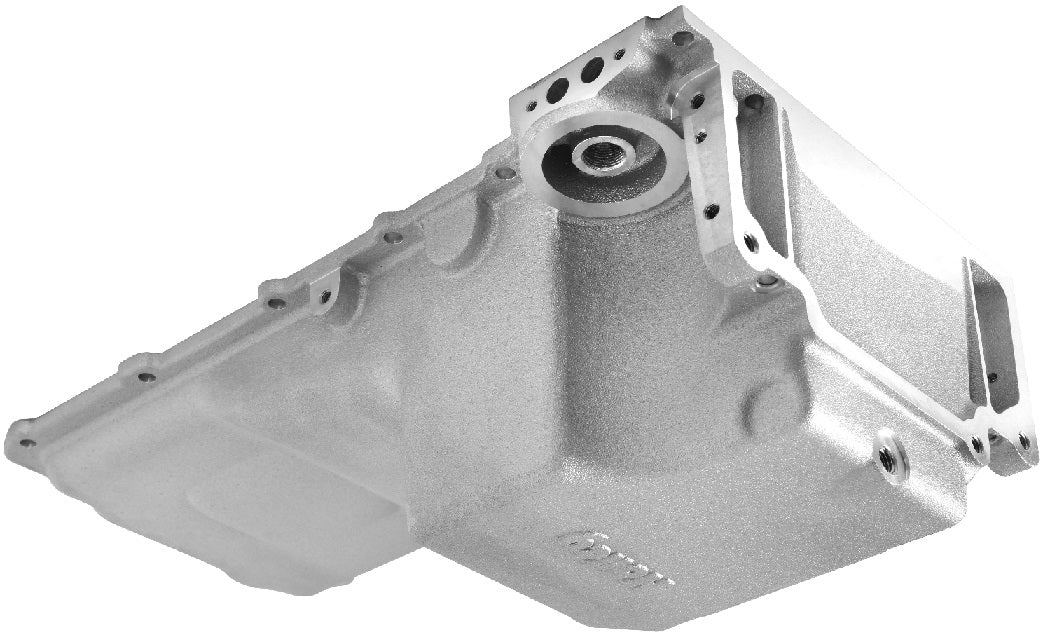

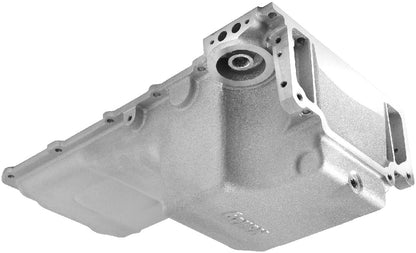

OIL PAN KIT,GM LS RETROFIT,73-87 GM TRUCKS,RAW

BRAND NEW HOLLEY GM LS SWAP OIL PAN, NATURAL CAST FINISH, COMPATIBLE WITH 1973-1987 GM K10 LS SWAPPED TRUCKS

GM POPULAR LS ENGINES FIND THEIR WAY INTO A HUGE VARIETY OF VEHICLES. UNFORTUNATELY, THE FACTORY LS PANS DO NOT ALWAYS FIT IN THE VEHICLES WE WOULD LIKE. THE LS 4WD OFF-ROAD ENGINE SWAP OIL PAN IS DESIGNED TO HELP. IT PROVIDES MAXIMUM CLEARANCE TO THE CHASSIS AND DRIVETRAIN FOR THE K10 CHASSIS AND OTHER LS SWAPPED 4WD APPLICATIONS, PLUS PROVIDES AN OE STYLE FITMENT FOR DURABILITY/PROPER SEALING. COMPATIBLE WITH ALL POPULAR TRANSMISSIONS (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 AND 6L90.

FEATURES:

• PROVIDES OE STYLE FITMENT - OE OIL FILTER MOUNTING, OE OIL COOLER PORT PROVISION, OE FLANGE GASKET AND SEALING, PROPER STRUCTURAL RIGIDITY, AND OE BELL-HOUSING ATTACHMENTS
• TRADITIONAL HIGH-QUALITY CAST ALUMINUM APPEARANCE WITH CLEAN EXTERIOR STYLING

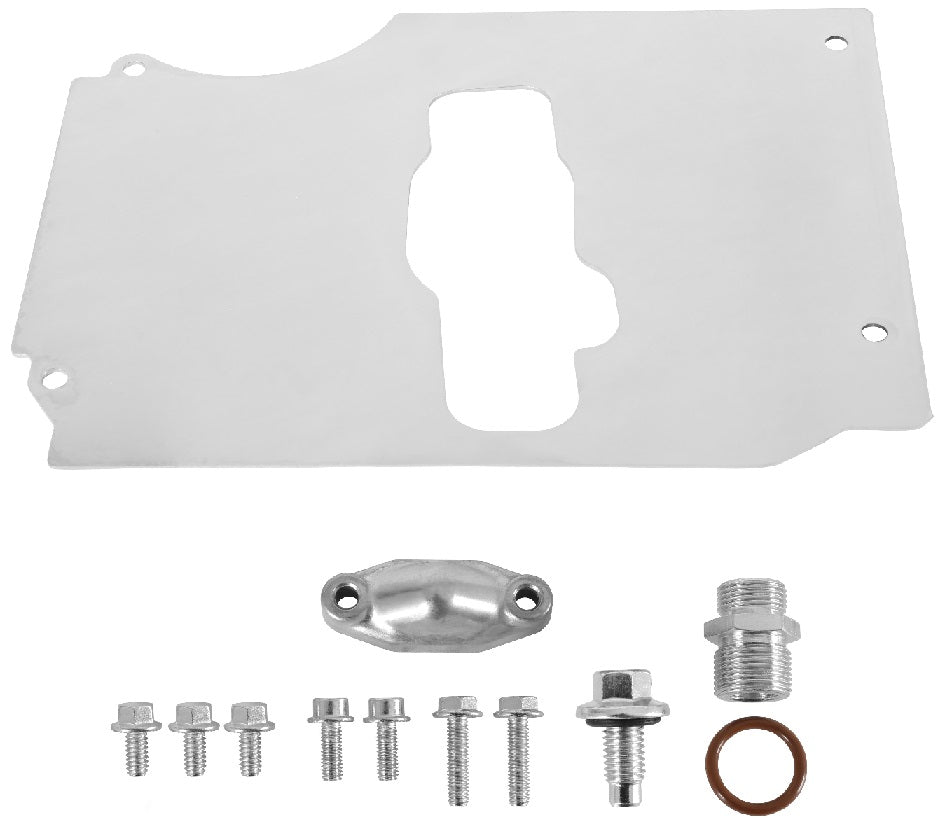

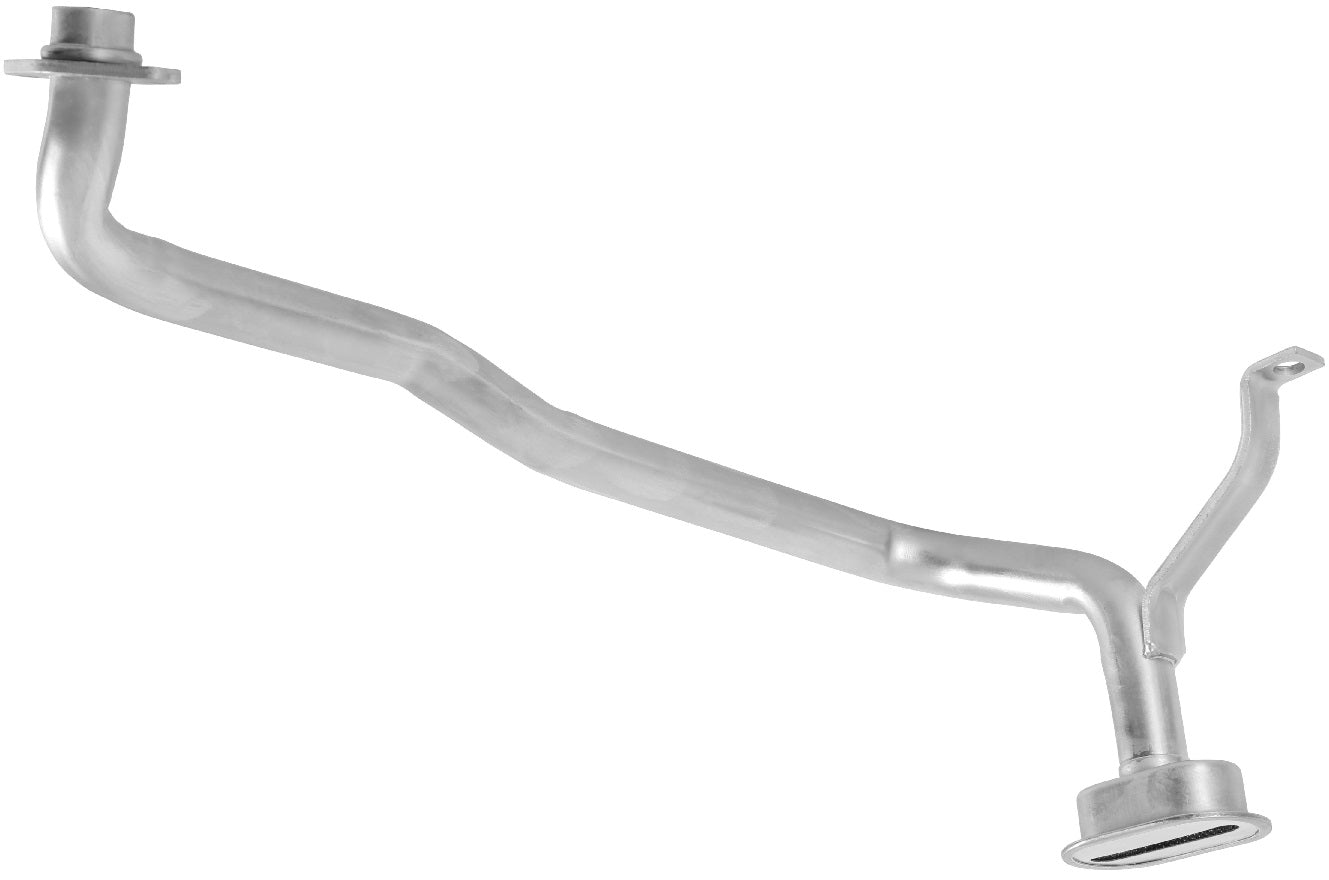

• COMPLETE KIT INCLUDING SUMP BAFFLE, PICK-UP TUBE, PICK-UP O-RING, OIL FILTER STUD, & OIL PASSAGE COVER
• COMPATIBLE WITH GM K10 AND OTHER LS SWAPPED 4-WHEEL DRIVE APPLICATIONS
• MAXIMUM CRANKSHAFT STROKE - 4.00-INCHES
• COMPATIBLE WITH HINGED-DOOR BAFFLE #302-33 AND ROCK SHIELD #302-35 WHICH CAN BE ADDED AT ANY TIME

SPECS:

• BRAND: HOLLEY
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• FINISH: NATURAL CAST
• MATERIAL: CAST ALUMINUM
• MAXIMUM STROKE: 4.00"
• OIL PAN CAPACITY: 5.6 QUARTS
• OIL PAN TYPE: OFF-ROAD / 4WD
• OIL SYSTEM CAPACITY (WITH FILTER): 6.1 QUARTS
• PRODUCT TYPE: OIL PAN KIT
• SUMP LOCATION: REAR
• TURBO OIL DRAINBACK: NO
• WINDAGE TRAY INCLUDED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS OIL PAN HERE.
