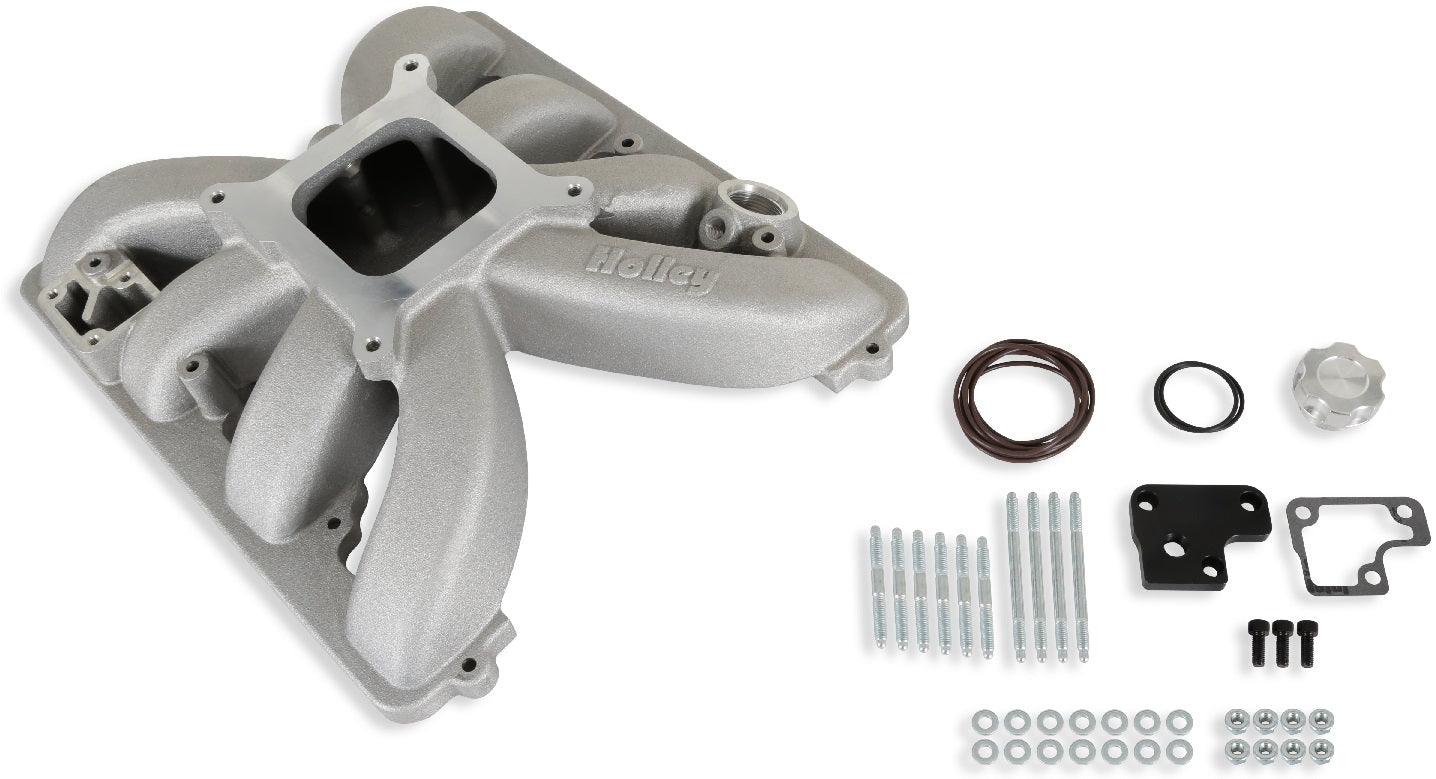

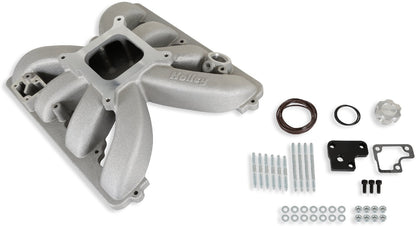

INTAKE MANIFOLD KIT,GEN III HEMI,4150 CARBURETOR,SATIN

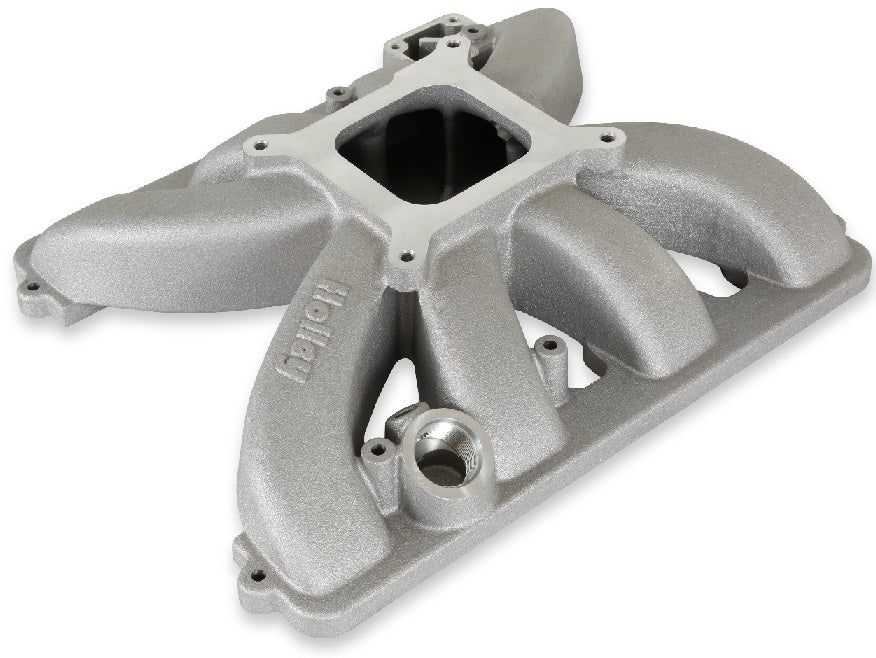

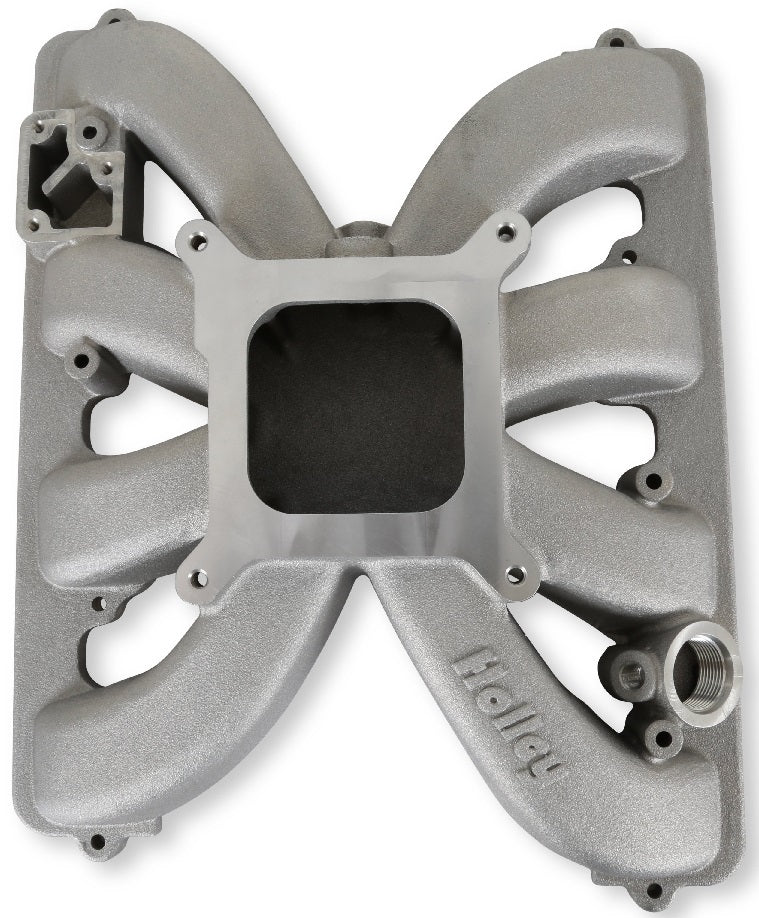

BRAND NEW HOLLEY SINGLE PLANE INTAKE MANIFOLD, NATURAL FINISH, SNIPER EFI OR CARBURETOR, COMPATIBLE WITH 2009-2023 5.7L, 2005-2010 6.1L & 2011-2023 6.4L CHRYSLER GEN III HEMI ENGINES

THESE NEW SINGLE-PLANE INTAKE MANIFOLD KITS ARE DESIGNED FOR 2009-2023 5.7-LITER, 2005-2010 6.1-LITER, AND 2011-2023 6.4-LITER CHRYSLER GEN III HEMI ENGINES. PROVIDES MAXIMUM HOOD CLEARANCE COMBINED WITH PLENUM AND RUNNER GEOMETRY THAT PROVIDE A BROAD RPM POWERBAND FOR HIGH-PERFORMANCE STREET/STRIP ENGINE APPLICATIONS TO A MAXIMUM ENGINE SPEED OF 7500 RPM. THE ISOLATED DESIGN OF THE AIR/FUEL PASSAGES HELPS TO INCREASE CHARGE AIR DENSITY & PERFORMANCE.

300-931 AND 300-931BK HAVE A 4150 FLANGE TO ACCEPT SQUARE BORE CARBURETORS OR A SNIPER EFI. THEY ARE MACHINED FROM CASTINGS WITHOUT THE BOSSES FOR FUEL INJECTORS FOR A CLEANER LOOK.

NOTE: THESE MANIFOLDS ARE COMPATIBLE WITH 2009-CURRENT 5.7L, 2005-2010 6.1L & 2011-2023 6.4L CHRYSLER GEN III HEMI ENGINES. ADAPTER PLATES 300-652 WILL ALLOW USE WITH EARLY, SMALL PORT ENGINES.

FEATURES:

• MINIMUM CARB FLANGE HEIGHT FOR MAXIMUM CLEARANCE TO HOOD
• 4150 TYPE THROTTLE/CARB FLANGE
• CAST ALUMINUM CONSTRUCTION. GREAT FOR TURBOCHARGER, CENTRIFUGAL BLOWER OR NOS POWER ADDERS
• HEIGHT TO THROTTLE VALVE FLANGE IN FRONT IS 3.31-INCH, REAR IS 4.25-INCH
• PORT SIZE: 1.72" TALL, 1.75" WIDE

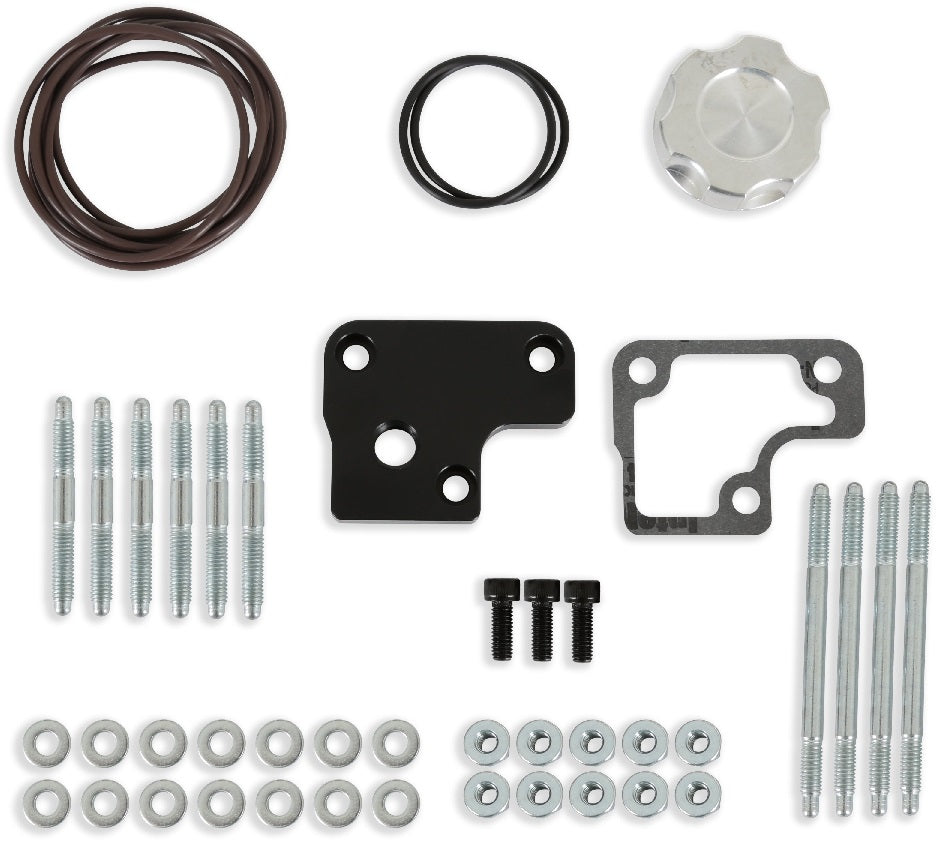

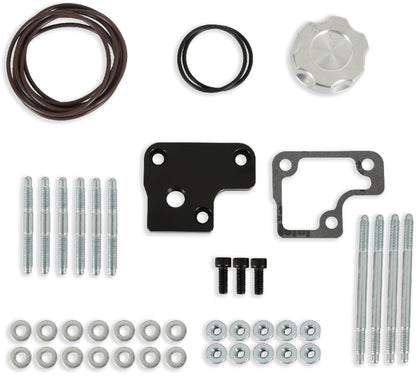

• BILLET ALUMINUM OIL FILL CAP INCLUDED
• COMPATIBLE WITH EITHER BOSCH EV1 OR GEN III HEMI OEM FUEL INJECTORS
• O-RING SEALS AROUND PORTS

SPECS:

• BRAND: HOLLEY
• ENGINE: GEN 3 HEMI
• FINISH: NATURAL
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
