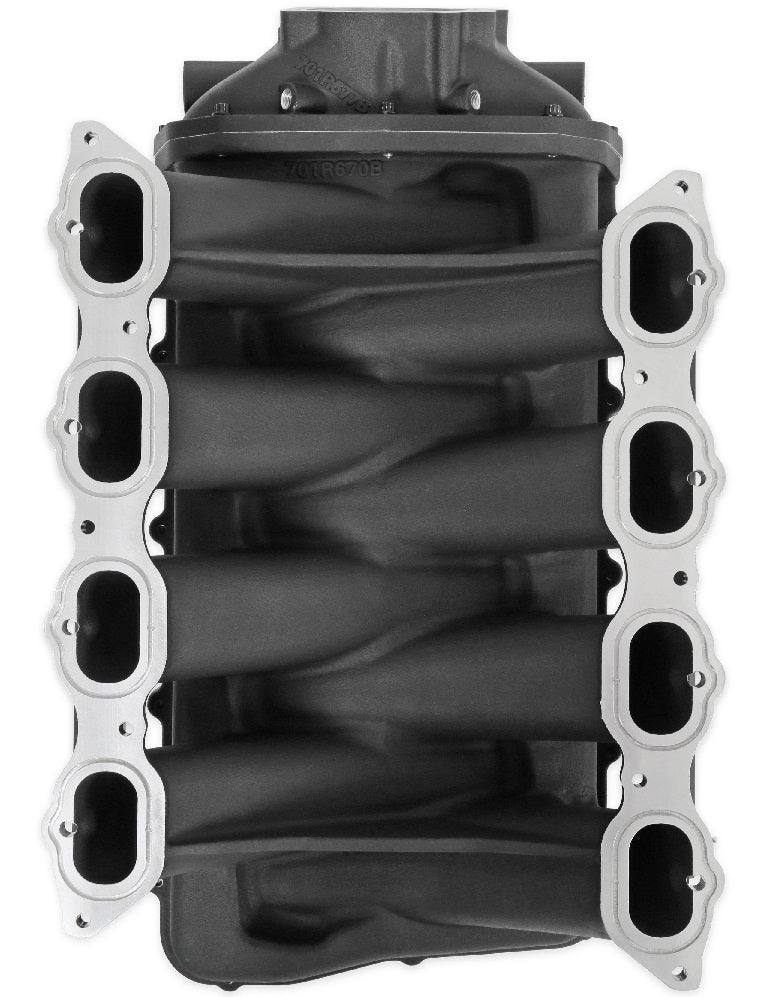

INTAKE MANIFOLD KIT,ULTRA LO-RAM, COYOTE,15-20 GT350 19-22 GT500,93MM RND,BLACK

Brand New Holley EFI Ultra Lo-Ram Intake Manifold, Black Finish, Compatible with 2015-2020 GT350 & 2019-2022 GT500 Ford Coyote Engines (Holley Part #300-912BK).

Finally, an affordable Coyote intake manifold that also performs! The Hi-Ram and Ultra Lo-Ram are designed to fit stock bolt pattern OE heads found on the 2011-2023 Ford 5.0 Coyotes and related engine families, such as, Voodoo and Predators. These kits include fuel rails for use with OEM type fuel injectors and clips, mounting hardware, and O-ring gaskets. Offered in black and natural as-cast finish, both manifolds have a 9.20-inch runner length and are designed to improve the mid to high RPM powerband.

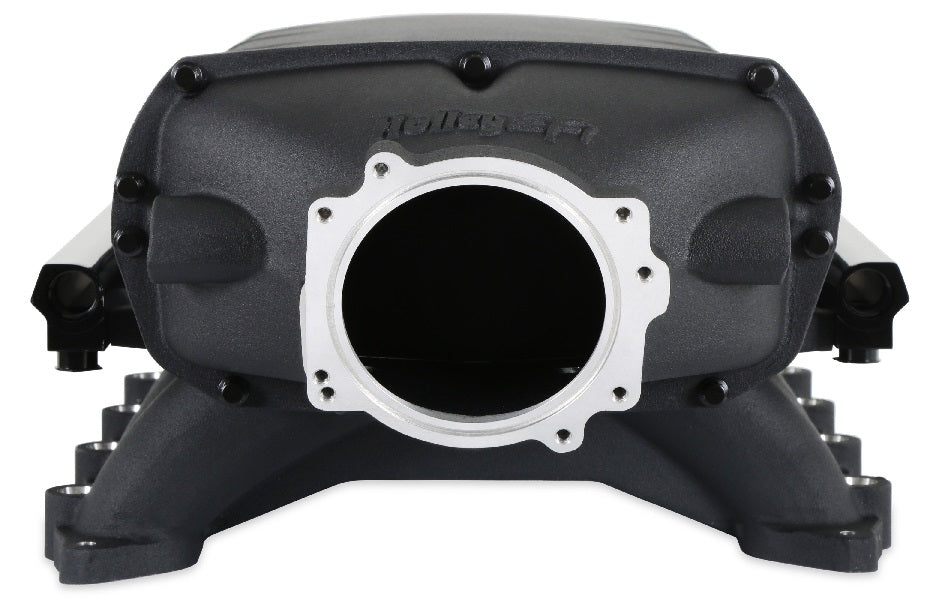

The Ultra Lo-Ram provides an additional 19.4mm front and 42.6mm rear clearance compared to the Ford Performance Cobra Jet manifold, plus clears 2015-2023 Mustang factory hoods. Offered in both round and oval throttle body configurations, with replacement front inlets for easy interchangeability. The oval inlet can accommodate up to a 150x66mm single throttle body and 93mm on the round variant. Round inlets include standard mounting provisions for GT350, GT500, and LS 4-bolt throttle bodies. 2011-2023 GT throttle bodies can be used with the optional 717-18 adaptor.

The aggressively designed Hi-Ram is constructed in a two-piece design to accommodate for air to water intercoolers and feature up to 20% more plenum volume versus Ultra Lo Rams. This manifold design is only offered in an oval throttle body configuration.

Features:

• As-cast aluminum construction: more durable for boosted applications, can be welded for modifications
• Modular design: accessible runner entries for porting, allows accessories like intercoolers and nitrous plates
• Will fit under stock hood with stock engine mounts in 2015-23 MUSTANG

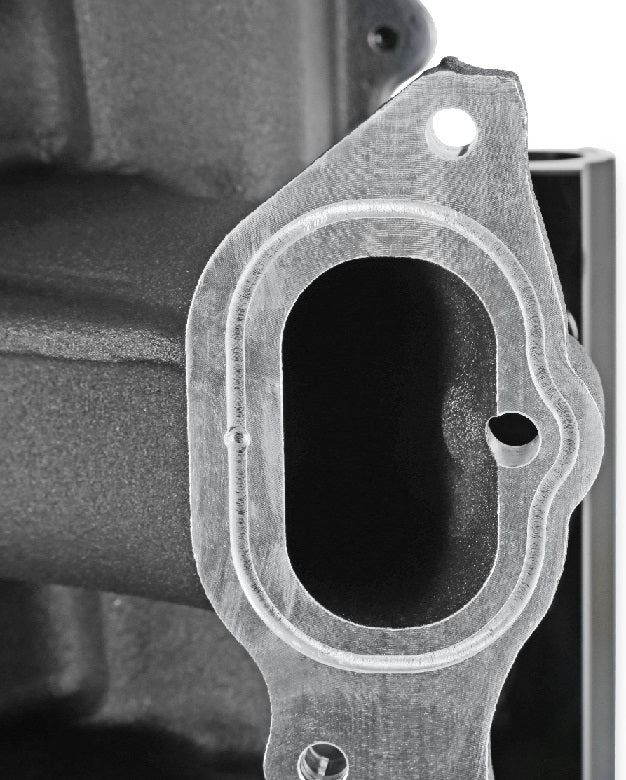

• Refined port design with streamlined injector boss for reduced turbulence without loss of flow area
• Allows a variety of throttle valves including large monoblade, 2015-20 GT350, 2007-14 GT500, 2019-23 GT500, GM LS 4 bolt, 2011-23 Ford MUSTANG GT (with optional adapter 717-18)

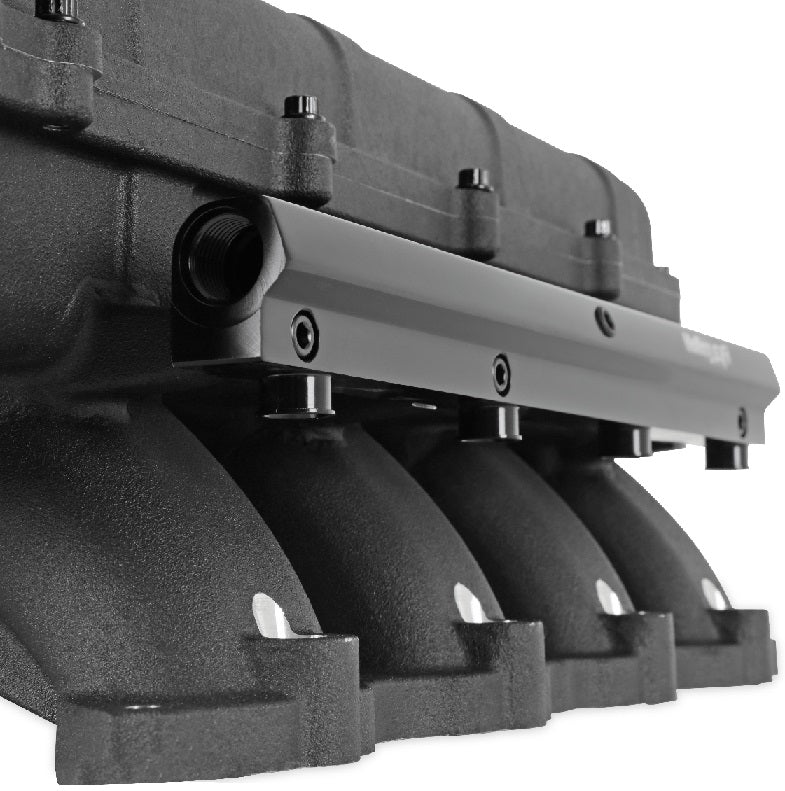

• Fuel rails with -8AN ports and dual 1/8 NPT accessory ports for gauges or Gen 3 direct injection fuel line hookup
• 300-911 and 300-912 front inlets can be interchanged between round and oval with service parts
• Two 1/8 NPT ports on all Manifolds. Two 3/8 NPT ports on all Manifolds, except 300-911 has one

Specs:

• Brand: Holley EFI
• Color: Black
• Plenum Volumes: 8.2-liters
• Engine: Ford Coyote
• Material: Aluminum
• Product Type: Intake Manifold
• Runner Length: 9.2 Inches

You can view and download the complete assembly instruction booklet here.
