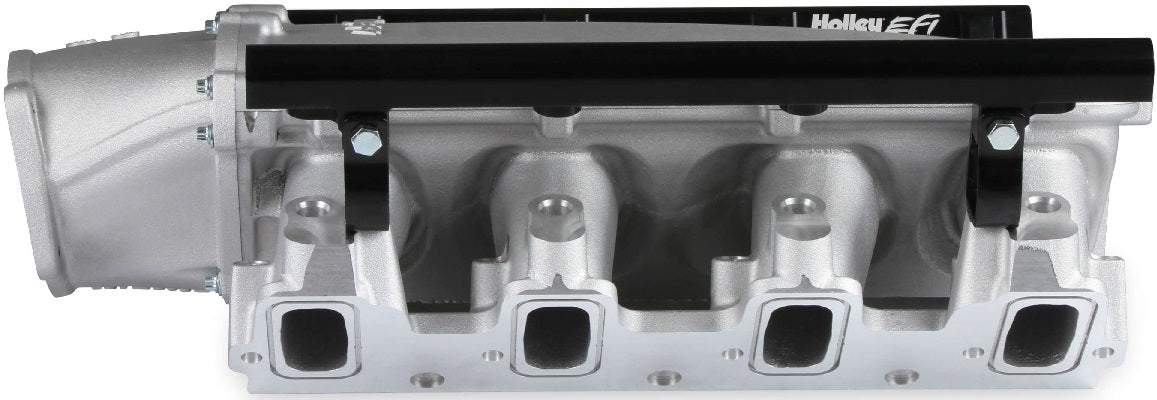

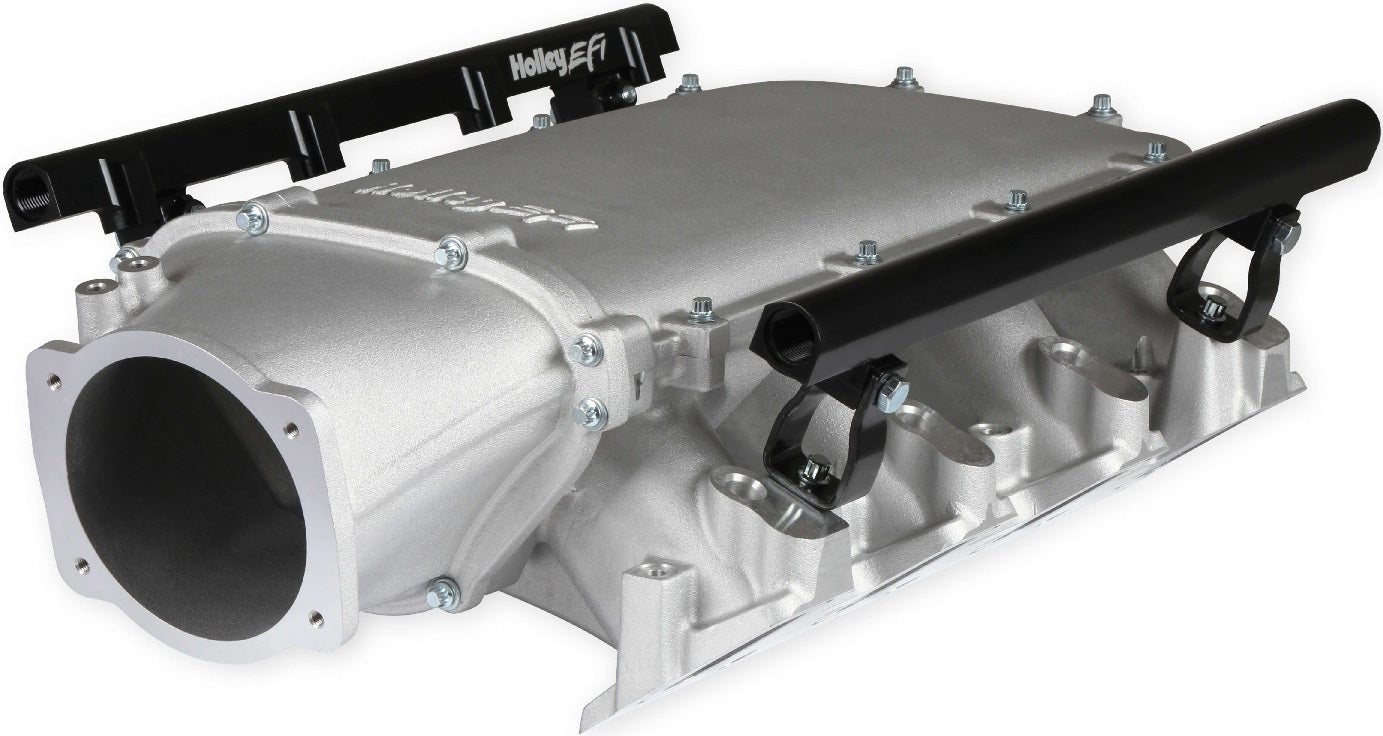

INTAKE MANIFOLD KIT,LS3,LO-RAM,FRONT FEED,SATIN

BRAND NEW HOLLEY LS3 LO-RAM MANIFOLD KIT, SINGLE INJECTOR, FRONT FEED, SILVER SATIN FINISH, COMPATIBLE WITH GM LS3/L92 ENGINES

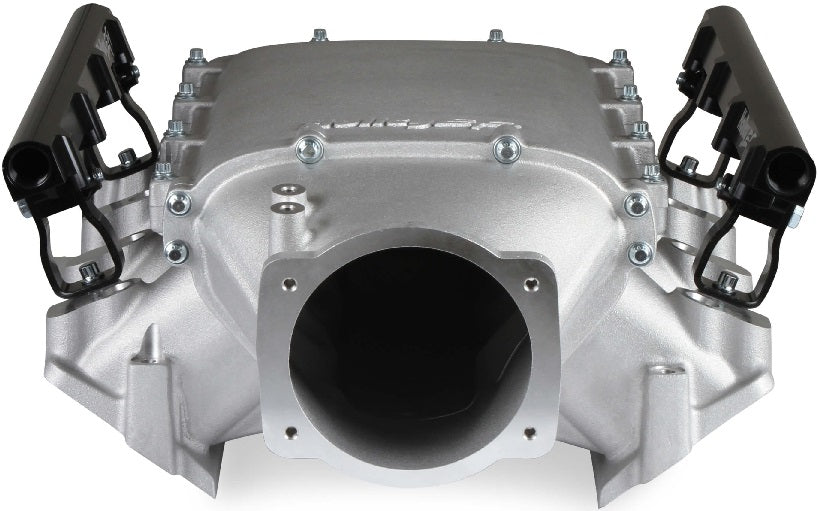

HOLLEY LS3 LO-RAM INTAKE MANIFOLD KITS ARE DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS. THESE INTAKE MANIFOLDS WILL WORK WITH OE OR AFTERMARKET CYLINDER HEADS. THE LO-RAM INTAKE MANIFOLDS ARE DESIGNED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM DEPENDING ON THE APPLICATION. THE FRONT ENTRY PLENUM FLANGE HAS A 105MM OPENING TO WORK WITH THROTTLE BODY PART #112-581 OR SIMILAR MODELS.

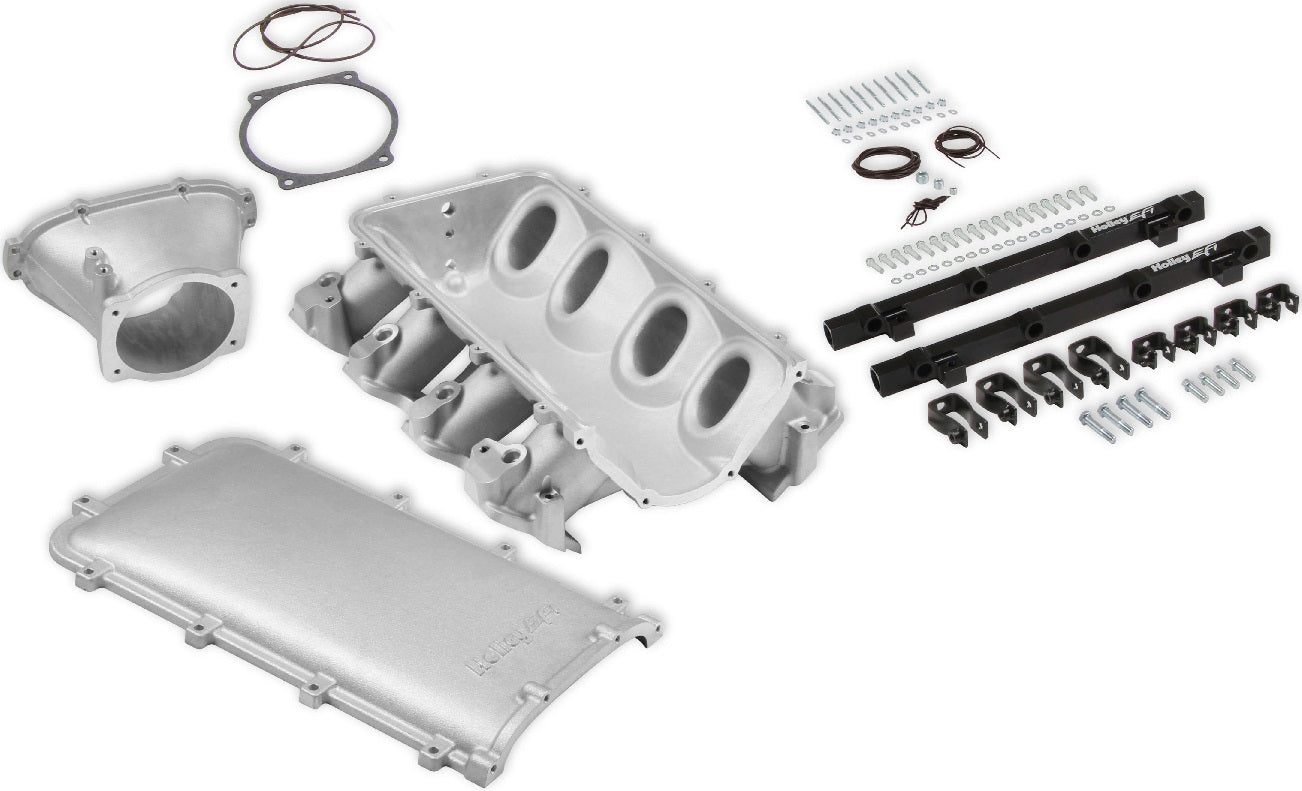

BASE INTAKE MANIFOLD IS DESIGNED WITH A LOWER OVERALL HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN FRONT-FEED CONFIGURATION. CONSTRUCTED TO PROVIDE VERY LOW PROFILE MODULAR INTAKE MANIFOLD SUITABLE FOR FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLS. THE FUEL RAIL KITS COME WITH TWO SETS OF BRACKETS. A SET FOR LONG (USUALLY STANDARD LENGTH) FUEL INJECTORS & SET FOR SHORT (SUCH AS PICO, OR LS7) FUEL INJECTORS.

NOTE: LO-RAM BASE INTAKE MANIFOLD PLENUM TOP MOUNTING FLANGE HEIGHT - 5.17"

NOTE: FRONT FEED PLENUM CONFIGURATION WITH 105MM THROTTLE BODY ADAPTER - 6.86"

FEATURES:

• DESIGNED FOR GM LS GEN III & IV ENGINES EQUIPPED WITH GM LS3/L92 CYLINDER HEADS
• ENGINEERED FOR FORCED INDUCTION (SUPERCHARGED OR TURBOCHARGED) ENGINE APPLICATIONS WITH PEAK POWER AT 7000-8000 RPM
• LOW HEIGHT TO FIT UNDER A STOCK OR MILDLY MODIFIED HOOD IN THE FRONT-FEED CONFIGURATION
• FRONT ENTRY PLENUM FLANGE ALLOWS DESIGN & FABRICATION OF SPECIAL THROTTLE BODY ADAPTERS OR INLET DUCTS FOR CUSTOM INSTALLS
• CLEARS C6 CORVETTE COWLS & HOODS WITHOUT MODIFICATION
• AVAILABLE WITH SINGLE OR DUAL INJECTOR PROVISIONS & BURST PANEL FLANGE
• HIGH VOLUME FUEL RAILS FOR 8 & 16 INJECTOR CONFIGURATIONS. MOUNTING HARDWARE INCLUDED WITH 3/4-16 O-RING PORTS (8 AN)

SPECS:

• COLOR: SILVER
• CONSTRUCTION: CAST
• ENGINE: GM LS3/L92
• FINISH: SATIN
• FLANGE STYLE: EFI
• FRONT HEIGHT: 6.86" HEIGHT WITH THROTTLE BODY ADAPTER
• FUEL SYSTEM TYPE: EFI
• INJECTOR QUANTITY: SINGLE
• INLET LOCATION: FRONT
• MANIFOLD TYPE: LO-RAM
• PRODUCT TYPE: INTAKE MANIFOLD

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD KIT HERE.
