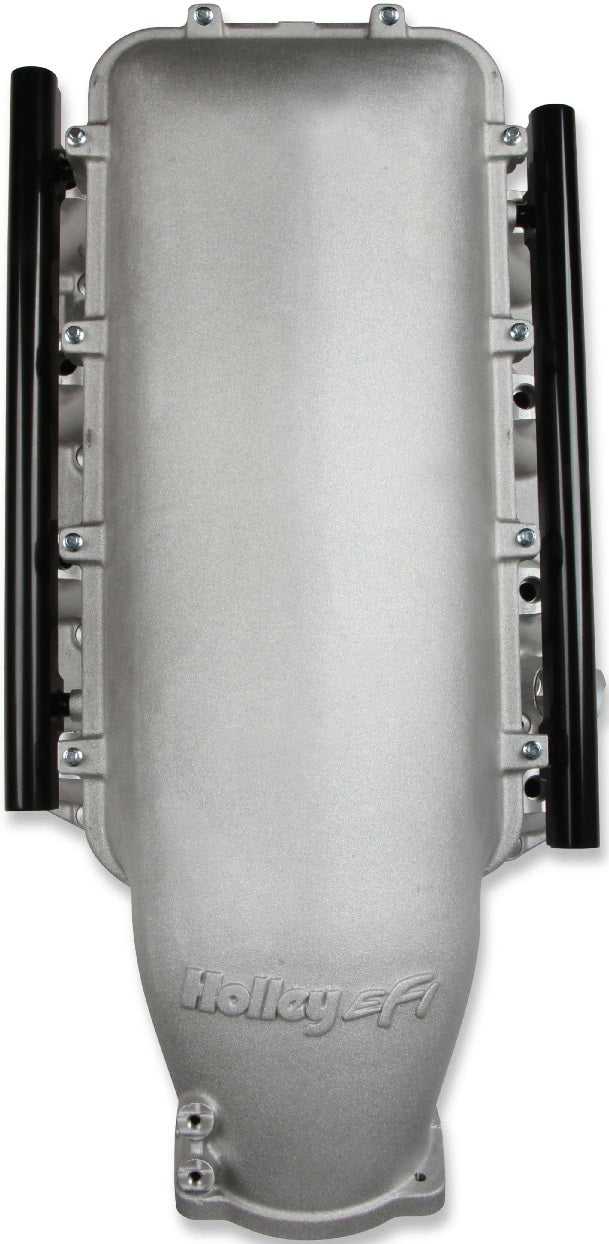

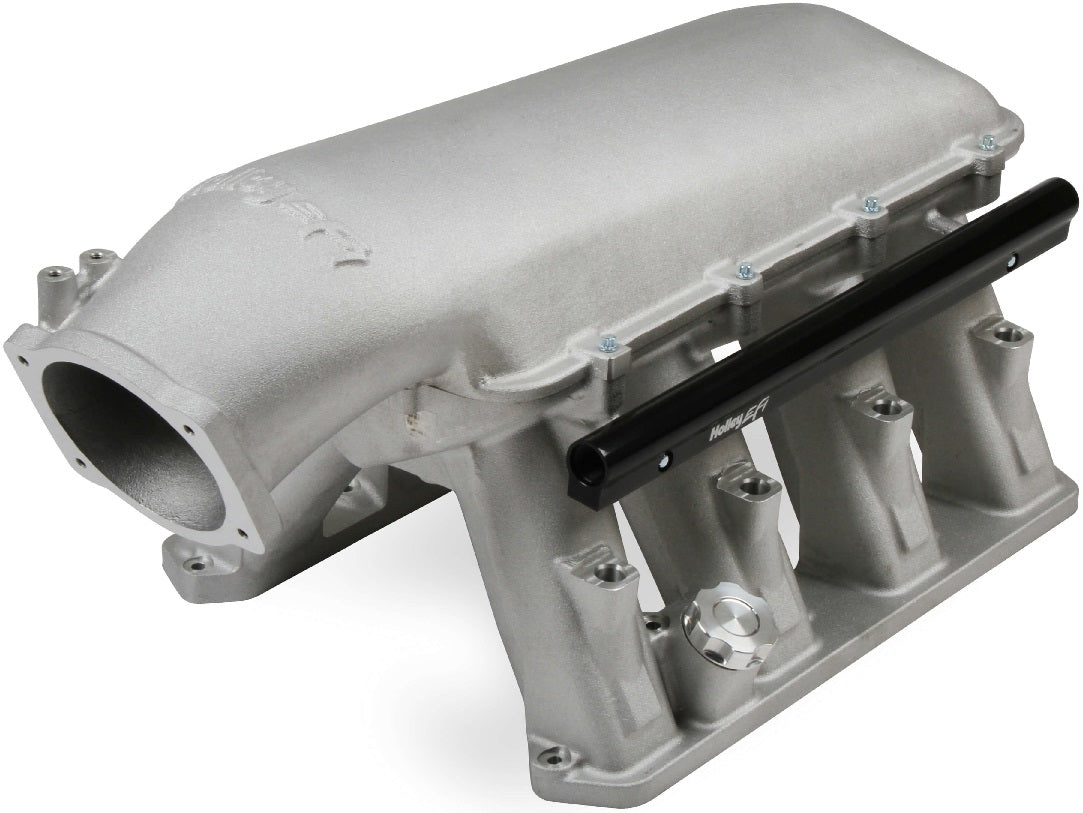

EFI HEMI HI-RAM MANIFOLD,95MM THROTTLE BODY

BRAND NEW HOLLEY GEN III HEMI EFI LS STYLE THROTTLE BODY, NATURAL CAST FINISH, COMPATIBLE WITH 2009 & UP 5.7L, 2005-2010 6.1L & 2011 & UP 6.4L ENGINES

THE HOLLEY HI-RAM INTAKE MANIFOLD IS FOR HIGH-PERFORMANCE APPLICATIONS WHERE INDUCTION SYSTEM HEIGHT IS NOT LIMITED. USING THIS HI-RAM INTAKE WITH HIGH FLOWING GEN III HEMI CYLINDER HEADS HAS OUTSTANDING POTENTIAL FOR NATURALLY ASPIRATED & FORCED INDUCTION APPLICATIONS. AGGRESSIVE, BOLD, RACE-BRED STYLING WILL MAKE BAD INTENTIONS CLEAR FOR DRAG RACE, MUSCLE CAR, MARINE, OFF-ROAD, SANDRAILS, PULLING TRUCKS, TRACK, STREET-ROD APPLICATIONS & MORE!, ADD EVEN MORE POWER TO YOUR GEN III HEMI ENGINE WITH A HOLLEY HI-RAM INTAKE MANIFOLD. THIS CAST INTAKE MANIFOLD HAS LARGE INTAKE PORTS - FITS 2009-UP 5.7L, 2005-2010 6.1L & 2011-UP 6.4L ENGINES.

INTENDED FOR USE ON NATURALLY ASPIRATED, FORCED INDUCTION, OR NITROUS ENGINES IN THE 5.7 TO 7.2+ LITER RANGE, MAX POWER AT 7500-8500 RPM.

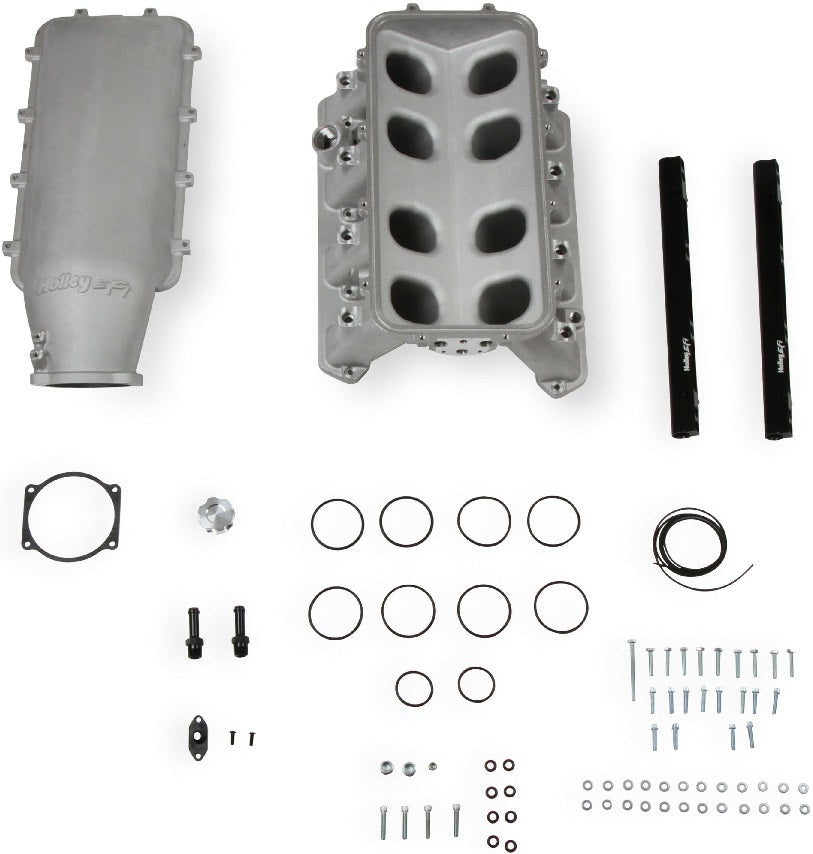

THE BASE IS DESIGNED TO BE MODULAR IN CONFIGURATION TO ACCEPT A WIDE RANGE OF EFI TOPS & TO BE ATTRACTIVE TO BUILDERS & FABRICATORS AS THE FOUNDATION FOR CUSTOM INDUCTION SYSTEMS. RUNNER LENGTH & THE TAPERED CROSS-SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS.

THE EFI FUEL RAILS ARE MACHINED FOR -8AN O-RING FITTINGS WITH PASSAGES LARGE ENOUGH TO ACCOMMODATE HIGH FUEL FLOW & DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM & COME STANDARD WITH EFI HI-RAM KITS.

NOTE: EARLY 2003-2008 5.7L ENGINES CAN USE PART #300-652 ADAPTERS TO MATCH THE SMALLER INTAKE PORTS ON THESE ENGINES.

NOTE: THE LID ON THIS INTAKE MANIFOLD IS MACHINED TO FIT AN LS STYLE THROTTLE BODY SINCE THIS ALLOWS THE USE A CABLE OPERATED THROTTLE BODY (AT A REASONABLE COST).

NOTE: THE 80MM GEN III HEMI THROTTLE BODY (DRIVE BY WIRE) CAN BE USED ON THIS INTAKE - USE WITH PART #300-660 ADAPTER PLATE.

NOTE: THE 92MM HELLCAT GEN III HEMI THROTTLE BODY (DRIVE BY WIRE) CAN BE USED ON THIS INTAKE - USE WITH PART #300-661 ADAPTER PLATE.

FEATURES:

• FITS GEN III HEMI ENGINES WITH LARGE INTAKE PORTS (1.70" HEIGHT X 1.88" WIDE) - FITS 2009-UP 5.7L, 2005-2010 6.1L, 2011-UP 6.4L)
• CAST ALUMINUM CONSTRUCTION W/ NATURAL SATIN FINISH
• RUNNER LENGTH & THE TAPERED CROSS SECTION DESIGNED TO PERFORM WELL FOR A WIDE RANGE OF ENGINE CONFIGURATIONS
• INCLUDES EFI FUEL RAILS W/ -8 AN O-RING FITTINGS & LARGE PASSAGES TO ACCOMMODATE HIGH FUEL FLOW & DAMPEN PRESSURE PULSATIONS IN THE FUEL SYSTEM
• WORKS WITH GEN III HEMI INJECTORS & BOSCH EV-1 STYLE INJECTORS
• O-RING SEAL TO HEAD-LARGE RETAINED O-RINGS OFFER SUPERIOR ORIGINAL EQUIPMENT (OE) STYLE SEALING & ARE EASY TO REPLACE
• BILLET OIL FILL CAP-ATTRACTIVE LOW PROFILE DESIGN
• POSITIVE CRANKCASE VENTILATION (PVC) PORTS WITH ADAPTER FITTINGS
• OVERALL HEIGHT: 11.59"
• PORT FOR OE STYLE MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR (1 OR 2 BAR)
• CAST-IN PADS FOR ADDING NITROUS NOZZLES

SPECS:

• BRAND: HOLLEY EFI
• COLOR: NATURAL
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: GEN III HEMI
• FINISH: SATIN
• FLANGE STYLE: EFI
• FRONT HEIGHT: 11.59"
• FUEL SYSTEM TYPE: EFI
• INJECTOR STYLE PROVISION: EV-1 | GEN III HEMI
• INLET SIZE: 95MM
• MANIFOLD TYPE: HI-RAM
• MATERIAL: ALUMINUM
• PORT SIZE: 1.70" X 1.88"
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 10.35"
• RPM POWER BAND: 1500-7000
• RUNNER LENGTH: 6.65"
• STYLE: EFI
• THROTTLE BORE: 95MM
• TYPE OF COMPONENT: INTAKE MANIFOLD
• VACUUM PORTS: (2) 3/8" NPT & (1) 1/4" NPT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MANIFOLD HERE.
