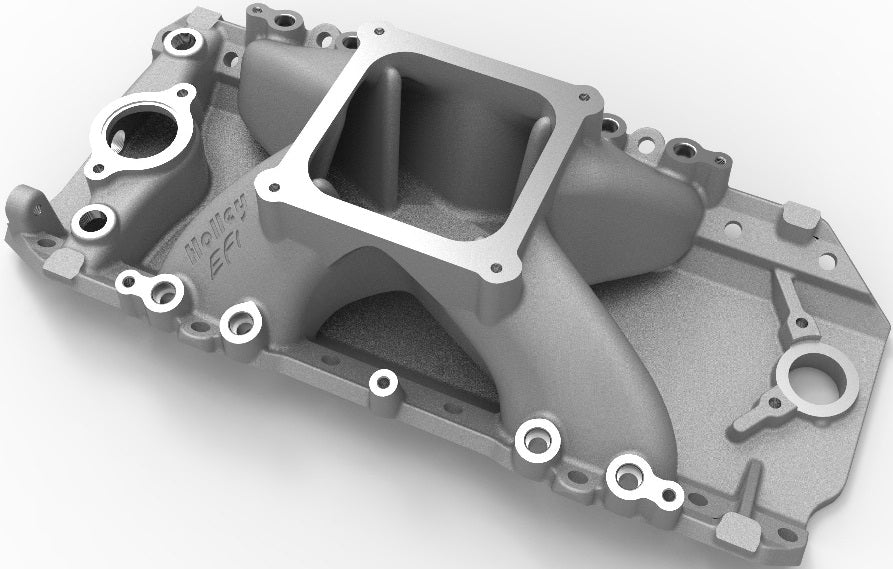

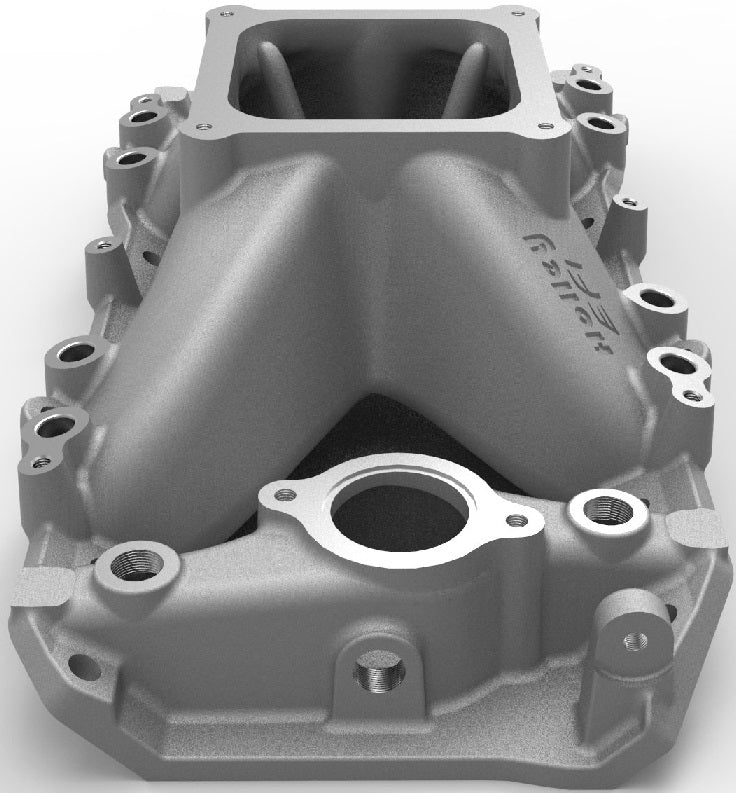

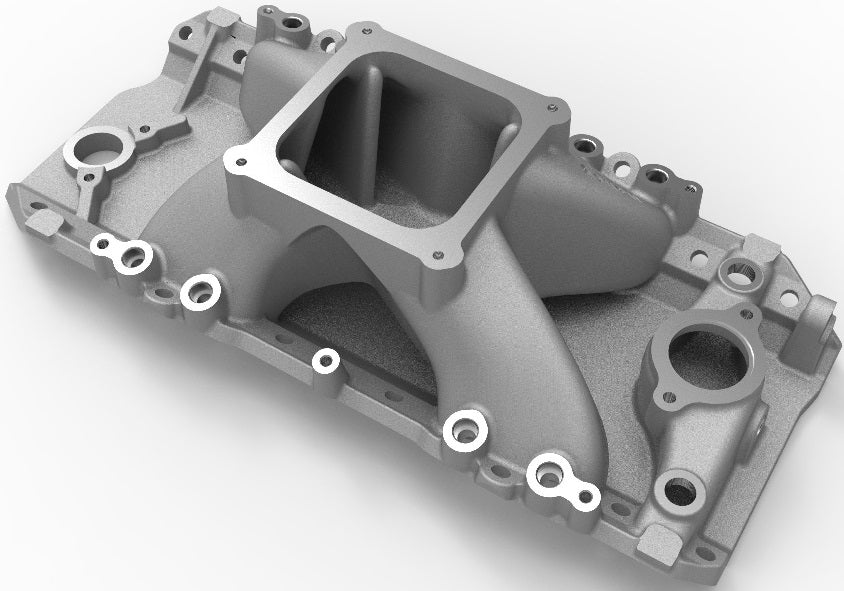

INTAKE MANIFOLD,BBC,OVAL,SINGLE-PLANE,4500,FR,SATIN

BRAND NEW HOLLEY EFI INTAKE MANIFOLD, SILVER SATIN FINISH, 4500 FLANGE, 396, 402, 427, 454, 502, COMPATIBLE WITH BIG BLOCK CHEVY V8 WITH OVAL PORT HEADS

HOLLEY EFI IS EXCITED TO LAUNCH FOUR NEW MULTI-POINT FUEL INJECTION INTAKE MANIFOLDS FOR THE BIG BLOCK CHEVY. THESE NEW INTAKES ARE AVAILABLE TO FIT OVAL OR RECTANGULAR PORT HEADS, AND 4150 OR 4500 STYLE THROTTLE BODIES. THESE INTAKES ARE IDEAL FOR CONVERTING YOUR BIG BLOCK HIGH PERFORMANCE OR RACING ENGINE FROM CARBURETION TO FUEL INJECTION.

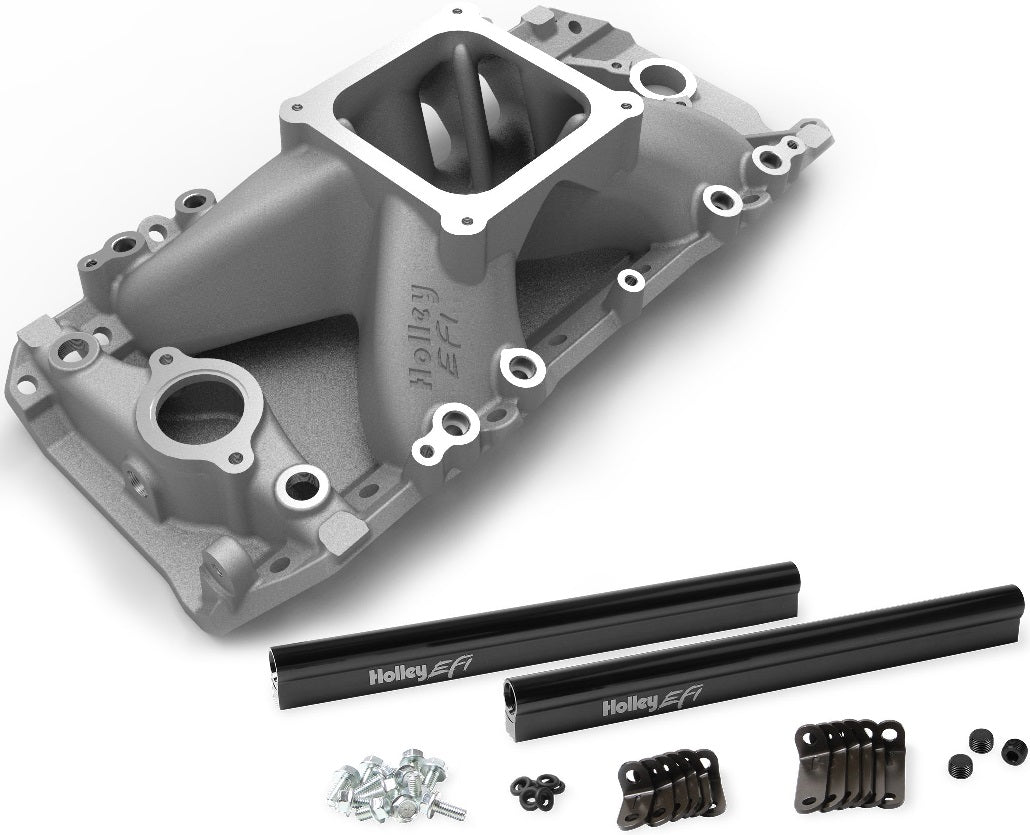

THESE INTAKE MANIFOLDS WERE COMPUTER DESIGNED AND DYNO PROVEN TO PRODUCE MORE HORSE POWER AND TORQUE THAN OTHER EFI MANIFOLDS. EACH MANIFOLD PACKAGE INCLUDES ANODIZED AND LASER ETCHED FUEL RAILS, AND TWO SETS OF MOUNTING BRACKETS (BRACKETS ALLOW USE OF 1.48" OR 2.56" O-RING TO O-RING INJECTOR LENGTHS).

FEATURES:

• OPEN PLENUM/SINGLE PLANE DESIGN
• NO EGR PROVISIONS
• 3000-7500 RPM POWER BAND
• 4500 CARBURETOR MOUNTING FLANGE
• INCLUDES FUEL RAILS AND MOUNTING BRACKETS
• COMPATIBLE WITH MODERN LARGER CUBIC INCH BIG BLOCK CHEVY RACE ENGINES
• OVAL PORT DIMENSIONS: 1.87" HIGH X 1.60" WIDE
• HEIGHT: FRONT 5.96", REAR 5.96"

SPECS:

• BRAND: HOLLEY EFI
• CONSTRUCTION: CAST
• ENGINE: CHEVY BIG BLOCK V8
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: EFI INTAKE MANIFOLD
• RPM POWER BAND: 3000-7500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
